From Thuringia to the desert state of Kuwait

From Thuringia to the desert state of Kuwait

First GEDA building maintenance unit in Kuwait city in use

At the beginning of the year a GEDA building maintenance unit, Type GEDA-FBA F-SO-3-S, made its way from Thuringia to the Emirate Kuwait, nearly 4000 kms away as the crow flies. The building maintenance unit was developed and manufactured in Gera, where a branch of the Bavarian construction company GEDA-Dechentreiter GmbH & Co.KG is located.


At present in the growing business centre of Sharq city in Kuwait city, two architectural, very impressive high-rise complexes are being built. Both buildings are named after the national day and immediately subsequent liberation day of Kuwait: 25 / 26 February Towers. With 37 floors (25 February Tower) and 32 floors (26 February Tower), both towers will be an eye-catcher of the skyline of Kuwait city.

The main focus of the investors is to apply advanced technologies. Therefore, it is no wonder that the company GEDA-Dechentreiter GmbH & Co.KG was commissioned to supply the appropriate building maintenance unit "made in Germany".

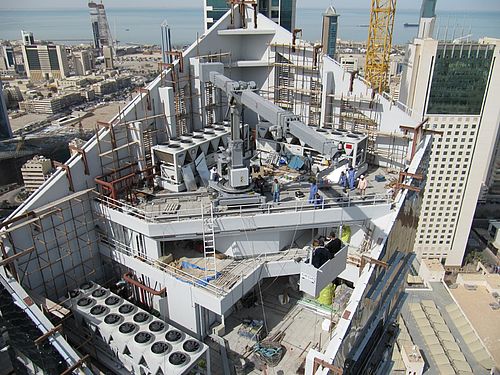

Installed on a 160 m high building

During the construction phase a crane placed the building maintenance unit weighing 26 tons on the roof of the 160 m tall building. The machine is permanently attached to the structure and is already used at the end of the construction phase to complete the facade. After completion of the construction work, the unit can be used for cleaning the facade and repair and
maintenance tasks. Two persons and the necessary equipment can be transported in the cradle, with an overall weight of up to 240 kg.

Telescoping and luffing

The development department at GEDA was confronted by a particular challenge during planning of the project: A requirement of the investors was that all areas of the structure must be accessible using the telescopic and luffing jib, despite the extraordinary structure of the building and roof – of course, no problem for GEDA!

The unit moves on rails installed on the roof of the building. So that the unit can depart from its park position at the start of work, it is extended 2 m vertically by a stand. For this, a rack and pinion drive is used. The maximum length of the jib is 15 m: the 8 m long arm can also be extended using a rack and pinion drive by a further 7 m. Because of the inclination of the glass roof, the jib must be luffed by 27°. This is provided by a spindle drive. The clou is that the unit is virtually "invisible" in the park position and, thus, does not in any way impair the overall architectural image.

The rich desert state of Kuwait on the Persian Golf is now even richer through a high-tech building maintenance unit made in Germany. "We can proudly purport that our products have found their way to the Near East and, in the future, will also be used for the most diverse, demanding objects", stated Andreas Ewert, GEDA Project Manager for Kuwait.
