GEDA 2500 Z/ZP

Compare

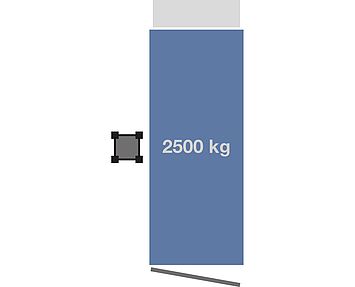

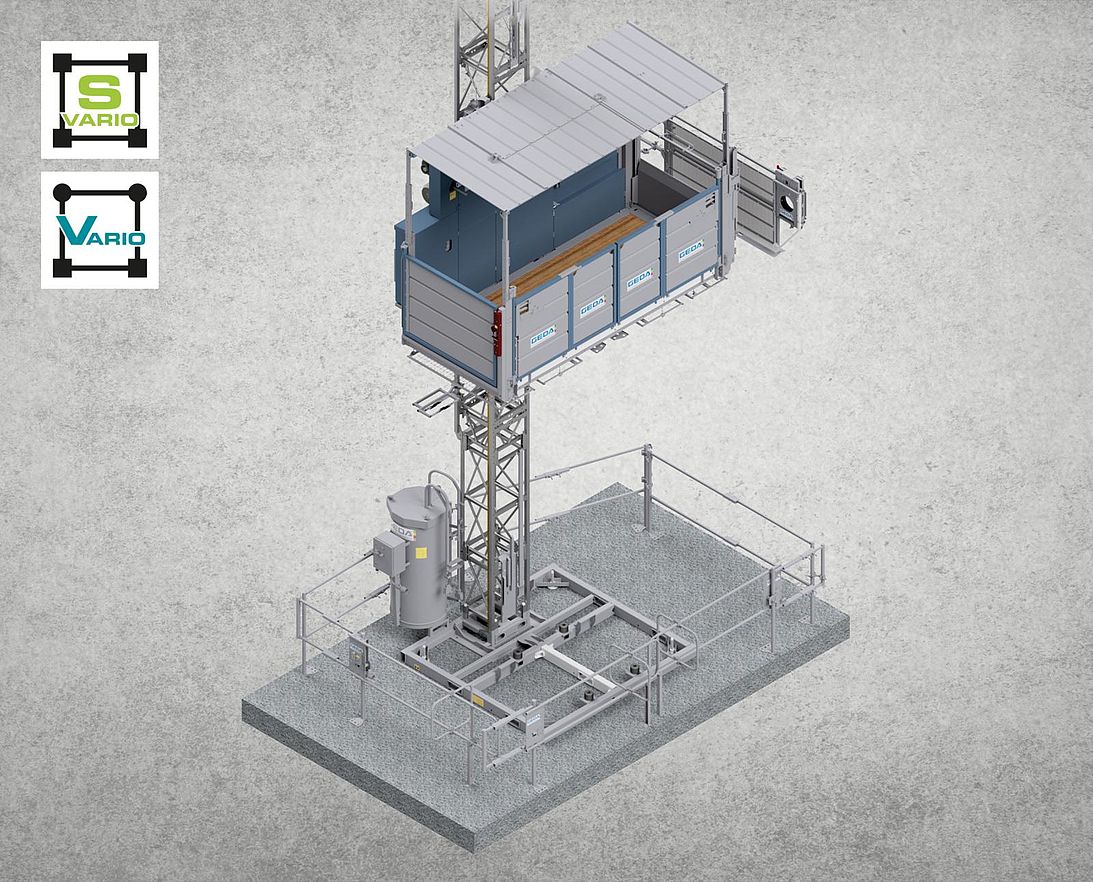

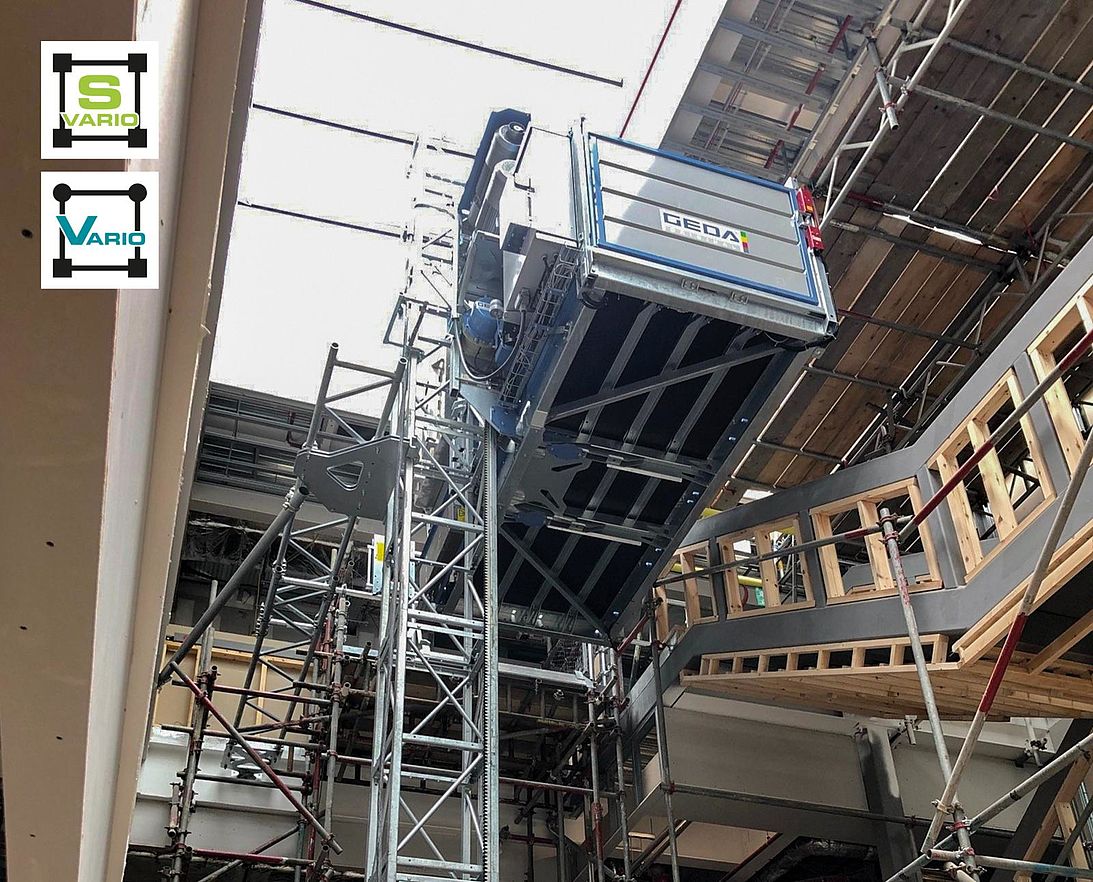

The GEDA 2500 Z/ZP transport platform is the new powerhouse from GEDA. Thanks to the innovative GEDA SVARIO-MAST system, the transport platform is guided on only one mast and has a load capacity of 2500 kg. This makes it easy to transport heavy construction materials to their place of use up to a height of 200 m.

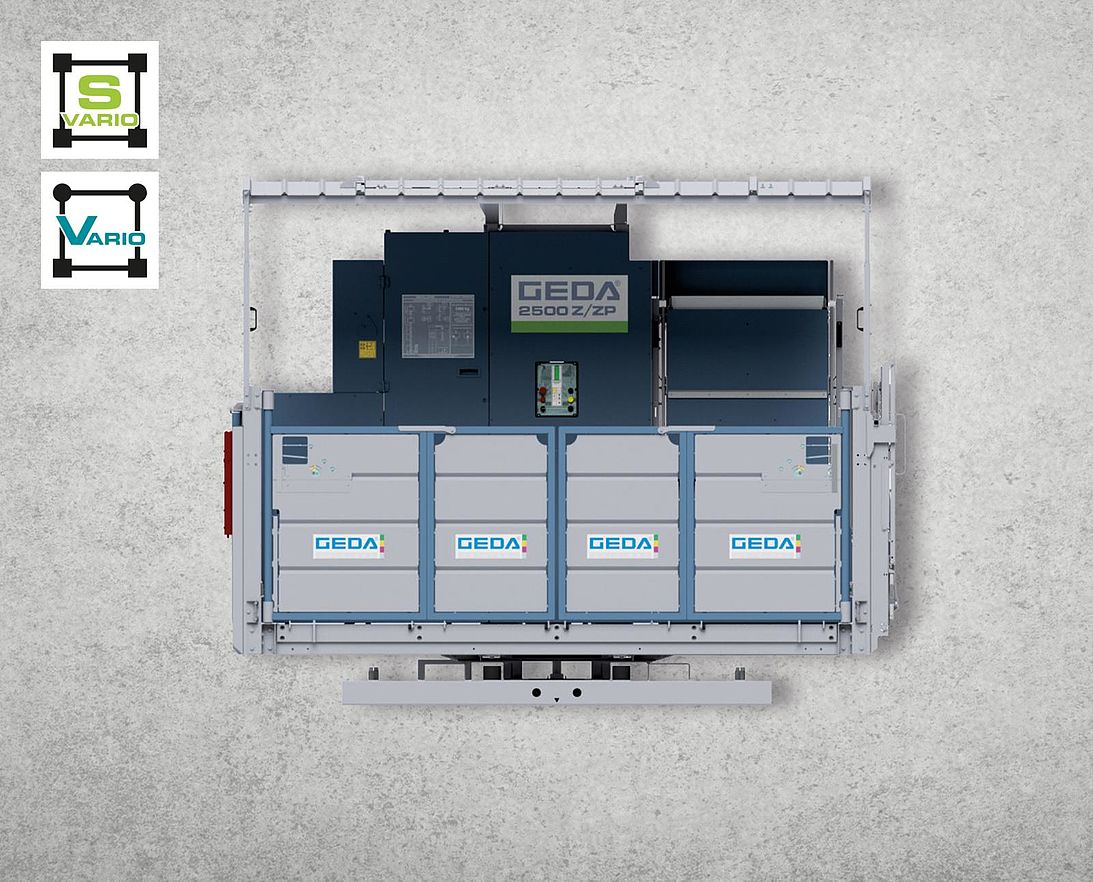

The comfortable and large platform with dimensions of 1.45 m x 3.55 m can transport construction materials and up to 7 passengers quickly and safely. The extremely high platform (2.60 m) makes transporting bulky goods easy. For loading the platform on a lorry, the roof can simply be lowered to 2.10 m.

With two separate controls, the GEDA 2500 Z/ZP can be used simply as a material hoist with a lifting speed of 40 m/min or as a transport platform for passengers and materials with a lifting speed of 12 m/min.

The GEDA 2500 Z/ZP expands the versatile transport platform range and offers another solution for the individual conditions at your construction site.









Logo GEDA Central
GEDA CENTRAL is an intelligent online-platform for digital services for your GEDA hoists
Learn more Register



Technical Data Refresh
Cargo Persons and material
Mast system GEDA SVARIO-MAST / GEDA VARIO-MAST
Load capacity (material) 2500 kg
Load capacity (persons) 7 Persons
Lifting height 200 m
Lifting speed 12 m/min / 40 m/min
Power supply 25 kW / 380 V - 480 V / 50 Hz - 60 Hz / 32 A - 63 A
Platform dimension 1.45 m x 3.55 m x 1.1 m / 2.6 m
default_grey
Product variants for each application
Appropriate accessories
prev
next
Roof line blue
Roof
Electric module line blue
Electric module
Landing level safety gate "Flexy" line blue
Landing level safety gate "Flexy"
Anti-smashing-device line blue
Anti-smashing-device
