GEDA 500 Z DUO

Compare

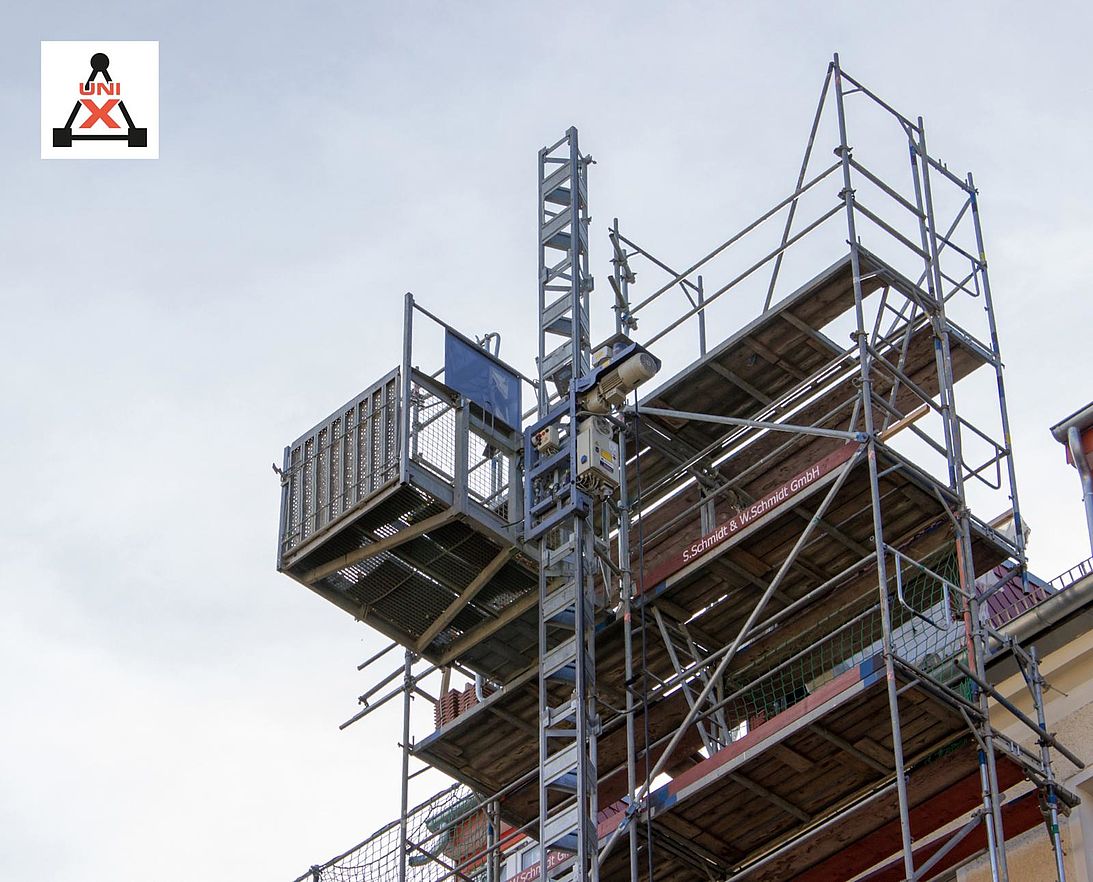

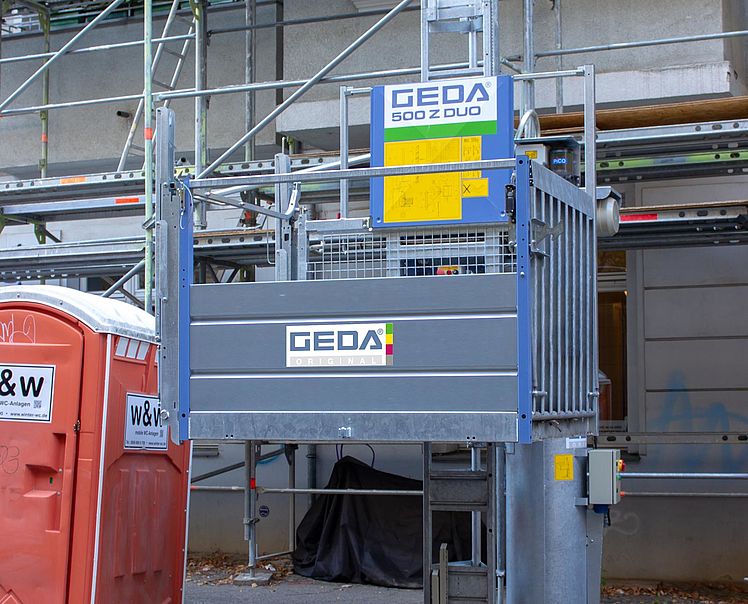

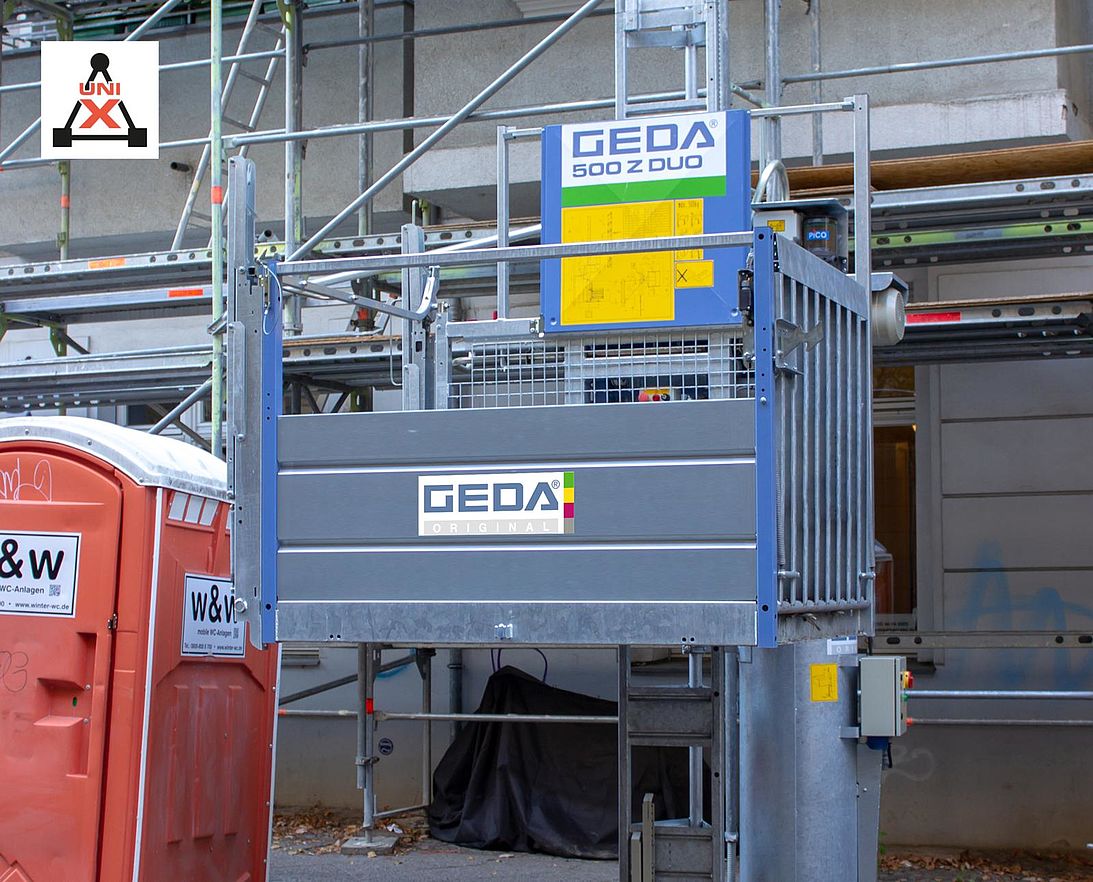

The GEDA 500 Z DUO material hoist differs from its "little brother", the GEDA 500 Z, in one additional feature: The platform of the 500 Z DUO can be used as a move-through platform and as a swivel platform. This function means that the material hoist can be adapted to the individual situation at the construction site even better.

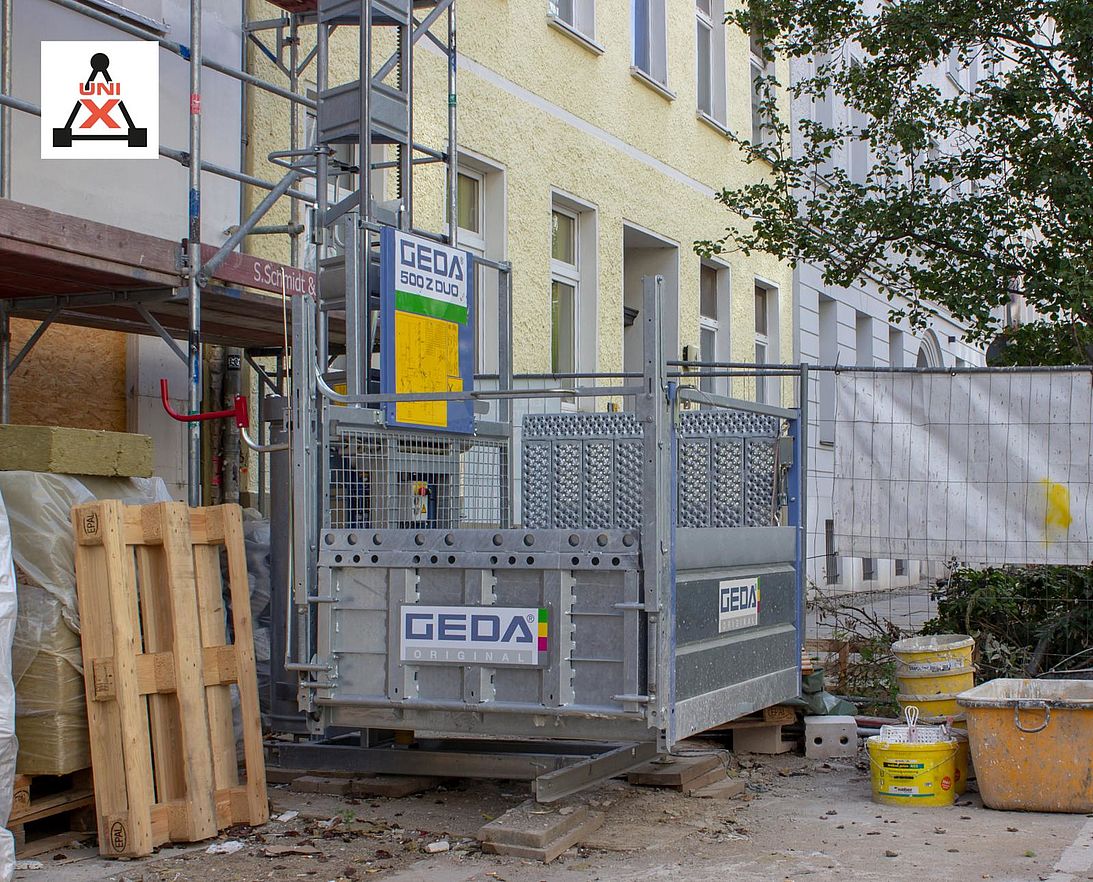

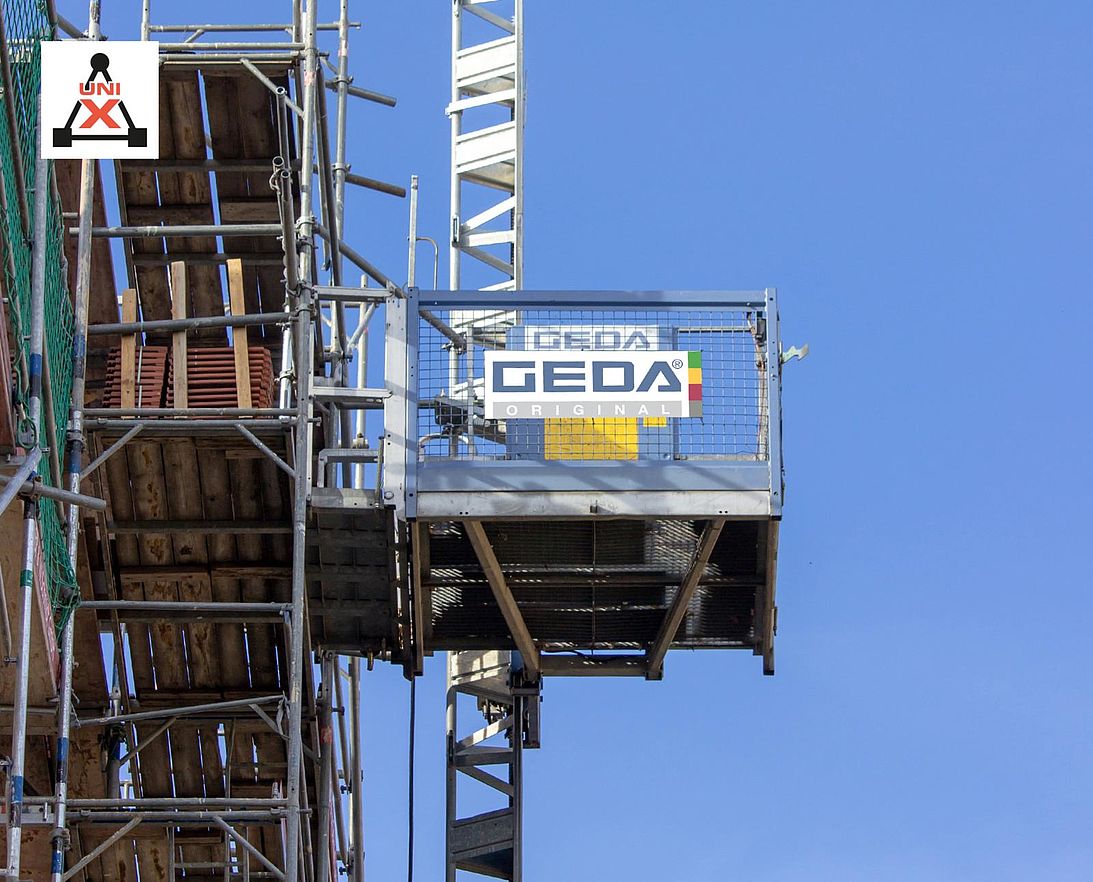

The convenient loading and unloading ramp ensures comfortable access to the platform, which is approved for transporting up to 500 kg. Once at the landing level, the car of the GEDA 500 Z DUO, which can be swivelled by 90 degrees, allows a safe transition and comfortable loading and unloading. At the ground station, items can be loaded parallel to the building, which saves space.

A patented single-axle trailer for transport and for automatic set-down and loading of the hoist is available from the accessories range.









Logo GEDA Central
GEDA CENTRAL is an intelligent online-platform for digital services for your GEDA hoists
Learn more Register

prev
next
Product highlights
GEDA UNI-X-MAST System

An ingenious system: can be used on all GEDA rack and pinion hoists from 300 kg to 2,200 kg load capacity.

GEDA POWER GREASE

The GEDA POWER GREASE range comprises four lubricants which cover all GEDA machine types, applications and temperature ranges.



Technical Data Refresh
Cargo Material
Mast system GEDA UNI-X-MAST
Load capacity (material) 500 kg
Lifting height 100 m
Lifting speed 30 m/min
Power supply 5.5 kW / 400 V / 50 Hz / 16 A
Platform dimension 1.4 m x 1.6 m x 1.1 m / 1.8 m
