GEDA 500 Z F

Compare

Powerful and efficient—at low and great lifting heights: The GEDA 500 Z F combines the advantages of a compact material hoist with the flexible operation possibilities of a free-standing construction hoist.

The convenient move-through platform and the ability to operate without anchors up to heights of 9.5 m allow the GEDA 500 Z F to be optimally adjusted to the conditions on the respective construction site.


prev
next
Product highlights
GEDA UNI-X-MAST System

An ingenious system: can be used on all GEDA rack and pinion hoists from 300 kg to 2,200 kg load capacity.

GEDA Corrosion Protection

The new GEDA all-round protection provides protection from corrosion and its consequential damage, maintains the functionality of components and extends their operating life.

GEDA POWER GREASE

The GEDA POWER GREASE range comprises four lubricants which cover all GEDA machine types, applications and temperature ranges.

6.5 free-standing

No anchoring? - No problem! 6.5 m free-standing lifting height without additional weights in the foot section.

9.5 free-standing

No anchoring? - No problem! 9.5 m free-standing lifting height with 300 kg additional weights in the foot section.



Technical Data Refresh
Cargo Material
Mast system GEDA UNI-X-MAST
Load capacity (material) 500 kg
Lifting height 100 m
Lifting speed 24 m/min
Power supply 5.5 kW / 400 V / 50 Hz / 16 A
Platform dimension 1.4 m x 1.6 m x 1.1 m / 1.8 m
Appropriate accessories
prev
next
Trailing cable guide line blue
Trailing cable guide
Special frame line blue
Special frame
Set of extension tubes line blue
Set of extension tubes
Landing level safety gate "Comfort" line blue
Landing level safety gate "Comfort"
Landing level safety gate "Standard" line blue
Landing level safety gate "Standard"
Landing level safety gate "Standard-Basic" line blue
Landing level safety gate "Standard-Basic"
Extension cord 20 m line blue
Extension cord 20 m
Stop bar line blue
Stop bar
GEDA UNI-X-MAST line blue
GEDA UNI-X-MAST
Set of mast ties line blue
Set of mast ties
Cable bin cover line blue
Cable bin cover
Automatic lubrication system line blue
Automatic lubrication system
GEDA POWER GREASE 1000 Standard cartridge line blue
GEDA POWER GREASE 1000 Standard cartridge
Manual grease gun line blue
Manual grease gun
Refill gun line blue
Refill gun
Control for drop test line blue
Control for drop test
Low temperature limitation line blue
Low temperature limitation
Floor and wall tie line blue
Floor and wall tie
Jack ring for crane line blue
Jack ring for crane
Manual control line blue
Manual control
Electric module line blue
Electric module
Landing pre-selection control line blue

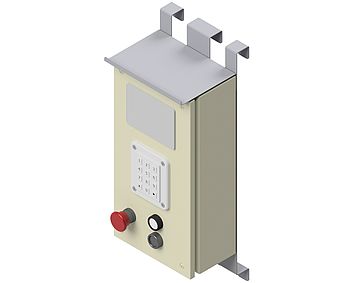

Landing pre-selection control
GEDA POWER GREASE 1000 Initial lubrication set line blue
GEDA POWER GREASE 1000 Initial lubrication set
Base enclosure line blue
Base enclosure
Ballast weight line blue
Ballast weight
Aluminium bottom plate line blue
Aluminium bottom plate
Standpipe line blue
Standpipe
Cable bin 25 m line blue
Cable bin 25 m
Cable bin 50 m line blue
Cable bin 50 m
Cable bin 75 m line blue
Cable bin 75 m
Cable bin 100 m line blue
Cable bin 100 m
