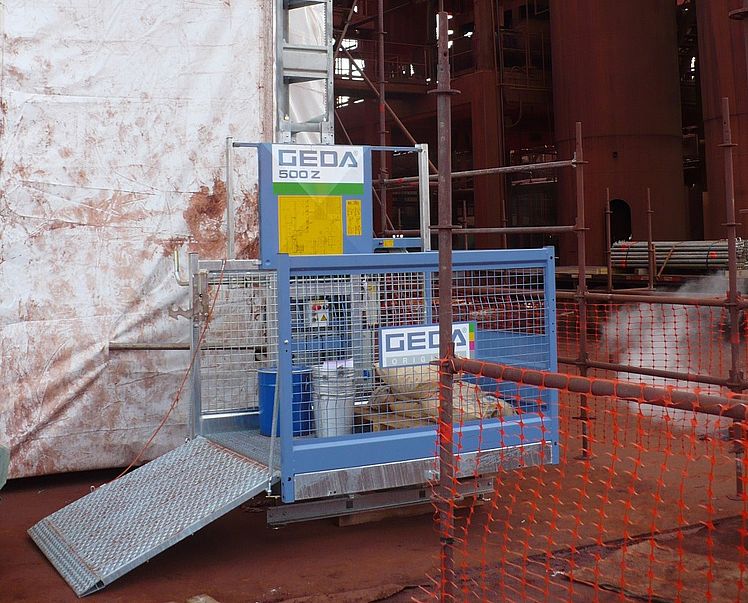

GEDA 500 Z


These rack and pinion hoists with steel segment masts have earned their good reputation over the years being a reliable partner for construction workers.

Their spacious load platforms offer enough space for two wheelbarrows or large pallets as well as fixing devices for bulky construction materials. The steel mast system allows for easy assembly from the platform up to a height of 100m.

Safe unloading of the transported materials is granted by the platform's being able to be turned by 90°. Loading at the base unit is carried out parallel to the building. This can be very space saving and a decisive feature on narrow construction sites!

A patented mono-axis trailer for transporting and automatically putting down/ loading the hoist is offered as accessory.

Product highlights

An ingenious system: can be used on all GEDA rack and pinion hoists from 300 kg to 2,000 kg load capacity.

Technical Data Refresh
Cargo Material
Mast system GEDA UNI-MAST
Load capacity (material) 500 kg
Lifting height 100 m
Lifting speed 30 m/min
Power supply 5.5 kW / 400 V / 50 Hz / 16 A
Platform dimension 1.4 m x 1.6 m x 1.1 m / 1.8 m
Appropriate accessories
Cable bin 25 m line blue
Cable bin 25 m
Cable bin 50 m line blue
Cable bin 50 m
Cable bin 75 m line blue
Cable bin 75 m
Cable bin 100 m line blue
Cable bin 100 m
Set of mast ties line blue
Set of mast ties
GEDA UNI-MAST line blue
Trailing cable guide line blue
Trailing cable guide
Special frame line blue
Special frame
Uniaxial trailer line blue
Uniaxial trailer
Ball type coupling for cars line blue
Ball type coupling for cars
Ring type coupling for lorries line blue
Ring type coupling for lorries
Set of extension tubes line blue
Set of extension tubes
Limit switch operating plate line blue
Limit switch operating plate
Automatic lubrication system line blue
Automatic lubrication system
Hour meter line blue
Hour meter
Cable bin cover line blue
Cable bin cover

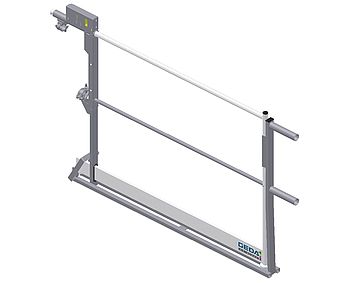

Landing level safety gate "ECO +" line blue
Landing level safety gate "ECO +"
Floor and wall tie line blue
Floor and wall tie
