GEDA LIFT

Inclined Hoist – Reliability and Secure Transport made by GEDA


Inclined hoists from GEDA have been produced for decades. Their reliability makes them a favourite transport device for roofers and construction workers. These aluminium hoists have already proved their many ways of application for various kinds of use thousands of times. They are easy, quick and reliable transport units for interior work, refurbishment or repairs on flat roof buildings. GEDA can offer the appropriate load receptacle for any kind of building material and any kind of use. Save time and strength by using a GEDA inclined hoist!

Compare


Fulfilling Various Tasks with GEDA’s Inclined Hoists

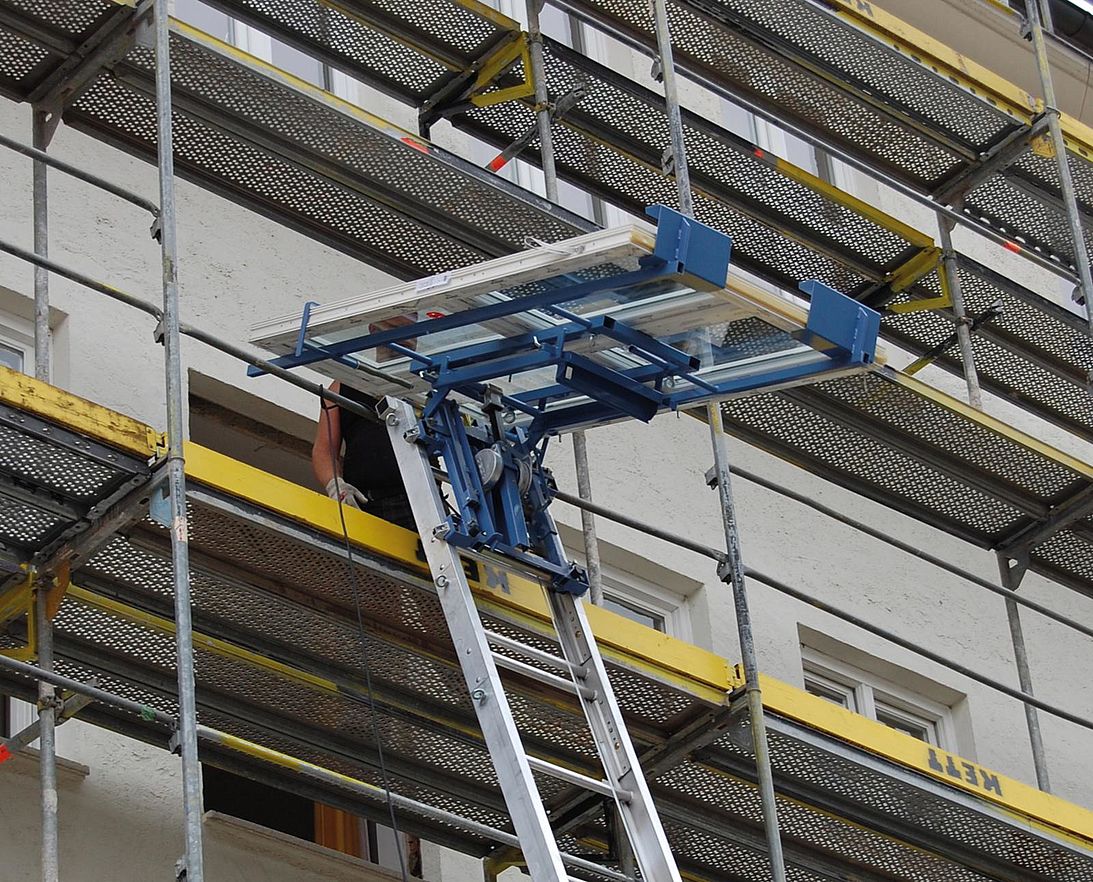

Transportation elevators are useful for every work – indoor and outdoor. The ladder systems can be used to transport all kinds of materials to the upper levels of a building. They enable a maximum height of 19 m and lifting speeds between 19 m/min and 38 m/min. For moving furniture, interior constructions, façade renovations or the restructuring of flat roofs, inclined lifts offer the perfect assistance. Due to the movable end, the transportation goods can easily be unloaded from the platform. This prevents back pain and facilitates the work.

Inclined Elevator – Easy Assembly in no Time

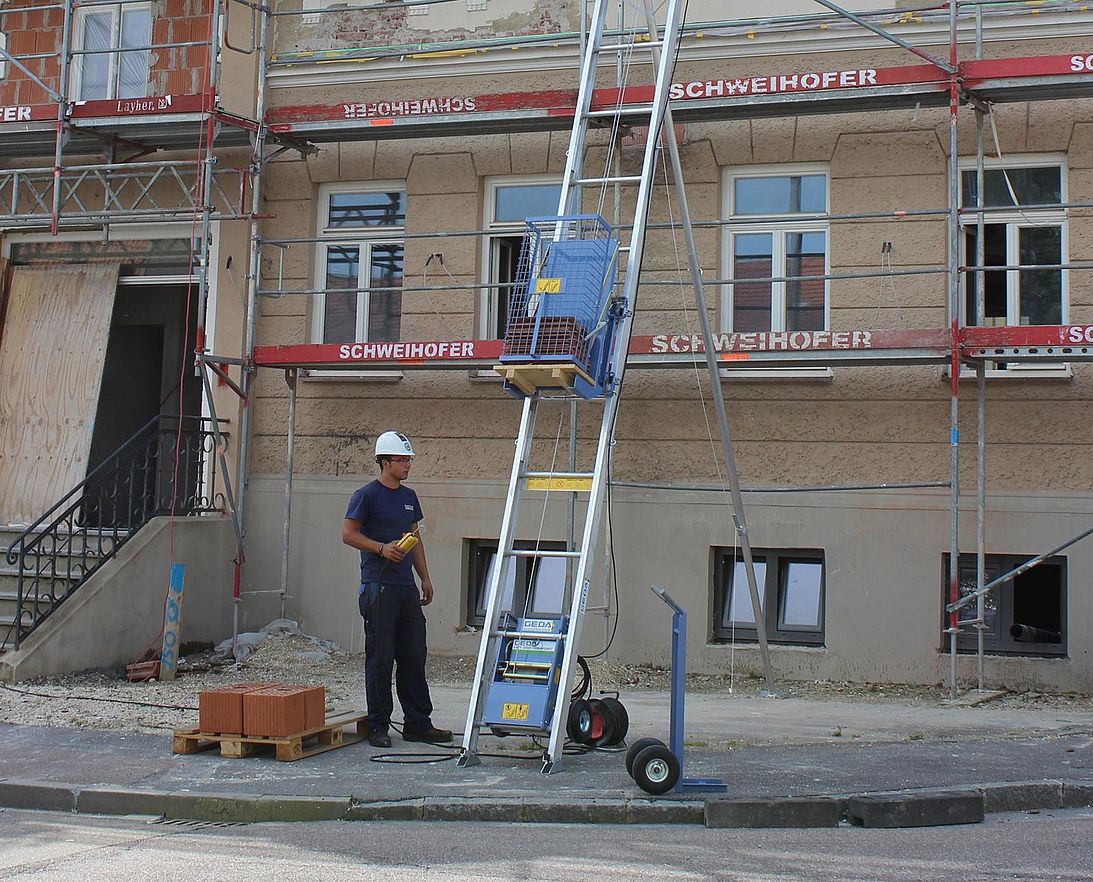

The construction of GEDA’s inclined hoists is so easy that even unschooled workers can perform the assembly. With the help of massive threaded bolts, the ladder elements are assembled on the ground – without any tools. First the rails for the inclined elevator are pushed on the ladder profile. As soon as the ladder system is mounted on the scaffolding or the façade, the hoist is set on top of the profile. A support beneath the ladder secures the weight of the elevator and the transportation goods. Thanks to the various load handling attachments, every material can be moved.

GEDA’s Inclined Hoist for Extreme Loads


The carrying capacity for materials depends on the design of the aluminium ladder elements, inclination and rail length. For the ladder profile you can chose between a possible load capacity of 140 kg to 200 kg and an extra-strong system with a workload of 200 kg to 250 kg. Due to the functional load handling attachment the transportation of lose materials or bulky construction elements has never been so easy – this feature enables a flexible use on every construction site.

Accessories for the Inclined Lift by GEDA


For flexible working conditions, variable devices are necessary. Therefore, GEDA provides inclined hoists with several devices and equipment for transporting distinct kinds of material:

  • Brick platform with foldable protective grating
  • Brick barrow with palette
  • Universal platform with bucket carrier
  • Universal platform with side protection
  • Tilting carriage with tipper box – tiltable up to 130°
  • Extra wide platform for extra-long building material
  • Special equipment for horizontal and vertical material transportation

Any of these transportation elements can be mounted without any tools. With a practical manual control and one simple touch of the button, the materials can be hauled to the upper levels.

If you have any questions concerning the inclined hoist made by GEDA do not hesitate to contact our friendly experts. They will gladly assist you with any questions about the special elevators.






Logo GEDA Central
GEDA CENTRAL is an intelligent online-platform for digital services for your GEDA hoists
Learn more Register
Technical Data Refresh
last detail
next detail

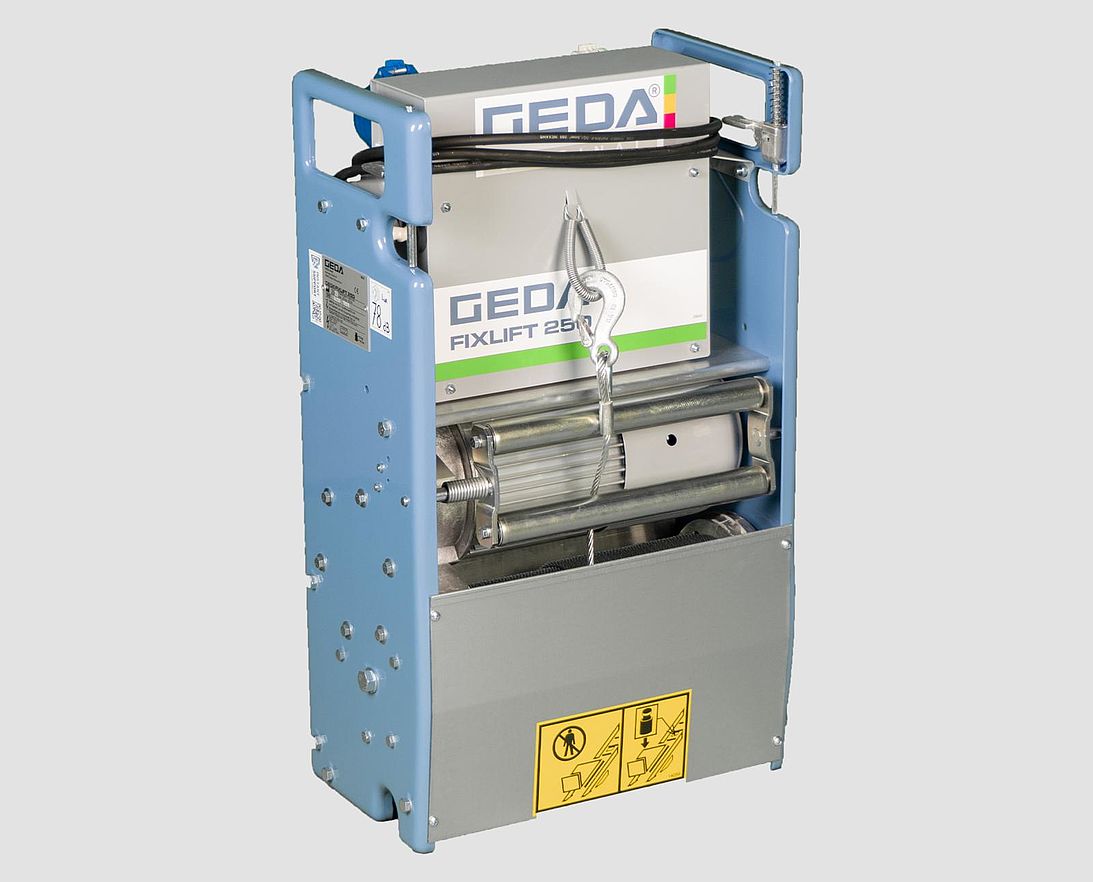

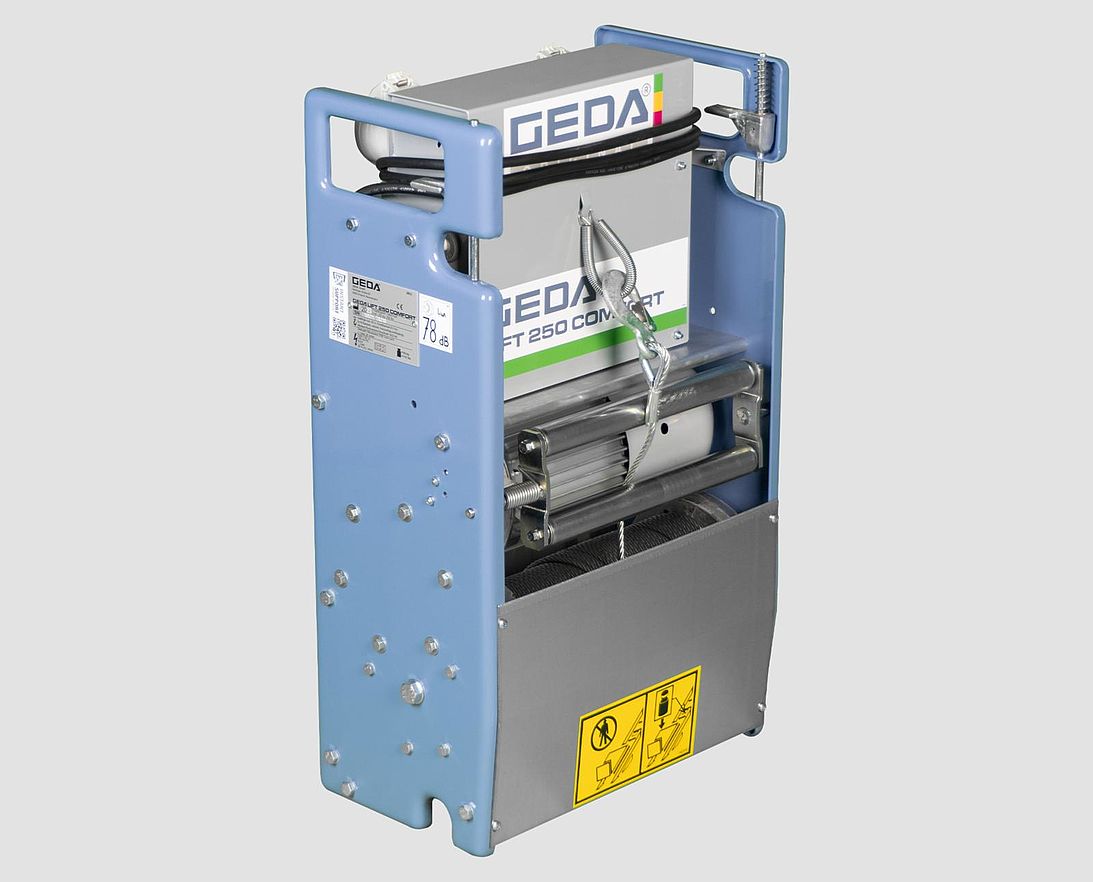

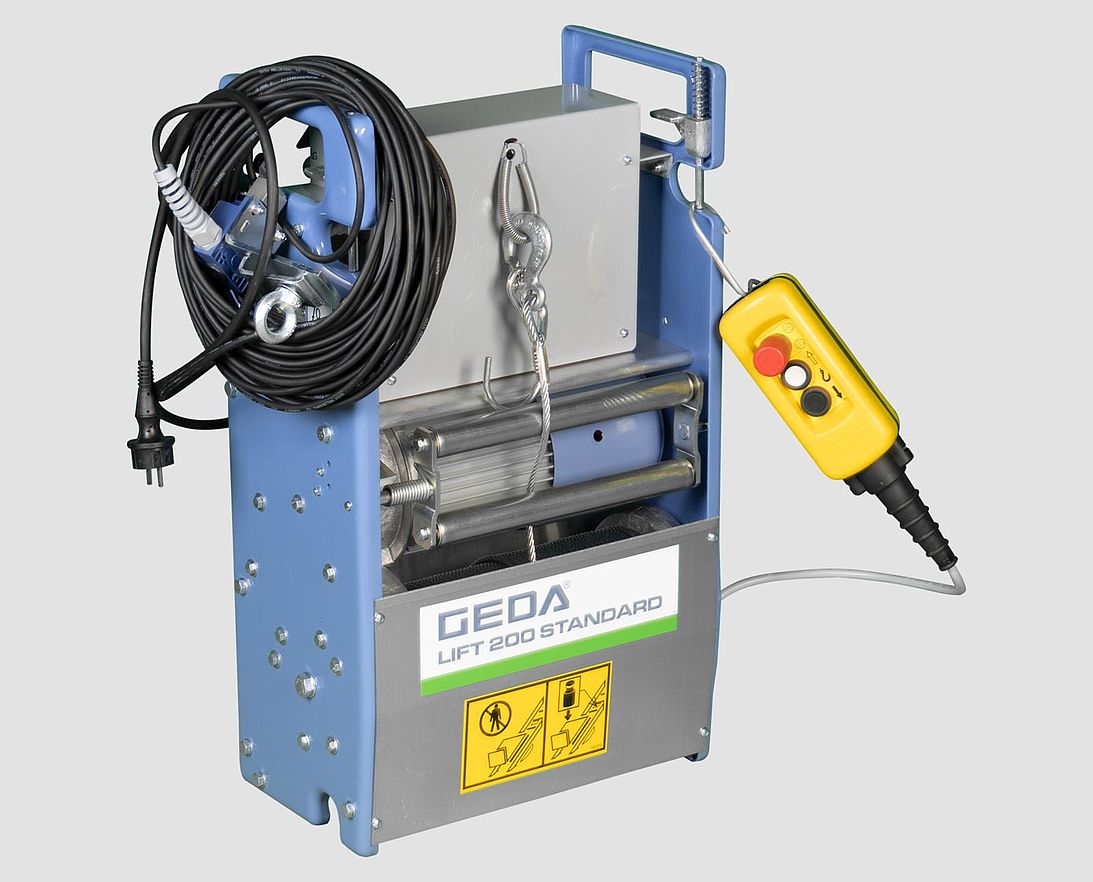

Model GEDA LIFT 200 STANDARD GEDA LIFT 250 COMFORT GEDA FIXLIFT 250
Cargo Material Material Material
Load capacity (material) 200 kg 250 kg 250 kg
Lifting height 19 m 19 m 19 m
Lifting speed 25 m/min 30 m/min 19 m/min / 38 m/min
Power supply 1 kW / 230 V / 50 Hz / 16 A 1.3 kW / 230 V / 50 Hz / 16 A 0.6 kW / 1.2 kW / 230 V / 50 Hz / 16 A
Appropriate accessories
last accessoir
next accessoir
Perlon rope line blue
Perlon rope
Rigid platform line blue
Rigid platform
Prop for sheet carrier line blue
Prop for sheet carrier
Bucket hanger line blue
Bucket hanger
Tipping skip line blue
Tipping skip

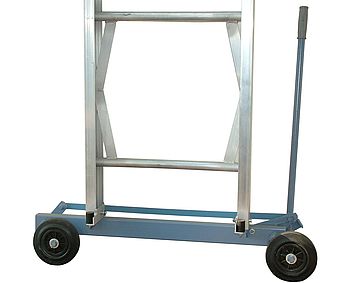

Wheeled undercarriage line blue
