GEDA MULTILIFT P18 P

Compare

The GEDA Multilift P18 P is the strong partner for heavy loads for use with permanently installable hoist solutions. It is the ideal support tool for maintenance and repair tasks in all industry sectors. Guided on two masts, the hoist transports up to 2000 kg or 20 people in a closed car safely and efficiently.

The hoist has three different platform variants and can therefore be easily adapted to on-site conditions.

The GEDA Multilift P18 P also scores highly thanks to the benefits of the proven GEDA Multilift range. The compact, pre-installed base unit comprising car, base enclosure, flat cable bin and drive ensures the smooth transport and rapid assembly of the hoist on-site.

The break-off safety for the flat cable is included in the delivery scope, so if the cable were to get caught, a limit switch prevents damage to the trailing cable.


prev
next
Product highlights
Automatic lubrication device standard

The automatic lubrication system reduces maintenance costs.



Technical Data Refresh
Cargo Persons and material
Mast system GEDA UNI-X-MAST
Load capacity (material) 2000 kg
Load capacity (persons) 20 Persons
Lifting height 100 m
Lifting speed 40 m/min
Power supply 15 kW / 380 V - 480 V / 50 Hz - 60 Hz / 32 A
default_grey
Appropriate accessories
prev
next
Set of extension tubes line blue
Set of extension tubes
Set of mast ties line blue
Set of mast ties
GEDA UNI-X-MAST line blue
GEDA UNI-X-MAST
Limit switch operating plate line blue
Limit switch operating plate
Jack ring for crane line blue
Jack ring for crane
High & closed landing level safety gate (permanent) line blue
High & closed landing level safety gate (permanent)
Floor and wall tie line blue
Floor and wall tie
Trailing cable guide line blue
Trailing cable guide

Know-how in use To the References

prev
next

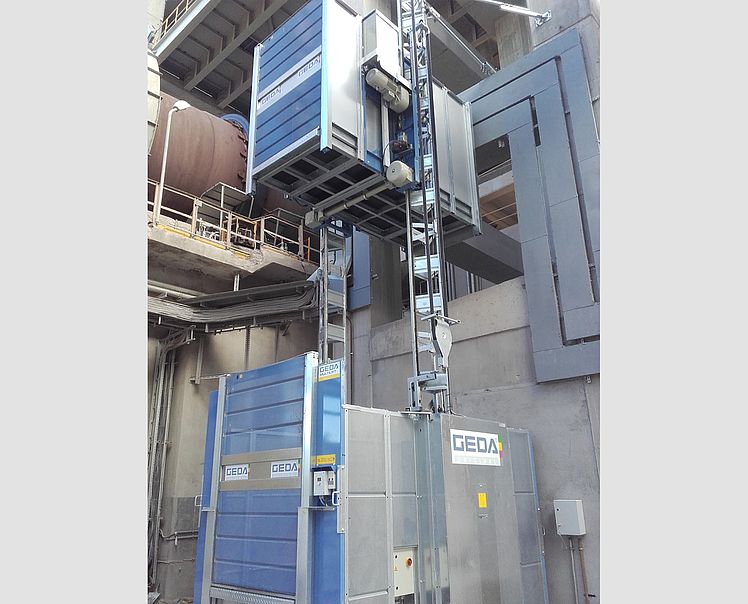

    Cement plant Balikesir
