GEDA MULTILIFT P22

Compare

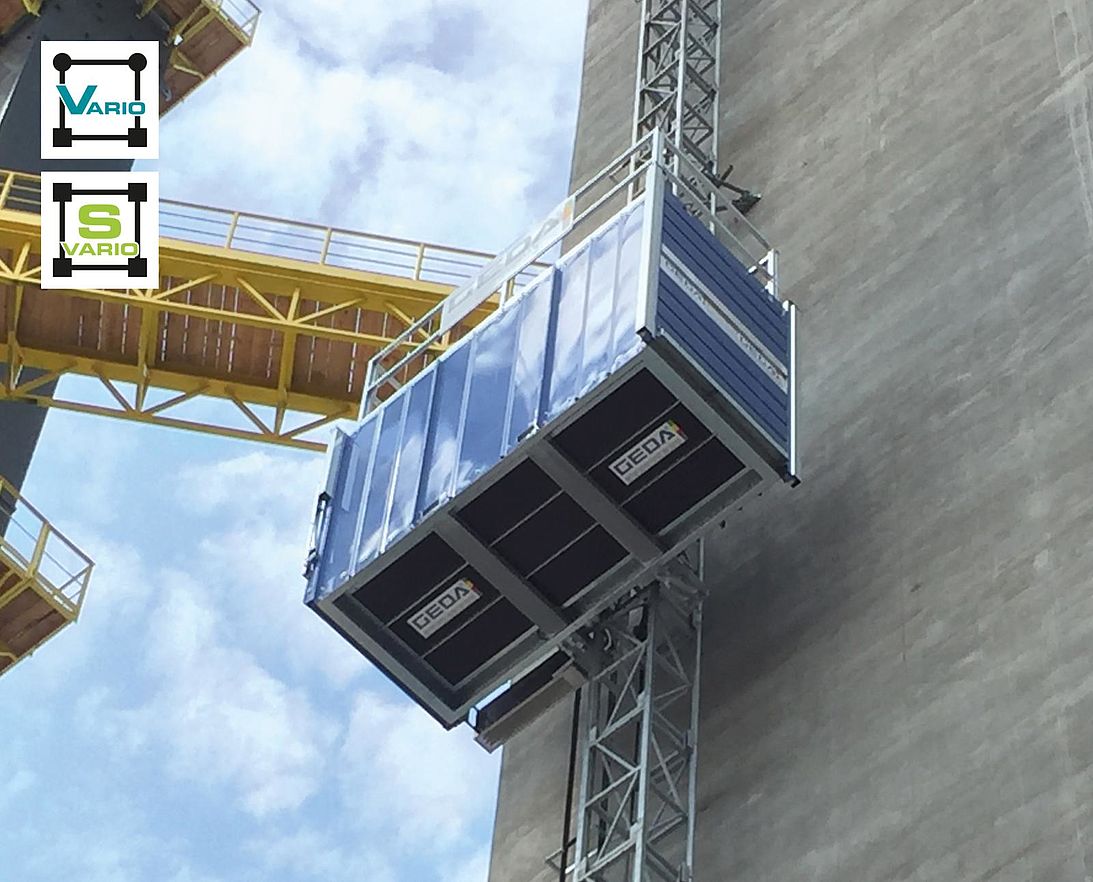

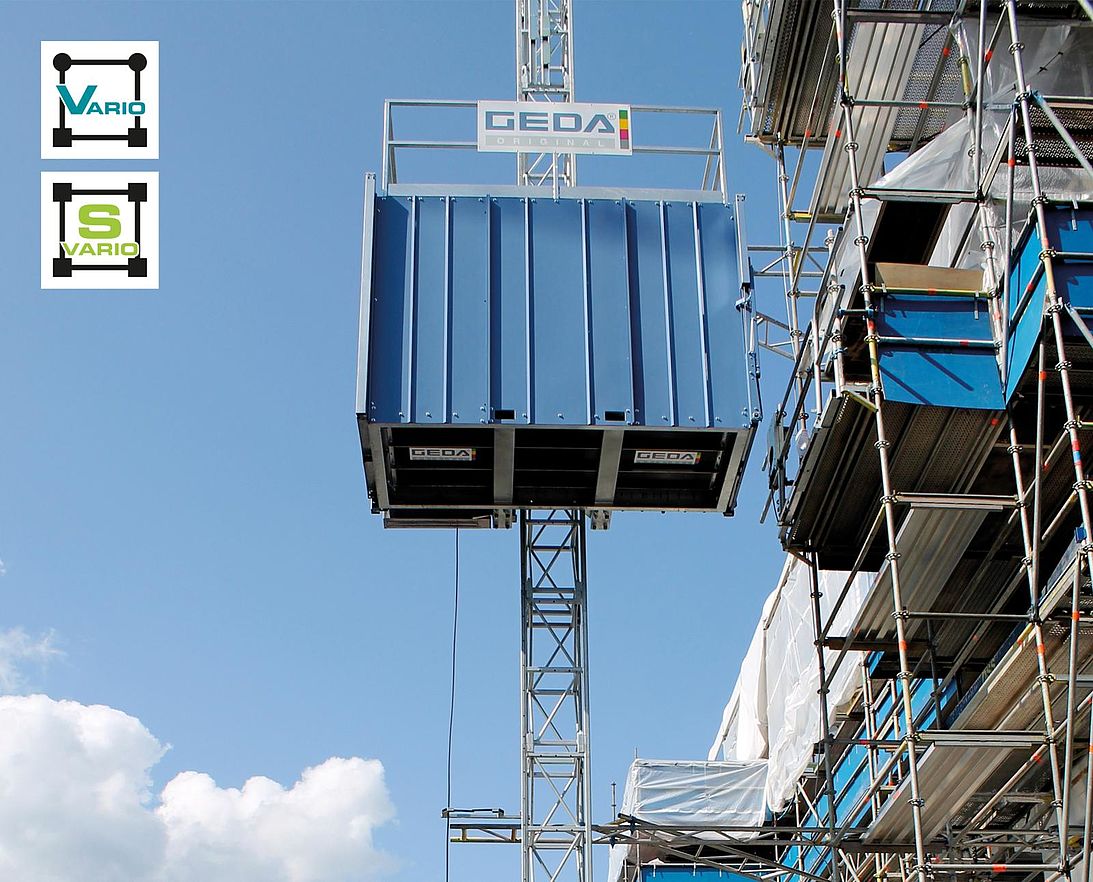

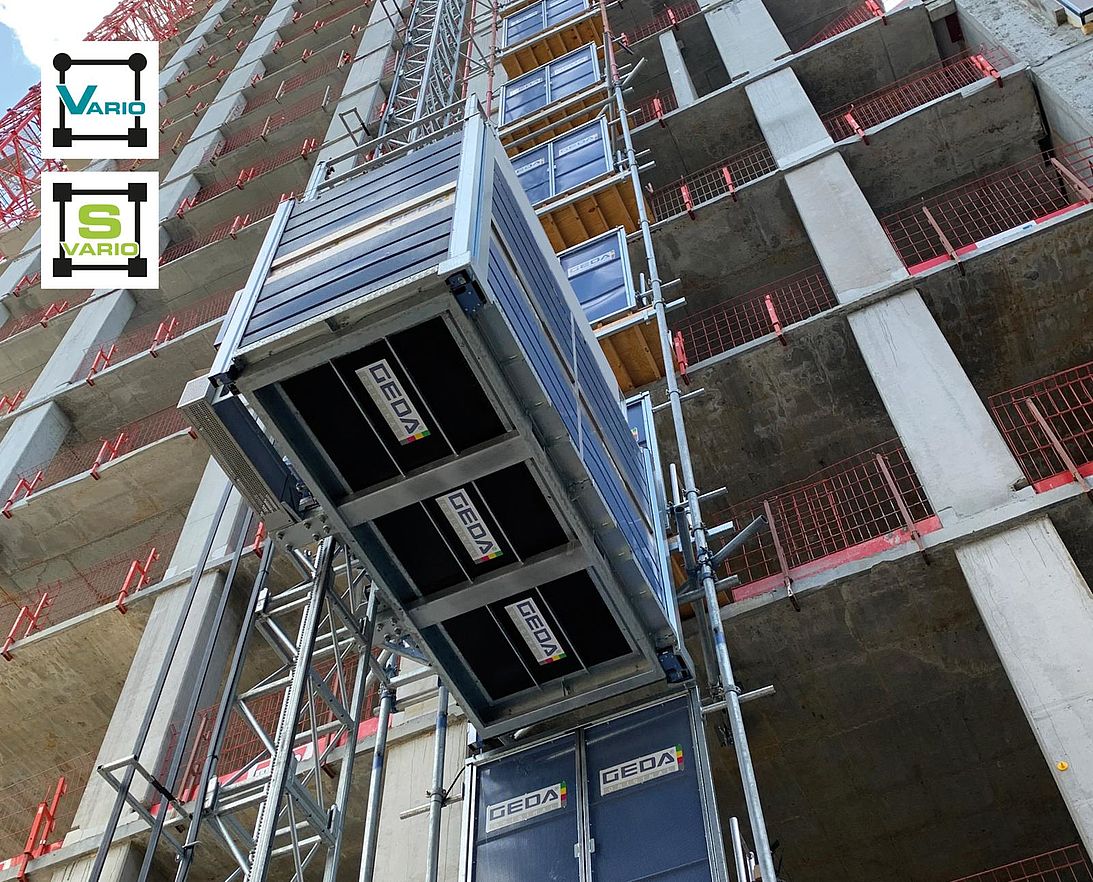

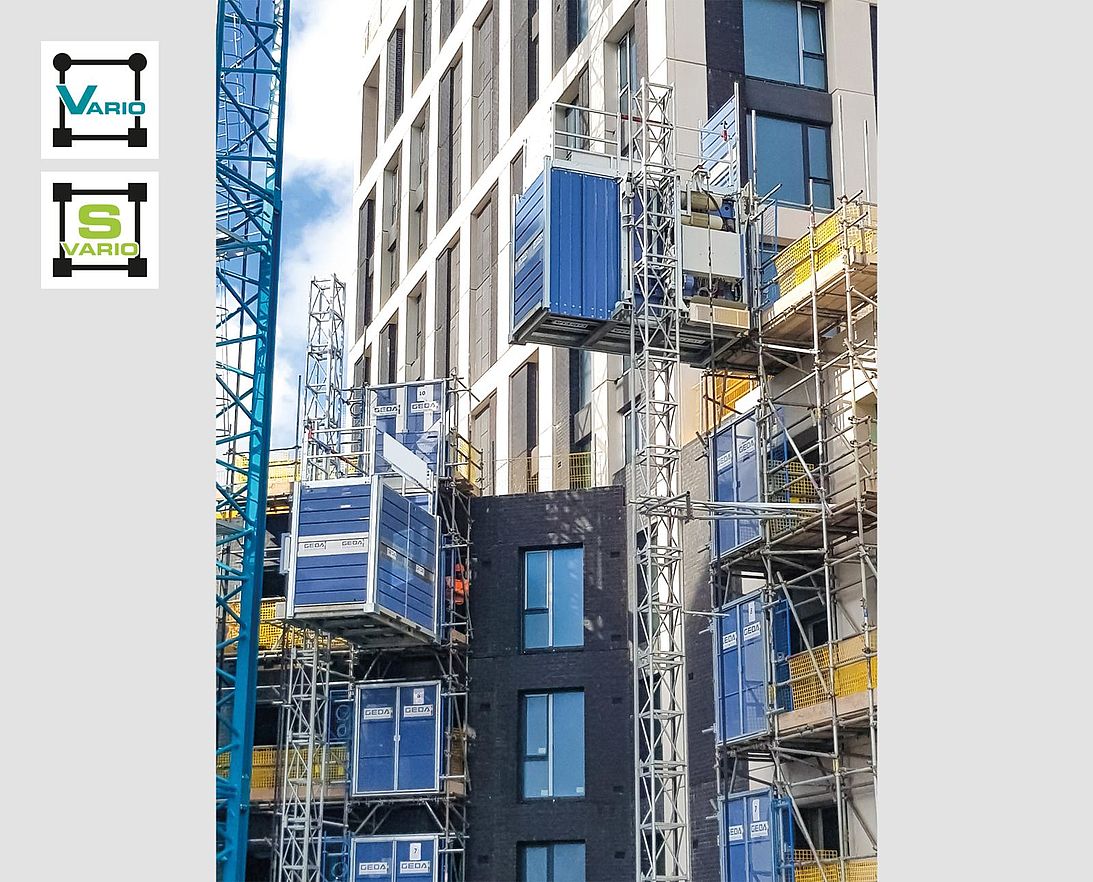

The GEDA Multilift P22 is the powerhouse of the Multilift range. Despite its high load capacity of 2000 kg or 22 passengers, it runs on only one mast of the proven GEDA VARIO-MAST system. With an adapter mast, the GEDA Multilift P22 can also be operated with the GEDA SVARIO-MAST.

The optionally available 2.9 x 2.0 m (W x H) C-door allows convenient loading of the platform even with large, bulky construction materials.

The easy-maintenance design of the GEDA Multilift P22 is another advantage: all electronic components are accessible directly from the platform.

Thanks to the patented GEDA flat cable bin system, passengers and materials can be transported up to a height of 200 m quickly and safely. The special highlight: the GEDA Multilift P22 is operated with a cable trolley above a lifting height of 50 m. The trolley has a space-saving design so that the entry height at the lowest landing level is still at a comfortable 450 mm.

The already convenient operation of the passenger and material hoist is made even more simple and efficient with the optionally available intelligent call control.

The benefits of the Multilift range, such an uncomplicated installation through the compact, pre-installed unit and installation without a separate foundation, complete the overall concept.









Logo GEDA Central
GEDA CENTRAL is an intelligent online-platform for digital services for your GEDA hoists
Learn more Register

prev
next
Product highlights
Compact unit

Compact, pre-installed base unit comprising car, base enclosure, flat cable bin and drive.

Big C-door

Big C-door, 2.9 x 2.0 m (WxH) for easy loading of big and bulky goods.

Innovative mast system

Innovative mast system with captive screws: High lifting height and easy anchoring through use of the scaffolding pipe system (Ø 48 mm).

Cable trolley

The GEDA MULTILIFT P22 is operated with a cable trolley above a lifting height of 50 m. This does not impair the easy access height of 450 mm.

Maintenance-friendly design

All electronic components are directly accessible from the platform.

Intelligent call control

This makes operation even easier and more efficient (short waiting times on the construction site).

GEDA Corrosion Protection

The new GEDA all-round protection provides protection from corrosion and its consequential damage, maintains the functionality of components and extends their operating life.

Automatic lubrication device standard

The automatic lubrication system reduces maintenance costs.

GEDA POWER GREASE

The GEDA POWER GREASE range comprises four lubricants which cover all GEDA machine types, applications and temperature ranges.



Technical Data Refresh
Cargo Persons and material
Mast system GEDA VARIO-MAST / GEDA SVARIO-MAST
Load capacity (material) 2000 kg
Load capacity (persons) 22 Persons
Lifting height 200 m
Lifting speed 54 m/min
Power supply 30 kW / 380 V - 480 V / 50 Hz - 60 Hz / 32 A - 63 A
Platform dimension 1.4 m x 3.2 m x 2.1 m
Appropriate accessories
prev
next
Landing level safety gate "Comfort" line blue
Landing level safety gate "Comfort"
Landing level safety gate "Standard" line blue
Landing level safety gate "Standard"
Landing level safety gate "Standard-Basic" line blue
Landing level safety gate "Standard-Basic"
GEDA POWER GREASE 1000 Standard cartridge line blue
GEDA POWER GREASE 1000 Standard cartridge
Floor and wall tie line blue
Floor and wall tie

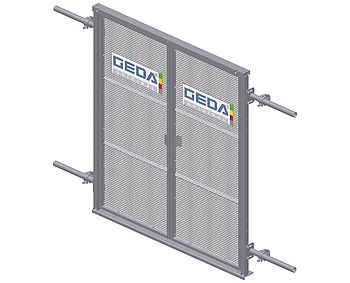

High & closed landing level safety gate line blue
High & closed landing level safety gate
High & closed landing level safety gate line blue
High & closed landing level safety gate
Set of mast ties line blue
Set of mast ties

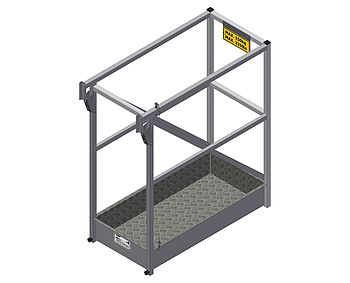

Assembly cage line blue
