Art. No. 01212 Additional equipment
Pictures can be different
Art. No. 01217 Additional equipment
Pictures can be different
Art. No. 01268 Additional equipment
Pictures can be different
Art. No. 41163 Additional equipment
Pictures can be different

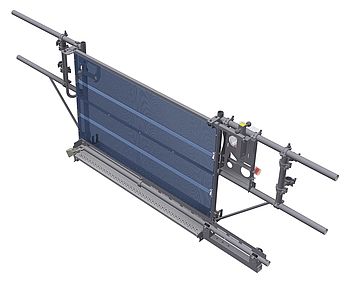

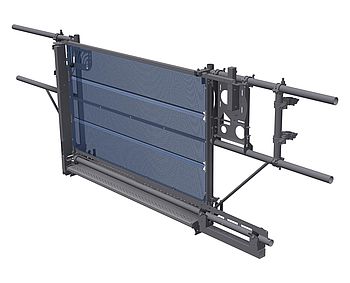

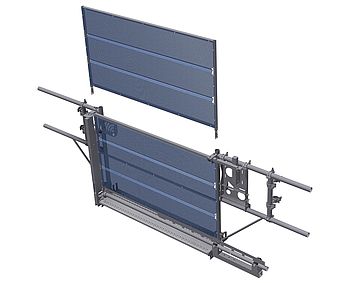

Floor and wall tie for landing level safety gate
2 pcs. required for fastening onto a floor (and 2 tubes 1 ½” on site required)
4 pcs. required for fastening onto a wall (and 2 tubes 1 ½” on site required)
GEDA 300 Z GEDA 500 Z GEDA 500 Z DUO GEDA 300 Z/ZP GEDA 500 Z/ZP GEDA 1200 Z/ZP GEDA 1500 Z/ZP GEDA 3700 Z/ZP GEDA MULTILIFT P6 GEDA MULTILIFT P12 GEDA MULTILIFT P18 GEDA MULTILIFT P22 GEDA PH 2737 GEDA PH 3240 GEDA 850 ZM P GEDA 1200 ZM P GEDA 300 ZP P GEDA 500 ZP P GEDA 1500 ZP P GEDA MULTILIFT P12 P GEDA MULTILIFT P18 P
Art. No. 41441 Additional equipment
Pictures can be different
Height 2.1 m
GEDA MULTILIFT P6 GEDA MULTILIFT P12 GEDA MULTILIFT P18 GEDA MULTILIFT P22 GEDA PH 2737 GEDA PH 3240 GEDA BL 2000 GEDA BL 2000 P
Art. No. 41442 Additional equipment
Pictures can be different
Height 1.8 m
GEDA MULTILIFT P6 GEDA MULTILIFT P12 GEDA MULTILIFT P18 GEDA MULTILIFT P22 GEDA PH 2737 GEDA PH 3240 GEDA BL 2000 GEDA BL 2000 P
Art. No. 50015 Extension of the base unit
Pictures can be different
Trailing cable guide for flat cable
Art. No. 55812 Accessories
Pictures can be different
Art. No. 55828 Accessories
Pictures can be different
Cable storage (floor)
Loose cables lying around are easily damaged in the tough daily life on a building site.
The cable storage ensures that the travelling cable is protected and stored. The compact unit can easily be transported through the practical forklift access. The cable is pulled upwards directly out of the cable storage without disconnecting – for rational working.
Art. No. 55835 Accessories
Pictures can be different
Cable storage (roof)
The central feeder is used to store half of the cable on the roof during assembly.
The light storage frames can be connected to the roof railing.
Art. No. 63008 Accessories
Pictures can be different
Special cartridge (400 g)
Grease for EXTREME applications.
Black adhesive grease, mineral oilbased, with high solid-lubricant content.
0 °C up to +70 °C
Art. No. 66100 Accessories
Pictures can be different
Initial lubrication set (2 cartridge and 1 brush)
Grease for EXTREME applications.
Black adhesive grease, mineral oilbased, with high solid-lubricant content.
0 °C up to +70 °C
GEDA 200 Z GEDA 300 Z Boiler Hoist GEDA 3700 Z/ZP GEDA PH 2737 GEDA PH 3240 GEDA BL 2000 GEDA SBL 2000 GEDA MCP 750 GEDA MCP 1500 GEDA BL 2000 P
Art. No. 66101 Accessories
Pictures can be different
Initial lubrication set (2 cartridges and 1 brush)
Low temperature grease for MEDIUM and EXTREME applications.
Black, semi-synthetic low-temperature adhesive grease with solid-lubricant content.
-30 °C up to +10 °C
GEDA 200 Z GEDA 300 Z Boiler Hoist GEDA 3700 Z/ZP GEDA PH 2737 GEDA PH 3240 GEDA BL 2000 GEDA SBL 2000 GEDA MCP 750 GEDA MCP 1500 GEDA BL 2000 P
Art. No. 66603 Accessories
Pictures can be different
Special cartridge (400 g)
Low temperature grease for MEDIUM and EXTREME applications.
Black, semi-synthetic low-temperature adhesive grease with solid-lubricant content.
-30 °C up to +10 °C
GEDA 3700 Z/ZP GEDA PH 2737 GEDA PH 3240 GEDA BL 2000 GEDA BL 2000 P
Art. No. 68302 Landing level safety system
Pictures can be different
Sheet metal panel for landing level safety gate "Comfort"
Art. No. 68310 Landing level safety system
Pictures can be different
Sheet metal panel for landing level safety gate "Standard/Standard-Basic"
Art. No. 75023 Extension of the base unit
Pictures can be different
Art. No. 75024 Extension of the base unit
Pictures can be different
Art. No. 75062 Extension of the base unit
Pictures can be different
Art. No. 75712 Additional equipment
Pictures can be different
Limit switch operating plate for landing level stop
Art. No. 75750 Accessories
Pictures can be different
back

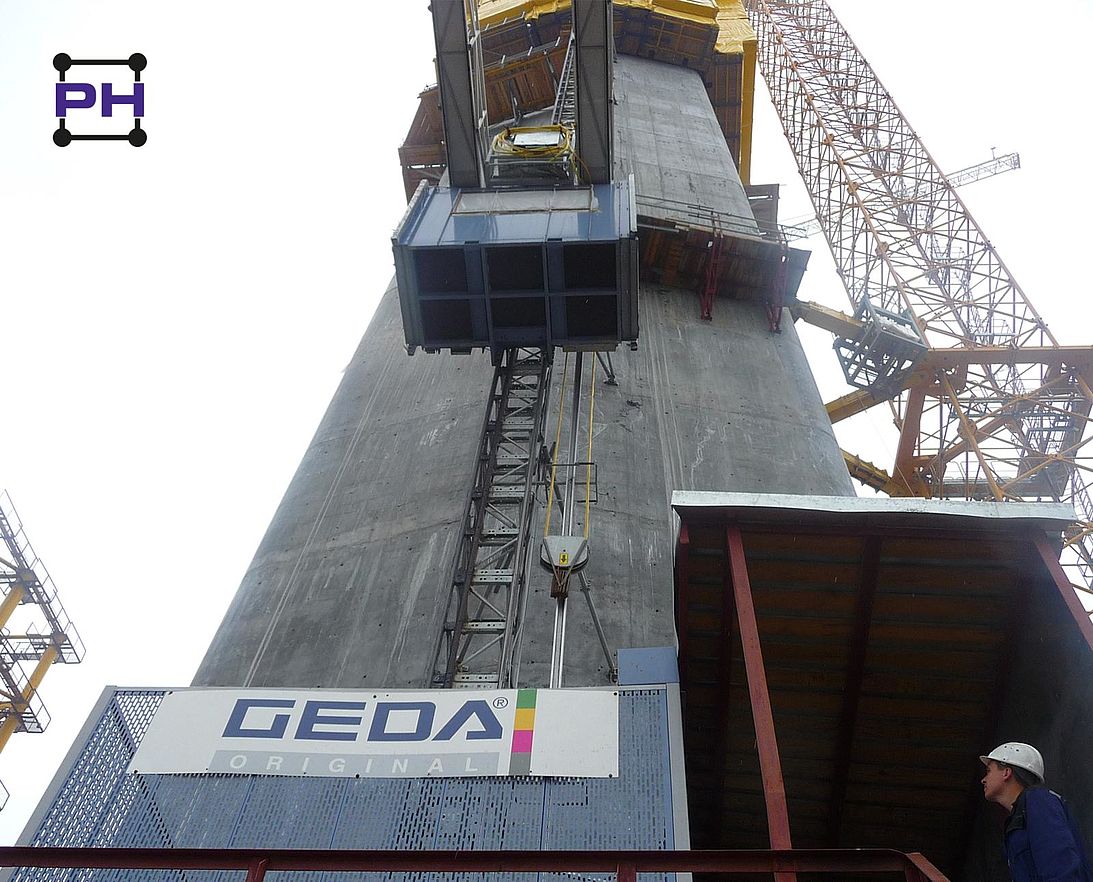

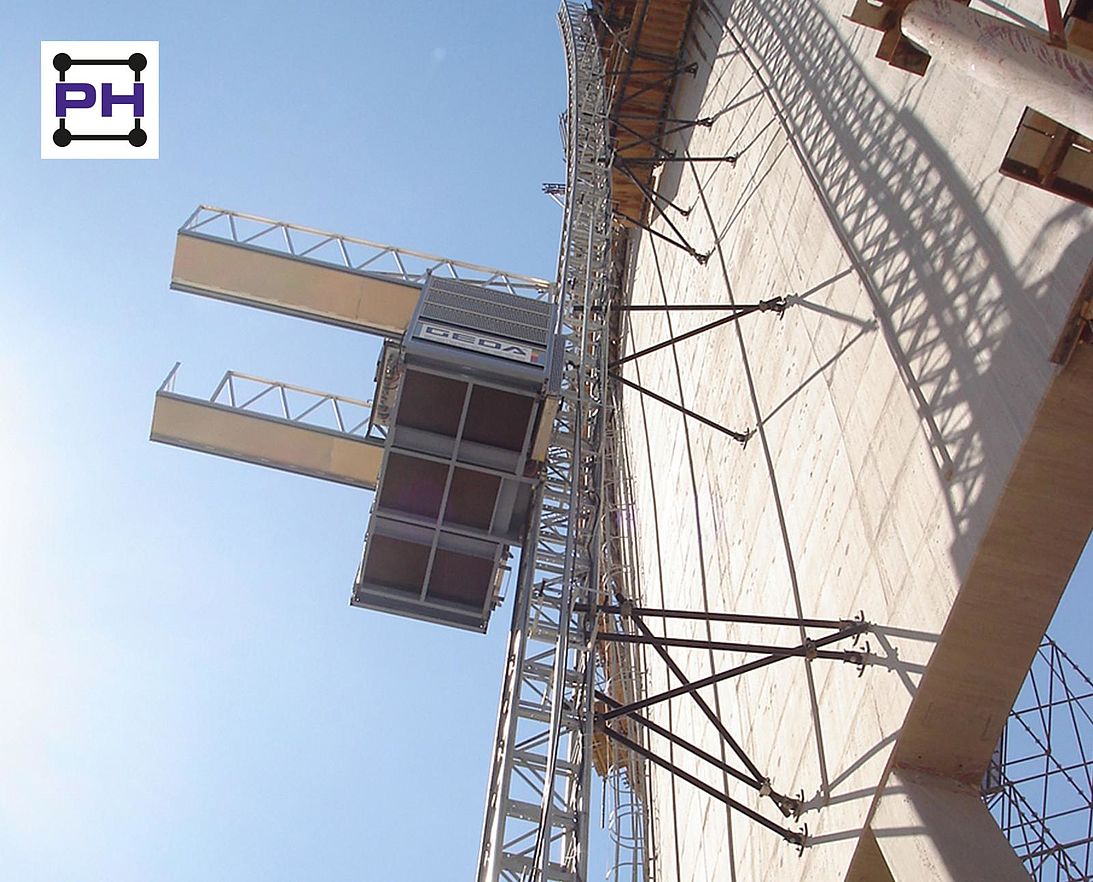

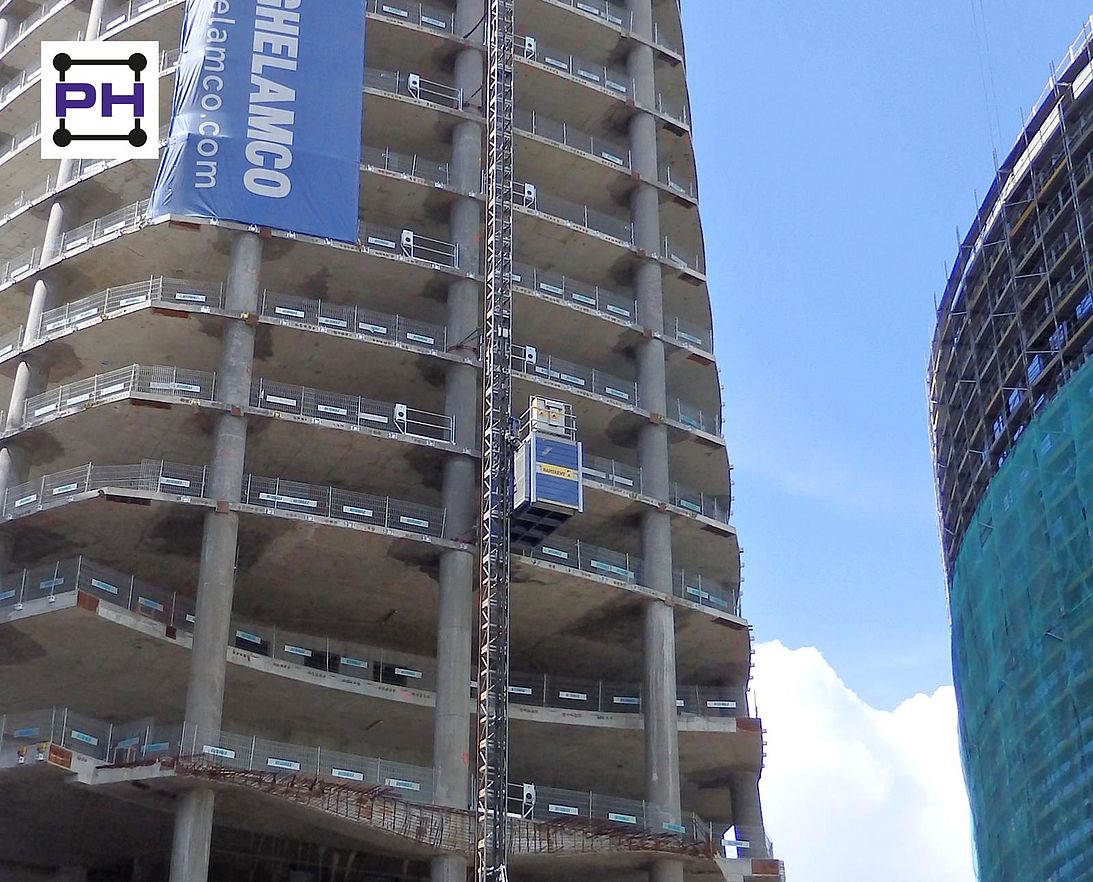

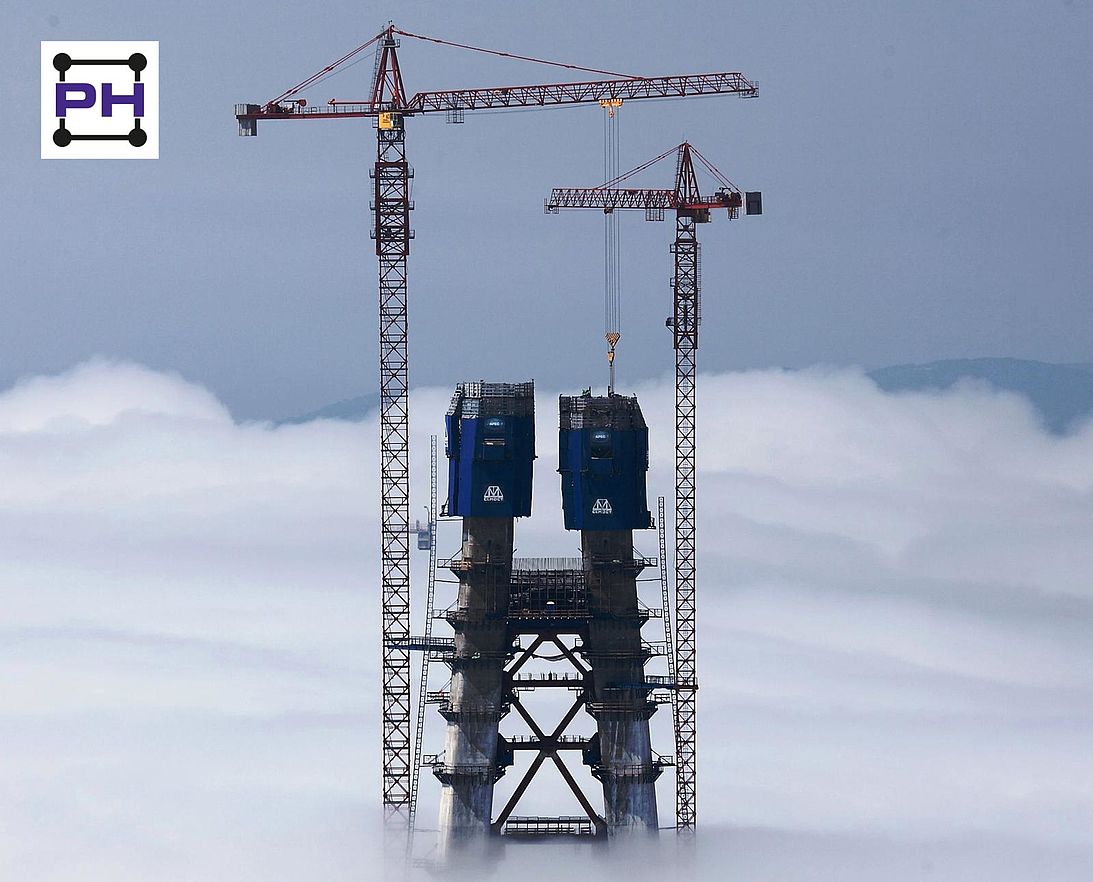

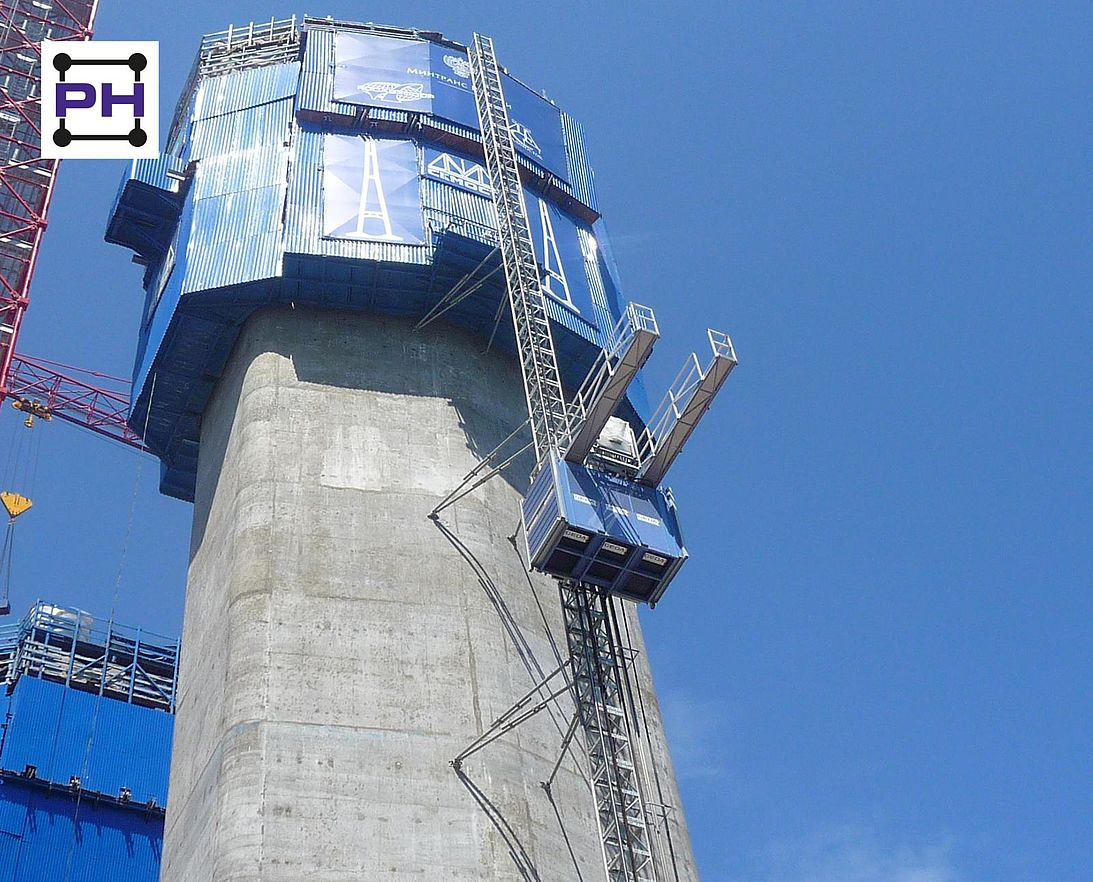

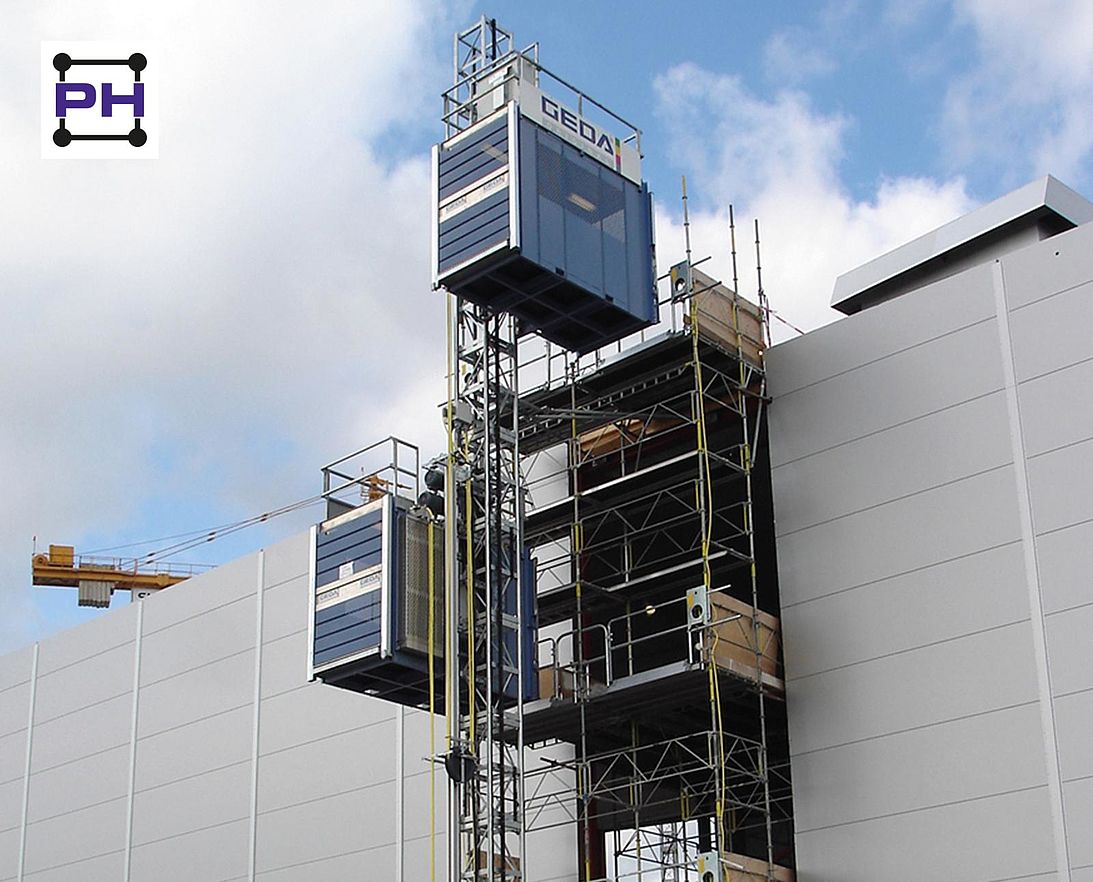

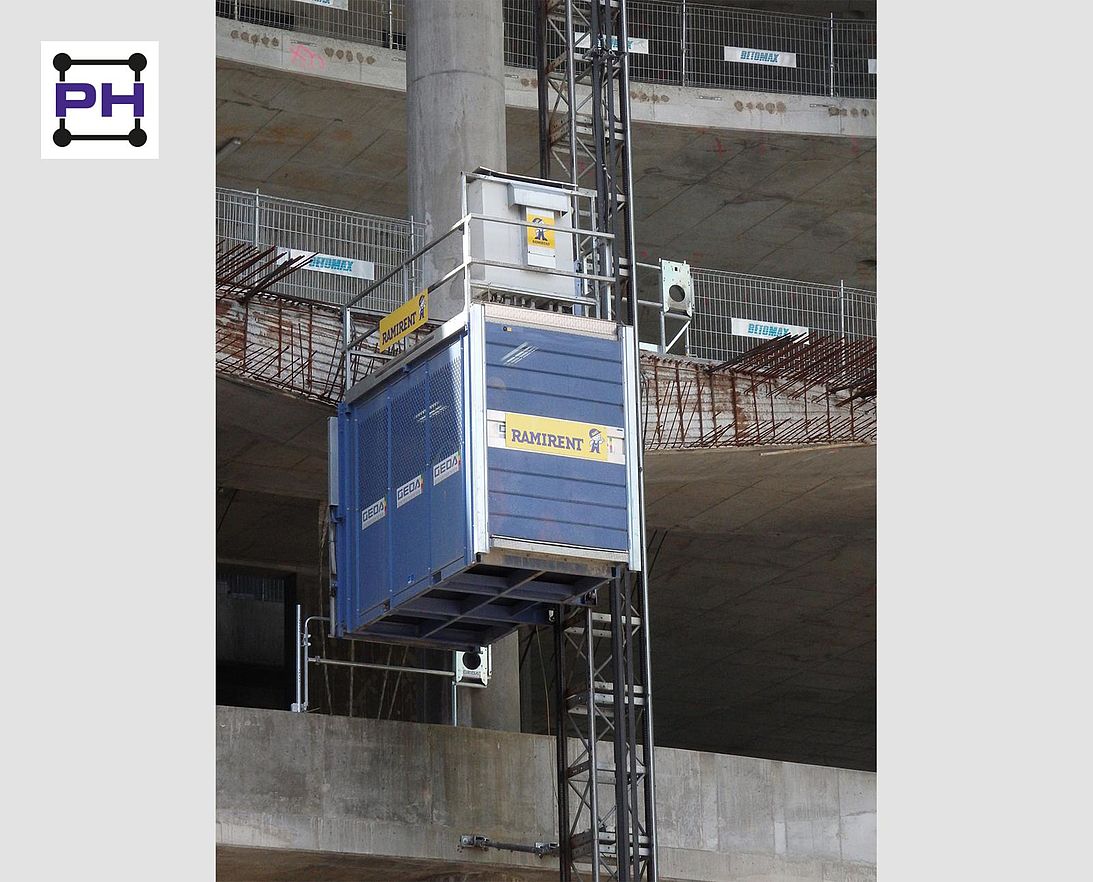

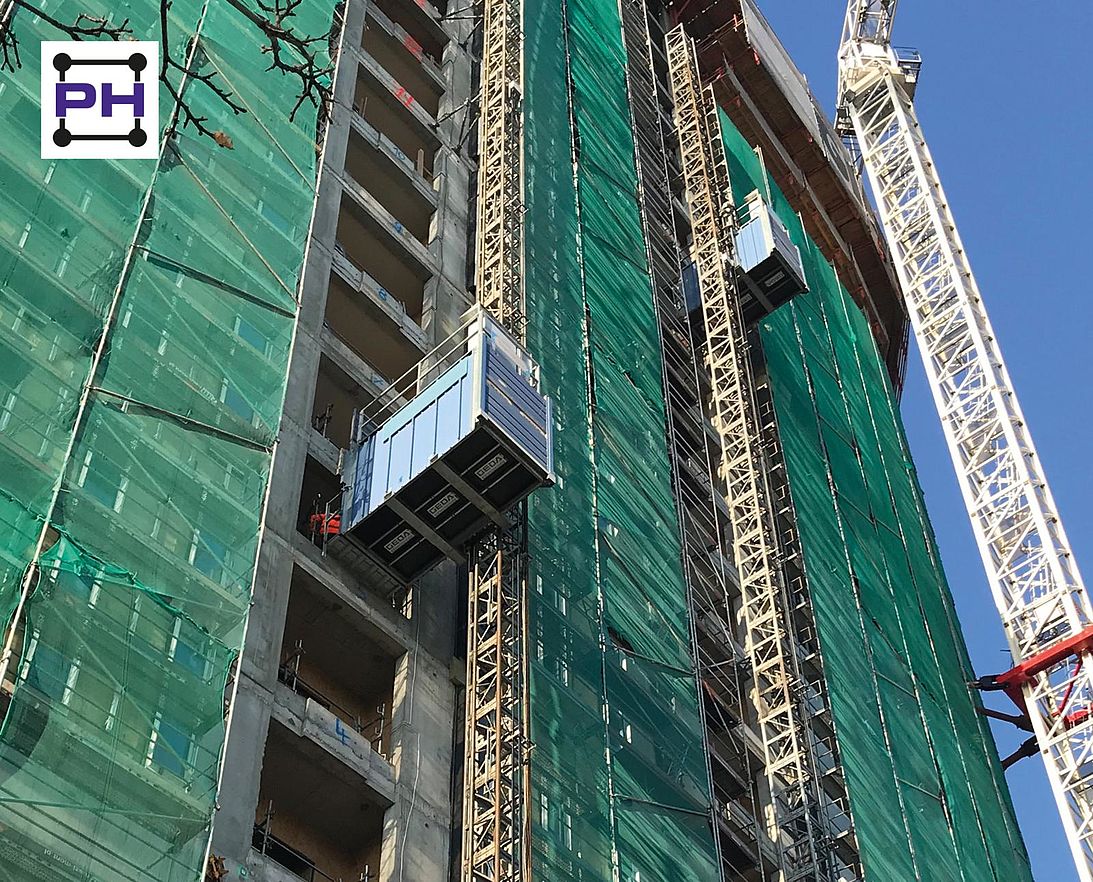

GEDA PH 2032
The passenger and material hoists from the GEDA PH range meet the demands for high load capacities and great lifting heights.
The “smallest” among the three GEDA PH models, the GEDA PH 2032, offers a spacious 1.55 x 3.20 m platform for up to 25 passengers or materials with a total weight of 2000 kg.
With a lifting speed of 90 m/min, controlled by a frequency converter, the GEDA PH 2032 reaches a lifting height of up to 400 metres.
The frequency converter enables smooth starting and stopping with a low start-up current, which significantly reduces wear on the gear rack and the motor pinion.
The standard controls for landing pre-selection, automatic mode or fully automatic mode can be selected individually for each model from the GEDA PH series. Different door systems in combination with the suitable requested electrically/mechanically locking landing level doors complete the profile of the PH range.

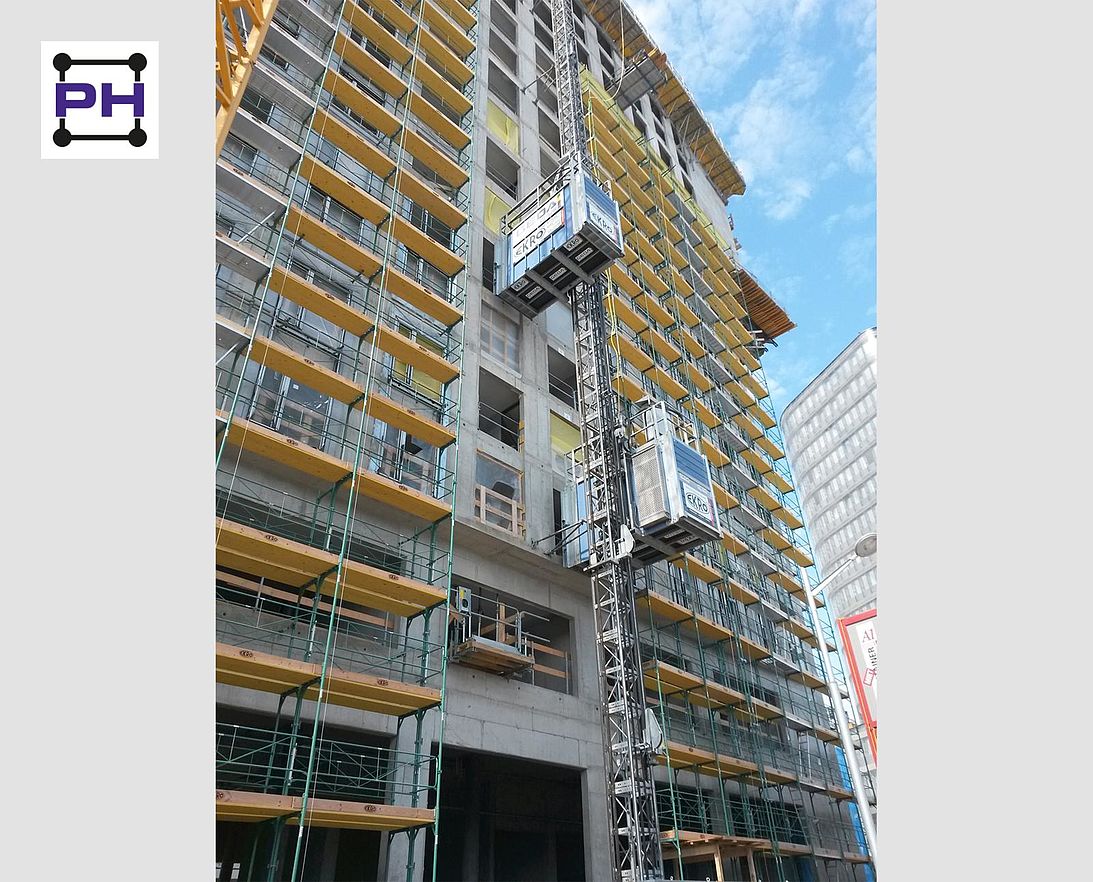

The GEDA PH 2032 is available as a single-car version or as a double-car version.
| Cargo | Persons and material |
| Mast system | GEDA PH-MAST |
| Load capacity (material) | 2000 kg |
| Load capacity (persons) | 25 Persons |
| Lifting height | 400 m |
| Lifting speed | |
| Platform dimension |
1.55 m
|
Know-how in use To the References
Image 1 of 4
| Device | Technical details | Number of machines |
|---|---|---|
| GEDA BL 2000 |
Lifting height: 50 m |
2 |
| GEDA PH 2032 |
Lifting height: 50 m |
1 |
Image 1 of 3| Device | Technical details | Number of machines |
|---|---|---|
| GEDA PH 2032 |
Lifting height: 172 m Lifting speed: 40 m/min Load capacity: 2000 kg/25 persons |
1 |
Image 1 of 2| Device | Technical details | Number of machines |
|---|---|---|
| GEDA PH 2032 |
Lifting height: 135 m Lifting speed: 40 m/min Load capacity: 2000 kg/25 persons |
1 |
Image 1 of 2| Device | Technical details | Number of machines |
|---|---|---|
| GEDA PH 2032 |
Lifting height: 181,5 m Lifting speed: 40 m/min Load capacity: 2000 kg/25 persons |
1 |
!["Blox" Copenhagen](/fileadmin/_processed_/5/c/csm_GEDA_PH_Blox_Kopenhagen_Daenemark_1860x1500_01_76df52d189.jpg ""Blox" Copenhagen")
!["Blox" Copenhagen 1](/fileadmin/_processed_/5/c/csm_GEDA_PH_Blox_Kopenhagen_Daenemark_1860x1500_01_3bae492278.jpg ""Blox" Copenhagen 1")
!["Blox" Copenhagen 2](/fileadmin/_processed_/5/0/csm_GEDA_PH_Blox_Kopenhagen_Daenemark_1860x1500_05_5219171ab3.jpg ""Blox" Copenhagen 2")
!["Blox" Copenhagen 3](/fileadmin/_processed_/1/7/csm_GEDA_PH_Blox_Kopenhagen_Daenemark_1860x1500_02_7075e14985.jpg ""Blox" Copenhagen 3")
!["Blox" Copenhagen 4](/fileadmin/_processed_/c/5/csm_GEDA_PH_Blox_Kopenhagen_Daenemark_1860x1500_04_243692ce53.jpg ""Blox" Copenhagen 4")
!["Blox" Copenhagen 5](/fileadmin/_processed_/1/e/csm_GEDA_PH_Blox_Kopenhagen_Daenemark_1860x1500_03_b3d2acedcc.jpg ""Blox" Copenhagen 5")
Image 1 of 5| Device | Technical details | Number of machines |
|---|---|---|
| GEDA MULTILIFT P22 |
Lifting height: 24 m |
1 |
| GEDA PH 2032 |
Lifting height: 24 m |
2 |
Image 1 of 5| Device | Technical details | Number of machines |
|---|---|---|
| GEDA PH 2032 |
Lifting height: 185 m |
2 |
| GEDA AB 650 |
Lifting height: 190 m |
8 |
Image 1 of 2| Device | Technical details | Number of machines |
|---|---|---|
| GEDA PH 2032 |
Lifting height: 46 m |
1 |
| GEDA MCP 1500 |
Lifting height: 46 m |
1 |
![Statoil - "The Five Elements"](/fileadmin/_processed_/csm_GEDA_PH_Statoil_Five_Elements_Norwegen_1860x1500_01_a2ea283543.jpg "Statoil - "The Five Elements"")
![Statoil - "The Five Elements" 1](/fileadmin/_processed_/csm_GEDA_PH_Statoil_Five_Elements_Norwegen_1860x1500_01_765b3f3dd8.jpg "Statoil - "The Five Elements" 1")
![Statoil - "The Five Elements" 2](/fileadmin/_processed_/csm_GEDA_Multilift_P18_Statoil_Five_Elements_Norwegen_1860x1500_02_0af4d501b2.jpg "Statoil - "The Five Elements" 2")
![Statoil - "The Five Elements" 3](/fileadmin/_processed_/csm_GEDA_Multilift_P18_Statoil_Five_Elements_Norwegen_1860x1500_01_2c0c640709.jpg "Statoil - "The Five Elements" 3")
![Statoil - "The Five Elements" 4](/fileadmin/_processed_/csm_GEDA_Multilift_P18_Statoil_Five_Elements_Norwegen_1860x1500_03_ae90b0d9d7.jpg "Statoil - "The Five Elements" 4")
![Statoil - "The Five Elements" 5](/fileadmin/_processed_/csm_GEDA_Multilift_P18_Statoil_Five_Elements_Norwegen_1860x1500_04_712272263c.jpg "Statoil - "The Five Elements" 5")
![Statoil - "The Five Elements" 6](/fileadmin/_processed_/csm_GEDA_PH_Statoil_Five_Elements_Norwegen_1860x1500_02_b92c7cdff1.jpg "Statoil - "The Five Elements" 6")
![Statoil - "The Five Elements" 7](/fileadmin/_processed_/csm_GEDA_PH_Statoil_Five_Elements_Norwegen_1860x1500_03_b4caf68fe2.jpg "Statoil - "The Five Elements" 7")
Image 1 of 7| Device | Technical details | Number of machines |
|---|---|---|
| GEDA MULTILIFT P18 |
Lifting height: 17-26 m
|
5 |
| GEDA PH 2032 |
Lifting height: 39 m
|
1 |
Image 1 of 3| Device | Technical details | Number of machines |
|---|---|---|
| GEDA PH 2032 |
Lifting height: 180 m |
2 |
Image 1 of 2| Device | Technical details | Number of machines |
|---|---|---|
| GEDA PH 2032 |
Lifting height: 156 m |
1 |
Image 1 of 2| Device | Technical details | Number of machines |
|---|---|---|
| GEDA PH 2032 |
Lifting height: 350 m
|
14 |
Image 1 of 2| Device | Technical details | Number of machines |
|---|---|---|
| GEDA PH 2032 |
Lifting height: 30 m
|
2 |
Image 1 of 2| Device | Technical details | Number of machines |
|---|---|---|
| GEDA PH 2032 |
Lifting height: 90 m
|
3 |
Image 1 of 2| Device | Technical details | Number of machines |
|---|---|---|
| GEDA PH 2032 |
Lifting height: 120 m
|
2 |
Image 1 of 2| Device | Technical details | Number of machines |
|---|---|---|
| GEDA PH 2032 |
Lifting height: 18 m
|
2 |
Image 1 of 3| Device | Technical details | Number of machines |
|---|---|---|
| GEDA PH 2032 |
Lifting height: 180 m
|
1 |
Image 1 of 1| Device | Technical details | Number of machines |
|---|---|---|
| GEDA PH 2032 |
Lifting height: 62 m
|
1 |
Image 1 of 2| Device | Technical details | Number of machines |
|---|---|---|
| GEDA PH 2032 |
Lifting height: 34 m
|
1 |
Image 1 of 4| Device | Technical details | Number of machines |
|---|---|---|
| GEDA PH 2032 |
Lifting height: 180 m
|
1 |
| GEDA SH |
GEDA SH 600 |
1 |
Image 1 of 4| Device | Technical details | Number of machines |
|---|---|---|
| GEDA PH 2032 |
Lifting height: 320 m
|
5 |
Image 1 of 3| Device | Technical details | Number of machines |
|---|---|---|
| GEDA PH 2032 |
Lifting height: 90 m |
2 |
