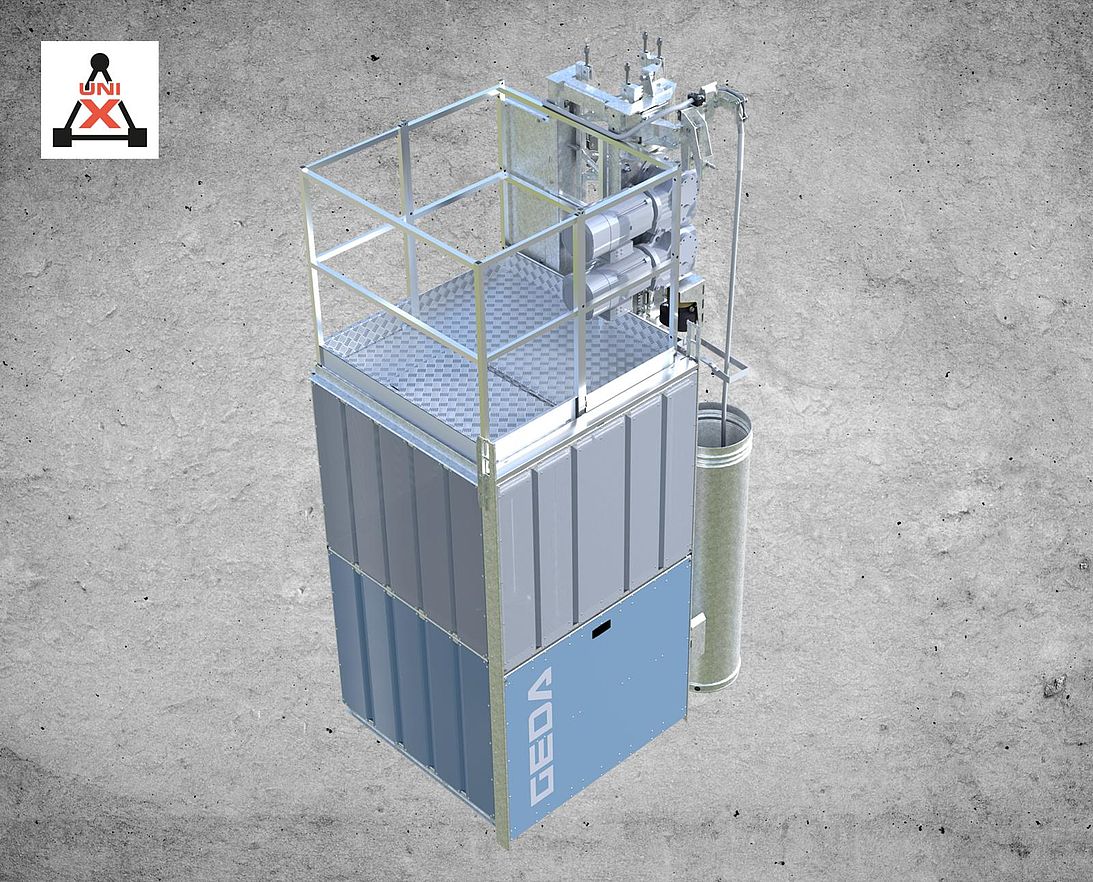

GEDA SHAFT LIFT

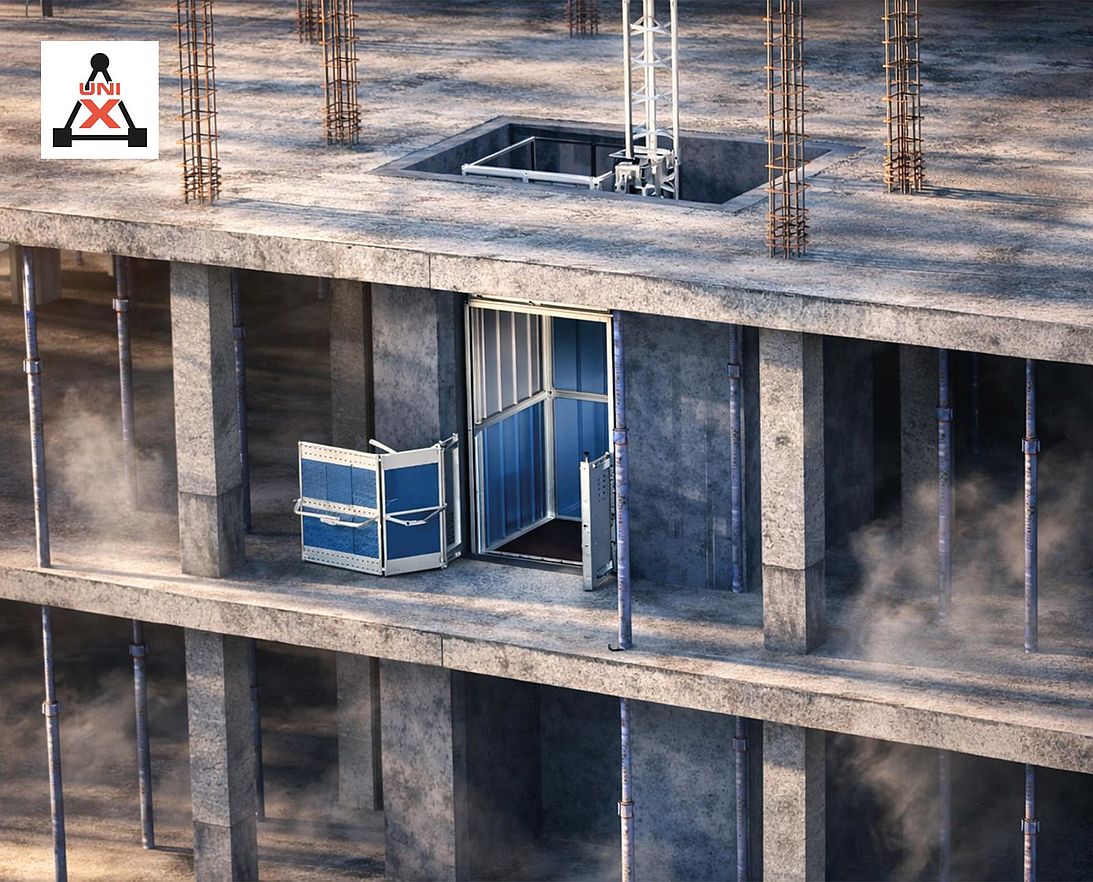

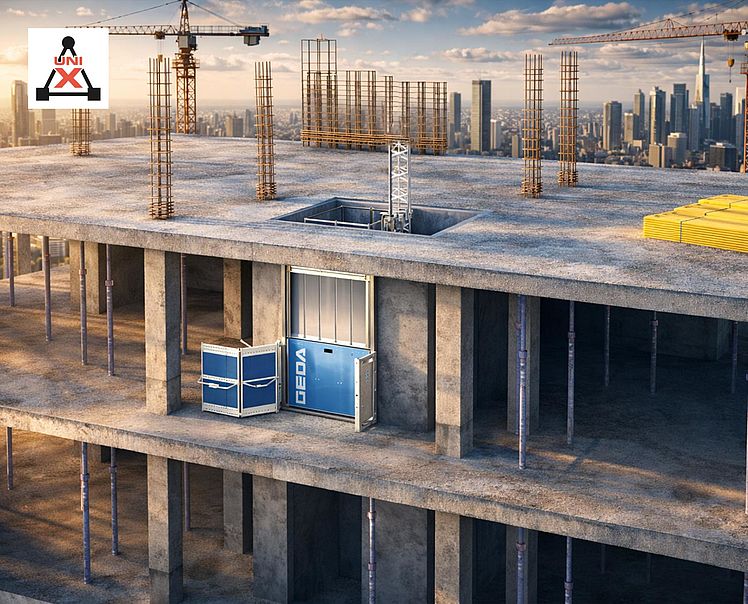

With the GEDA SHAFT LIFT, GEDA presents an innovative personnel and material lift specifically designed for use in shafts. This system offers a safe and efficient transport solution through a fully enclosed platform, suitable for both existing shafts and new constructions. The lift can be modularly integrated into various shaft sizes and provides a smooth ride thanks to the GEDA UNI-X-MAST system.

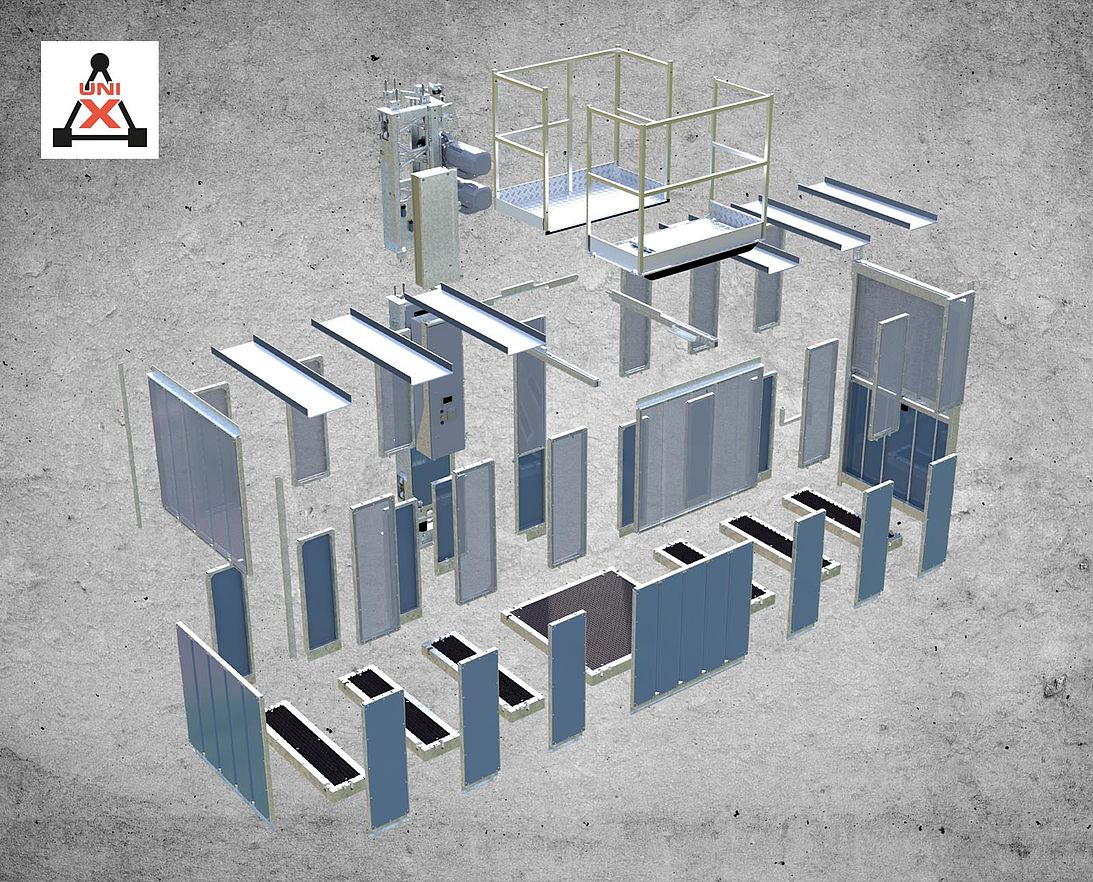

The dynamic modular design of the GEDA SHAFT LIFT allows the device to be adapted to almost any shaft with variable entry and exit sides and sizes. Additionally, the lift can be easily installed and removed both inside and outside the shaft. A special advantage: the entire car can be conveniently mounted and dismounted directly from the platform, significantly reducing the workload.
In its unassembled state, the GEDA SHAFT LIFT is particularly compact, with individual parts fitting through standard doors (90x200 cm). Additional benefits include a modern PLC control system, floor selection, and features for load and power reduction. The available size options range from interior dimensions of at least 1.3 m x 1.3 m to a maximum of 3.4 m x 1.3 m, catering to various requirements.
With the GEDA SHAFT LIFT, GEDA sets new standards in safe and flexible transport within shafts, providing a solution that is of great significance not only in the construction industry but in many other sectors as well.
An ingenious system: can be used on all GEDA rack and pinion hoists from 300 kg to 2,200 kg load capacity.
The GEDA UNI-X-MAST is registered as a 3D trademark.
The new GEDA all-round protection provides protection from corrosion and its consequential damage, maintains the functionality of components and extends their operating life.
The GEDA POWER GREASE range comprises four lubricants which cover all GEDA machine types, applications and temperature ranges.

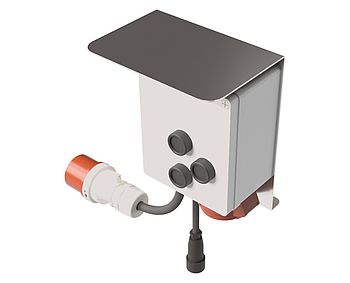

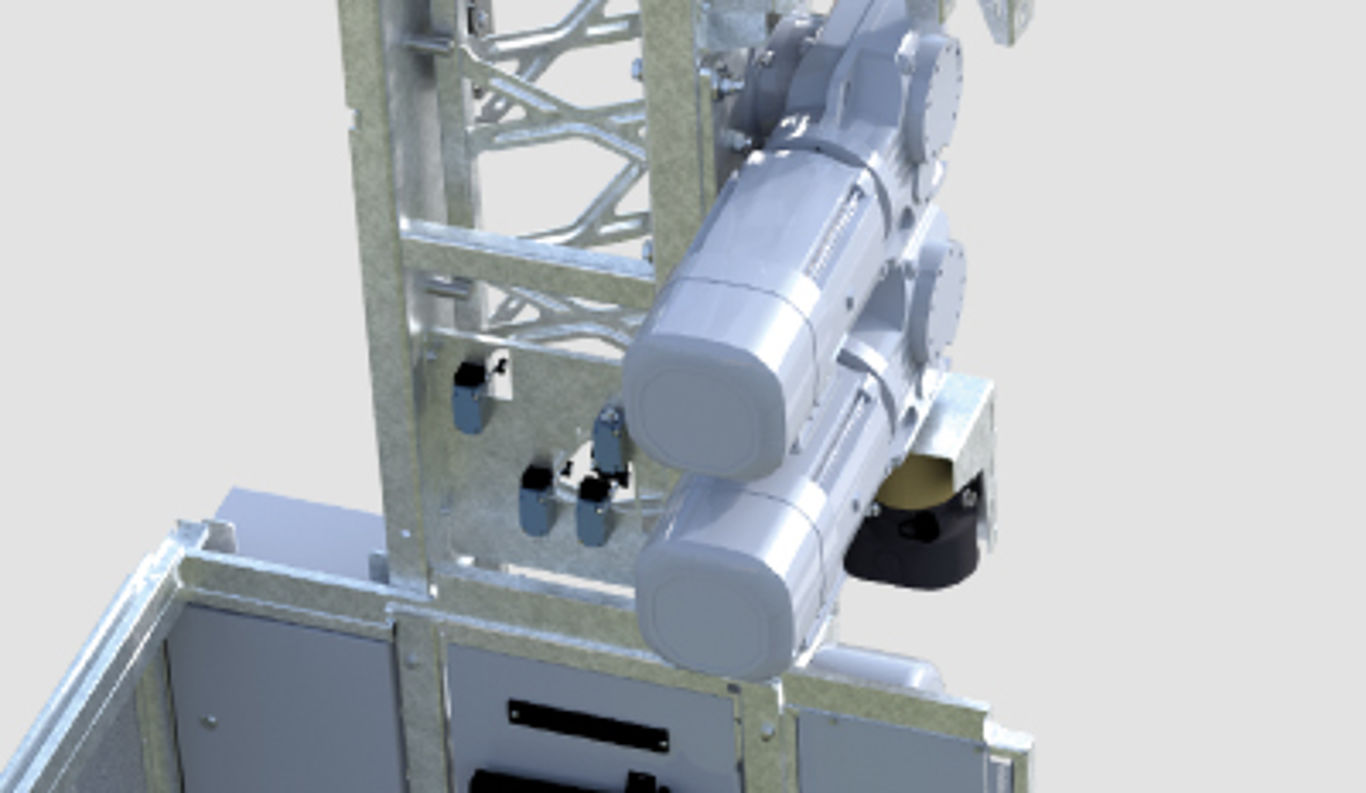

The plug-in drive unit can be quickly and easily connected to the switch box without any wiring.

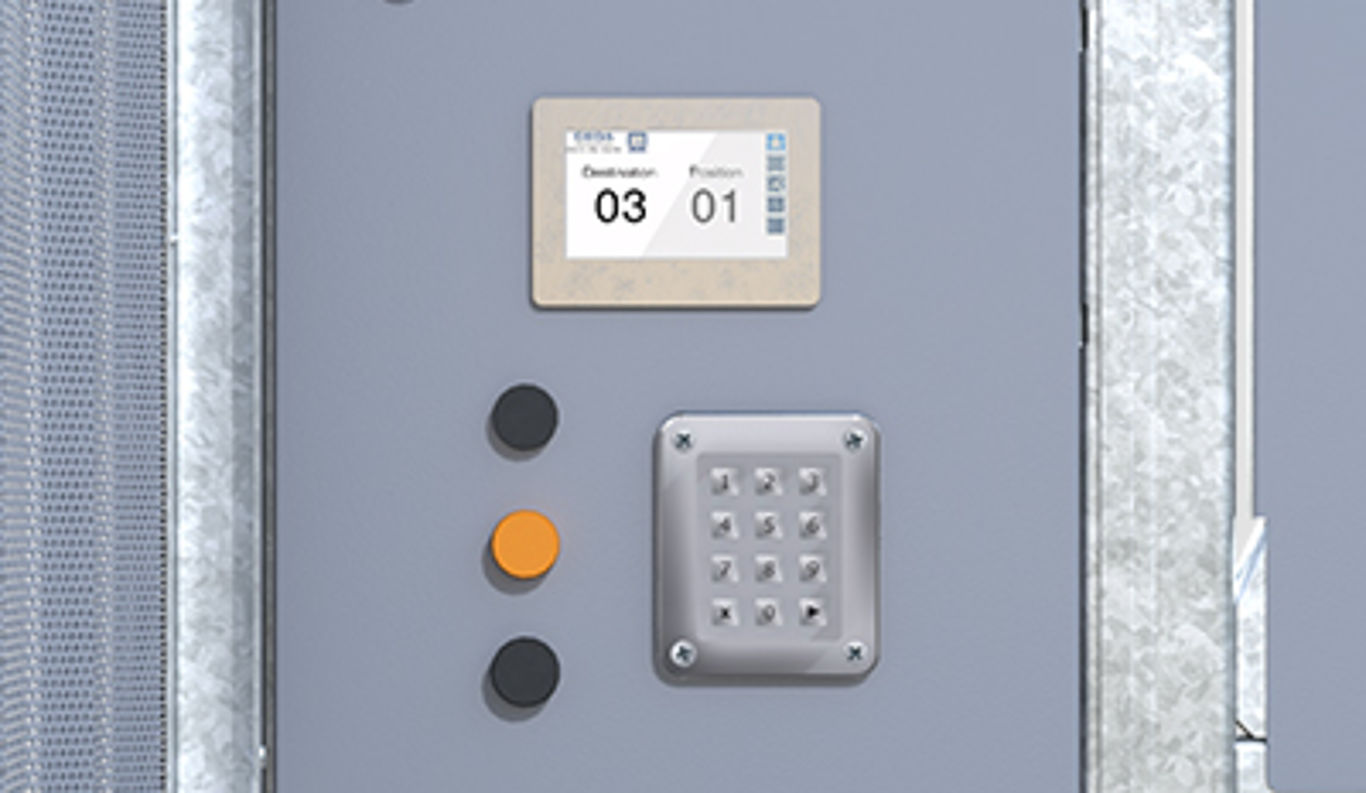

Thanks to the generous HMI, the hoist can be configured quickly and easily.

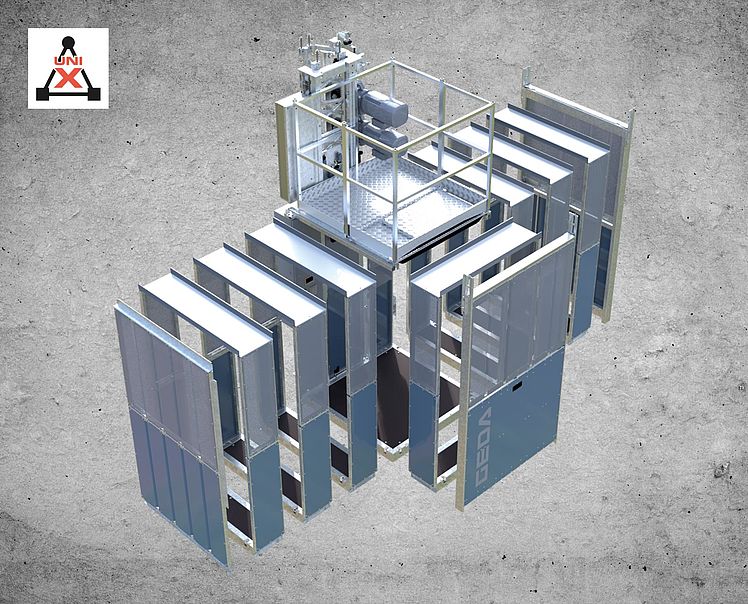

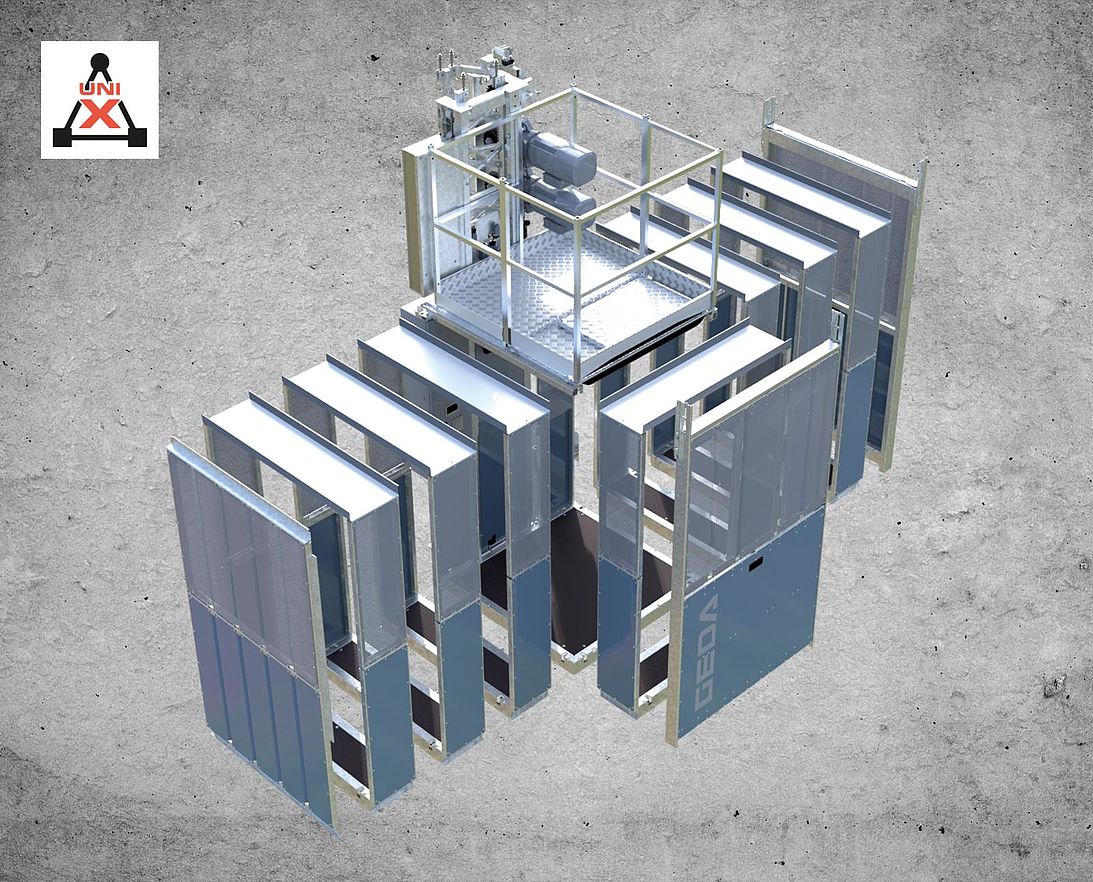

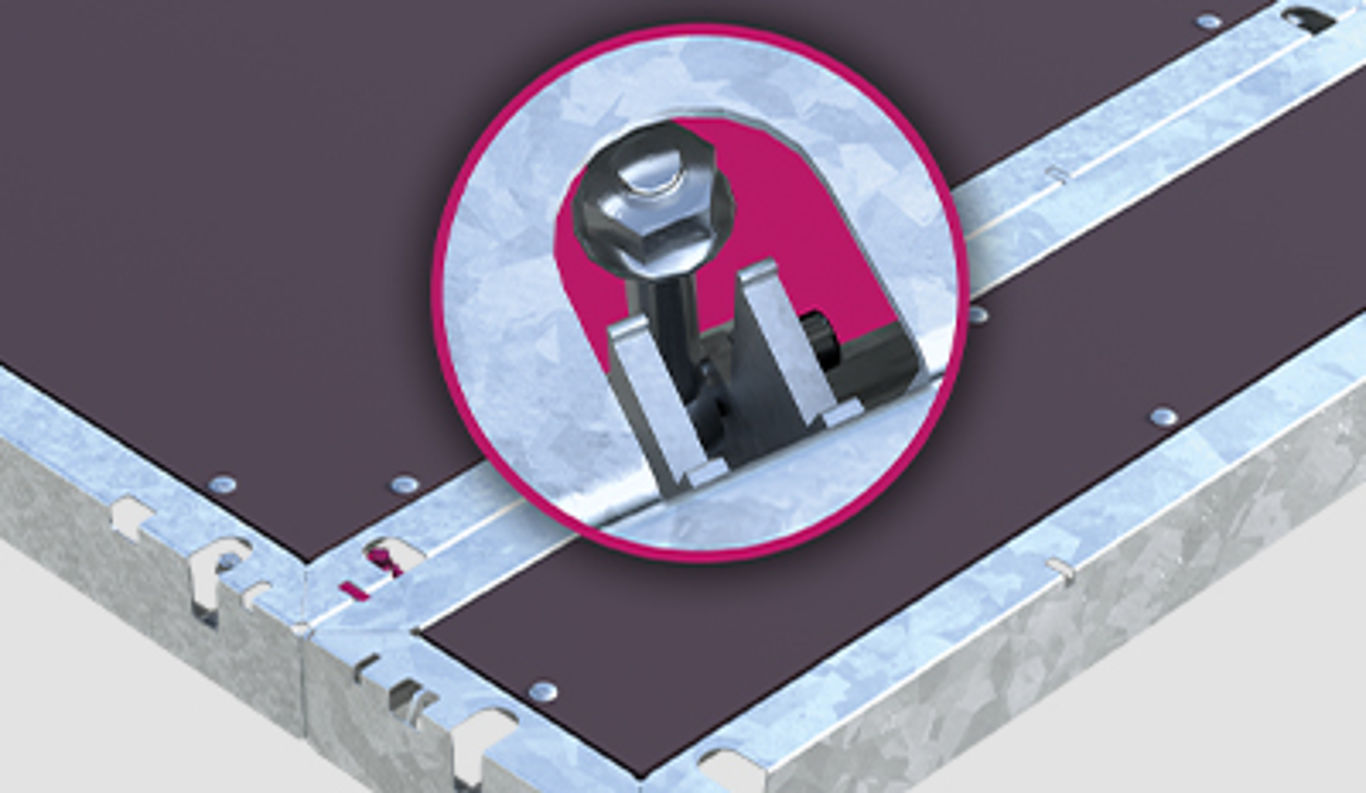

The platform modules can be hooked in with minimal effort and quickly and easily secured with captive screws.

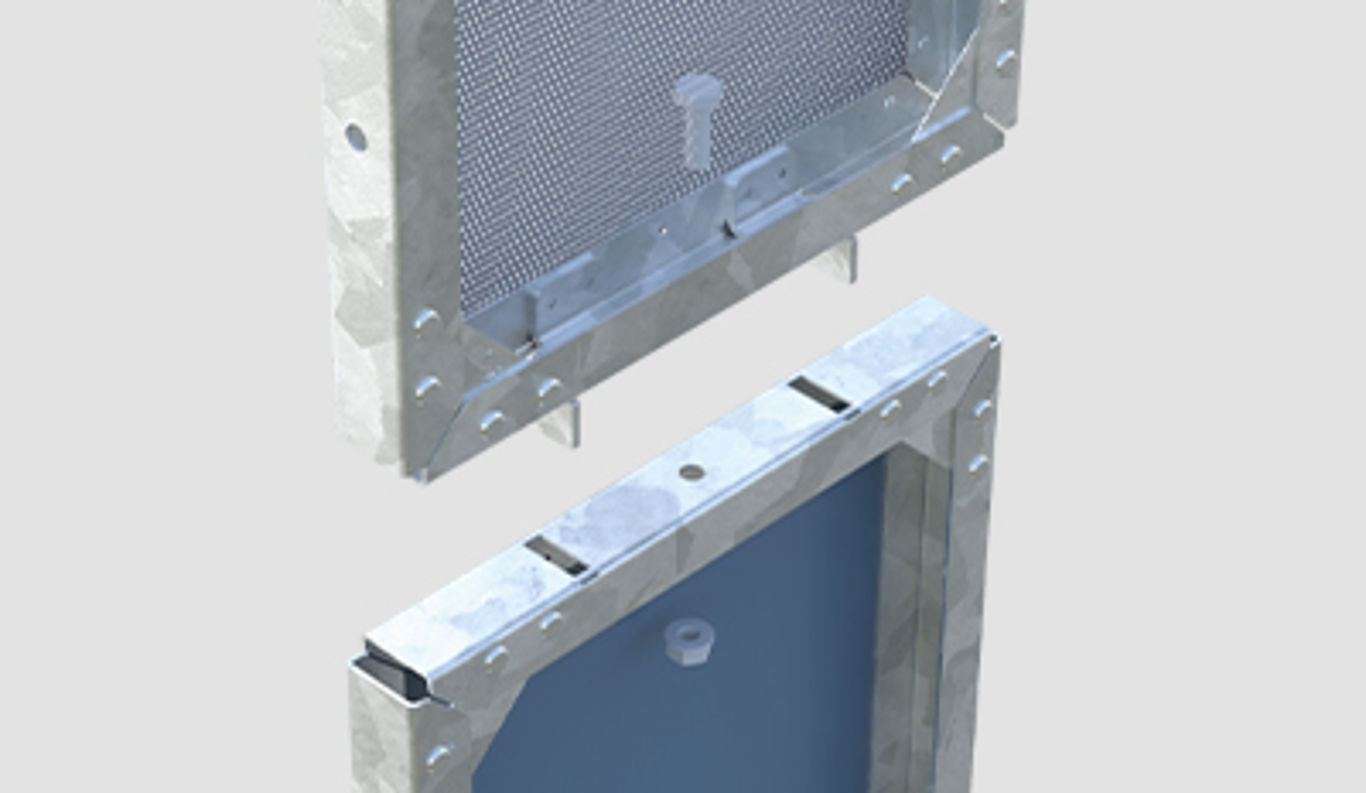

All parts of the GEDA SHAFT LIFT can be assembled quickly and easily. The plug connections speed up the process considerably.

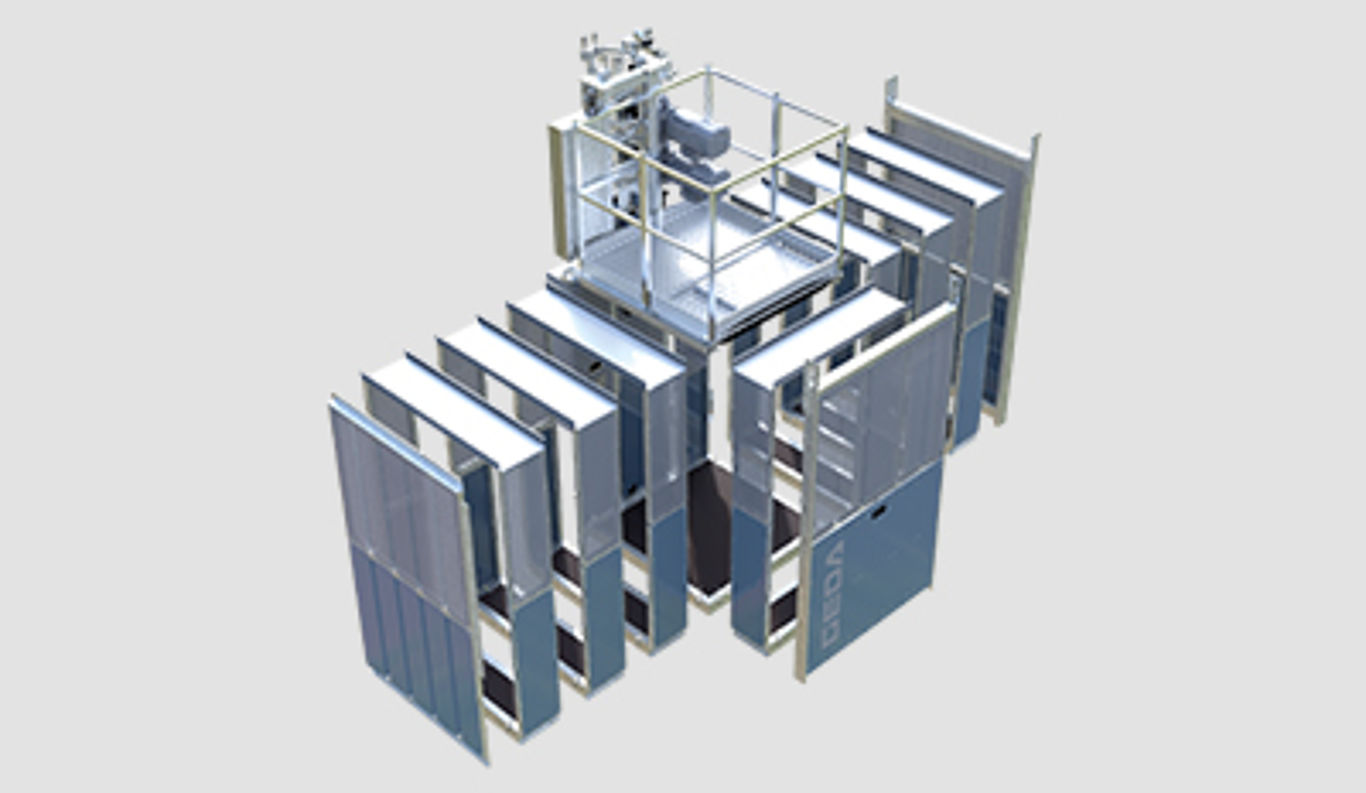

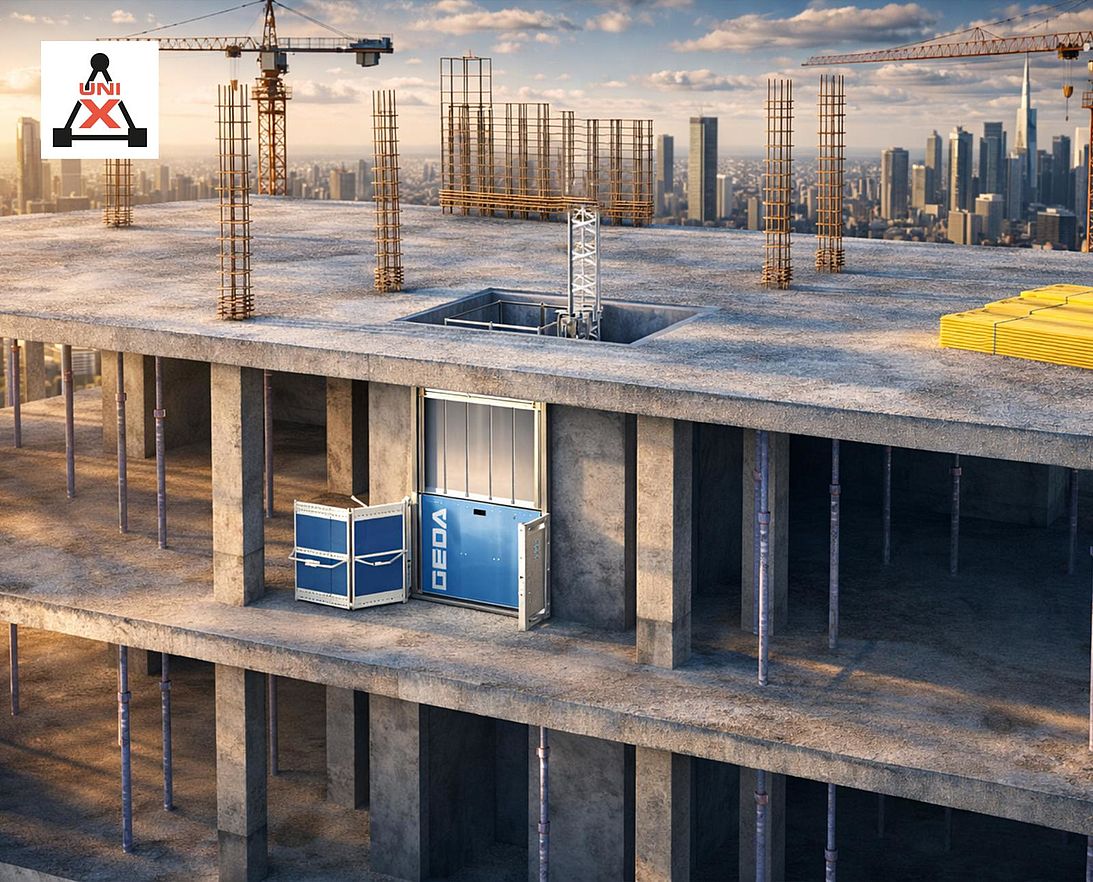

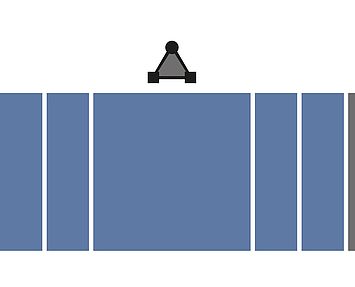

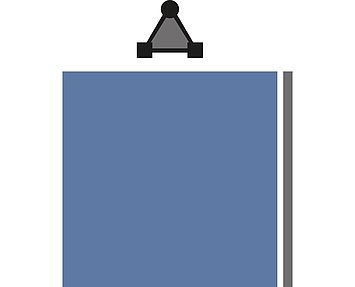

The GEDA SHAFT LIFT and the individual modules adapt perfectly to the site and shaft size.

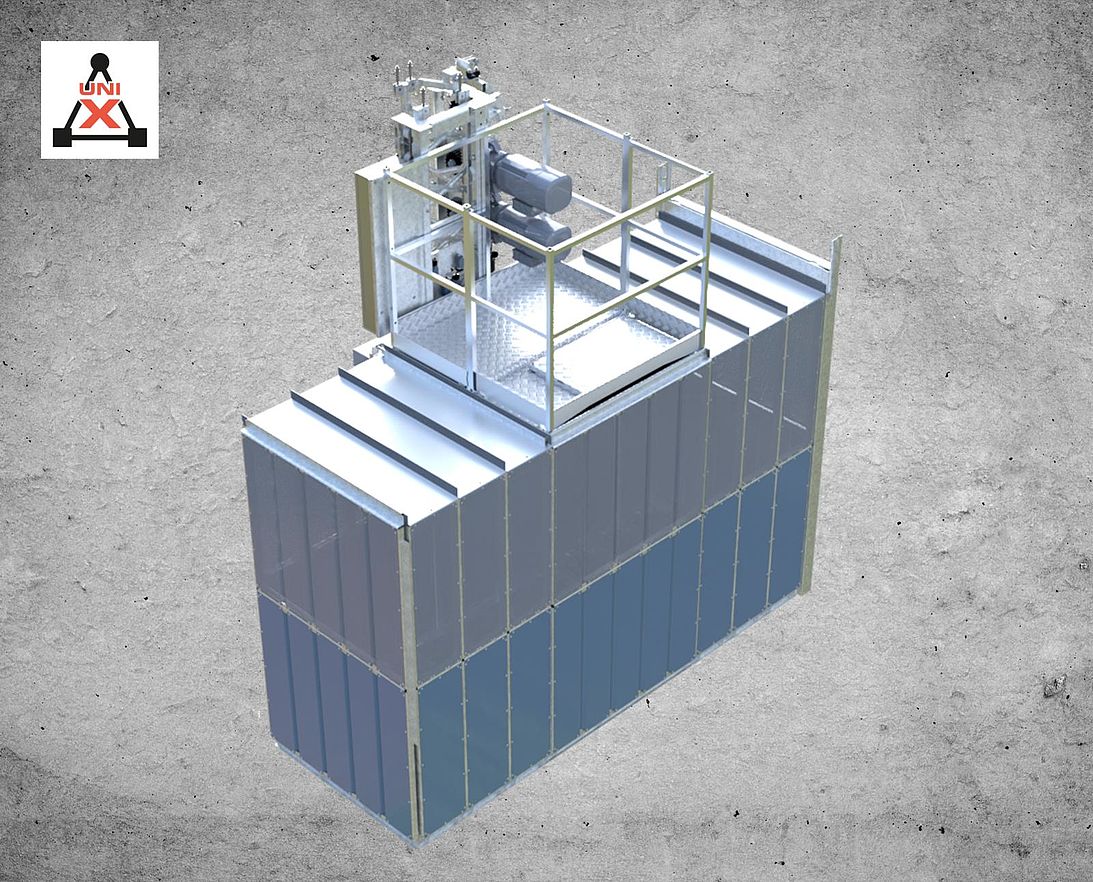

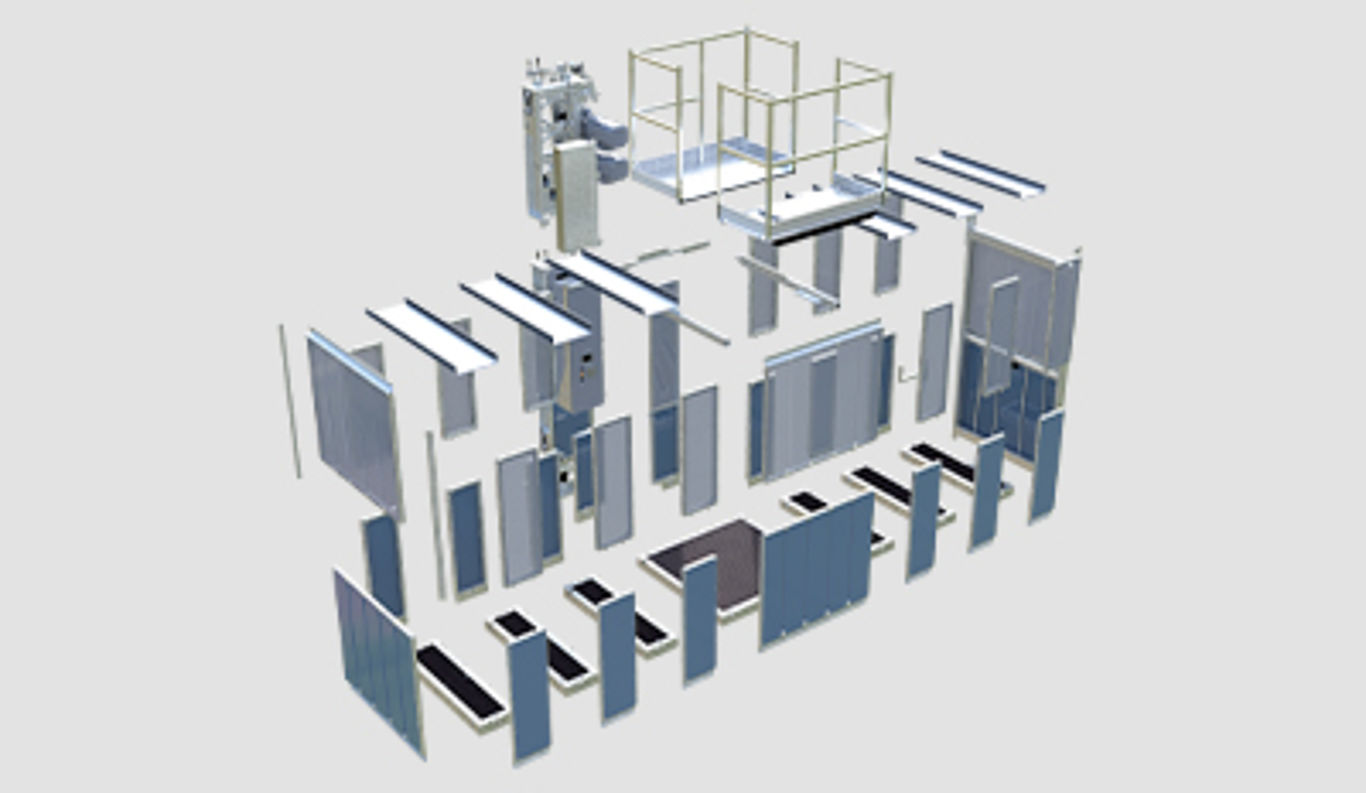

The GEDA SHAFT LIFT impresses with its compact design. When completely dismantled, all parts fit through a standard door (0.9 x 2 m).

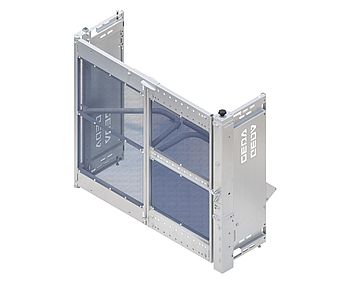

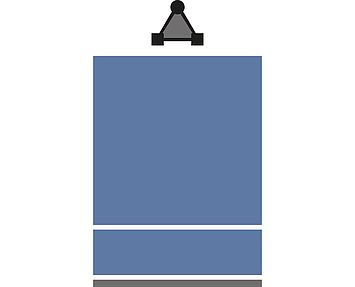

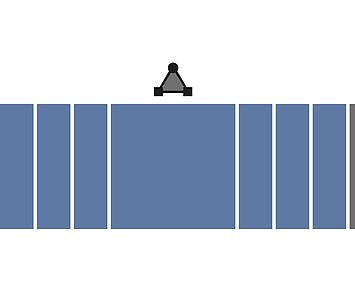

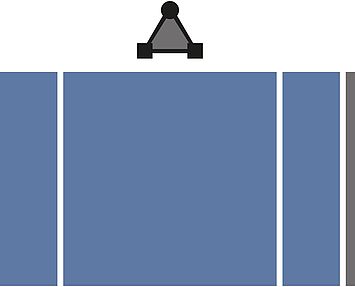

The flexible door system of the GEDA SHAFT LIFT can be adapted to almost any shaft configuration.

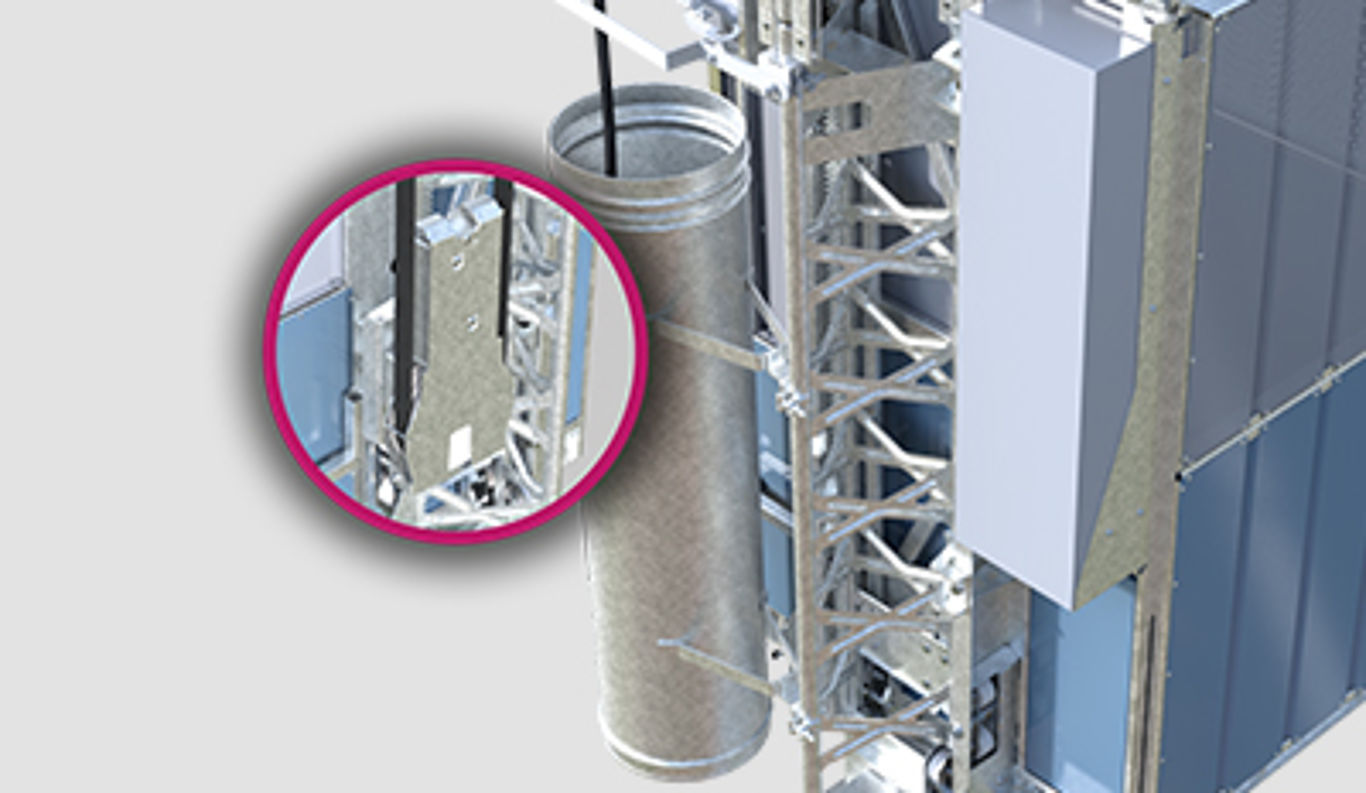

The GEDA SHAFT LIFT is designed for a lifting height of up to 150 m. The appropriate cable system is available depending on the construction site conditions.

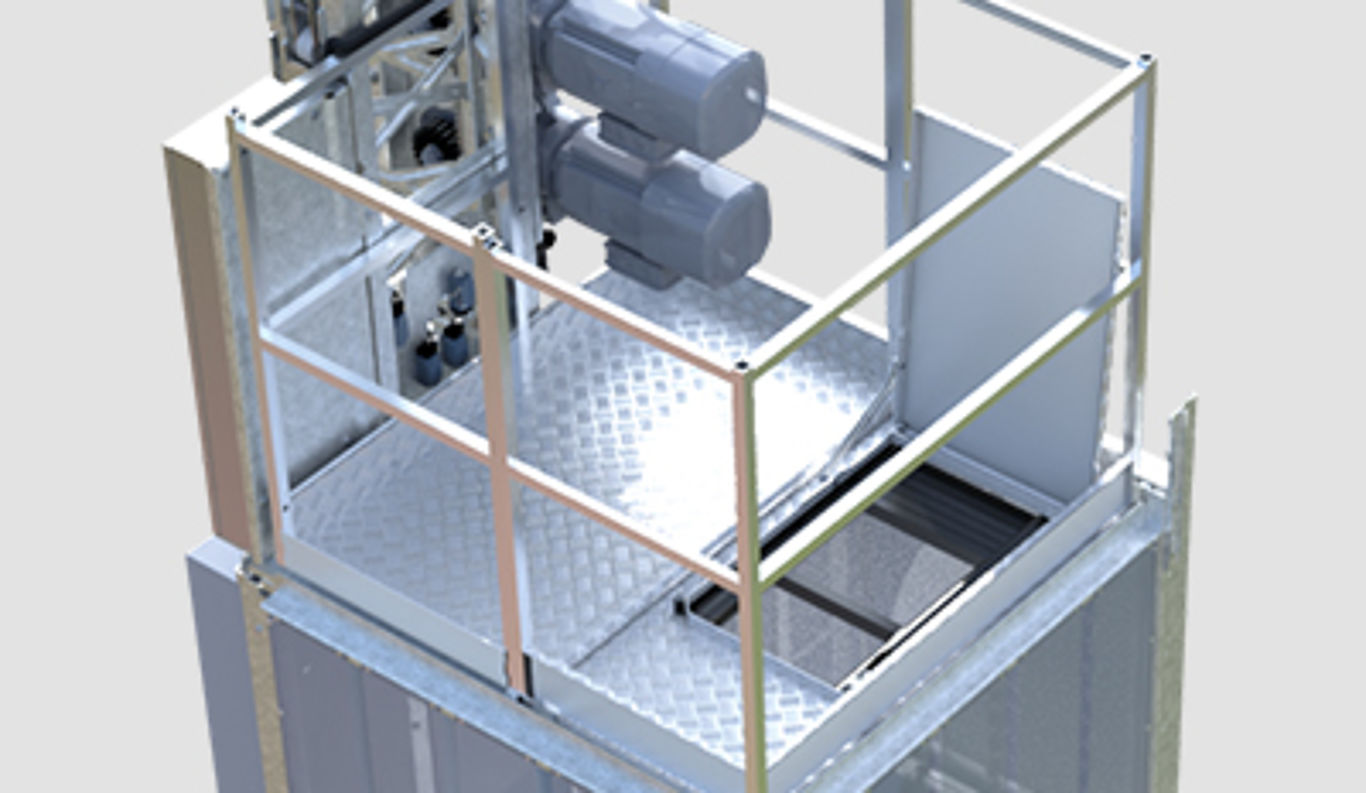

Expert personnel can quickly and easily access the hoist roof via the platform to carry out maintenance work on the drive unit.

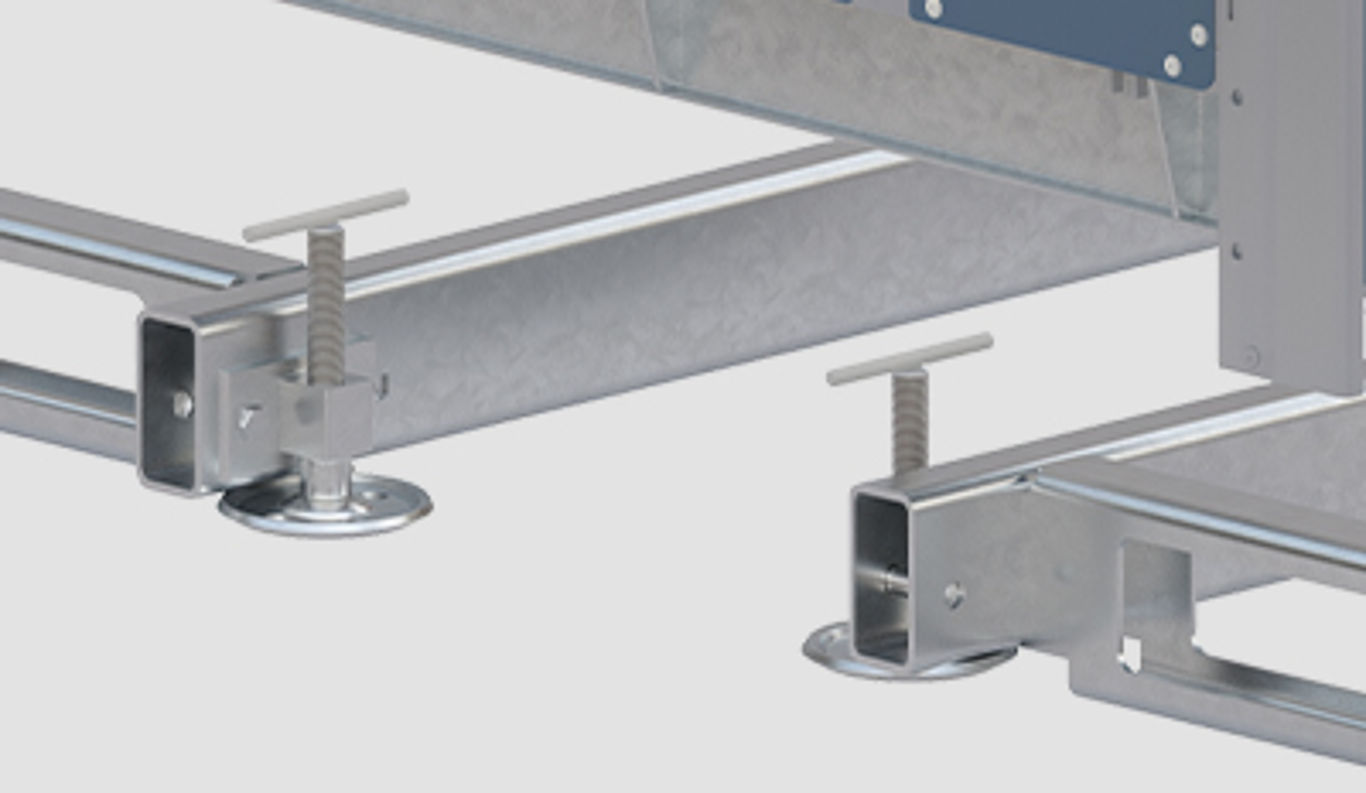

Thanks to the innovative base section and integrated spindles, the hoist can be quickly aligned at the site of use.

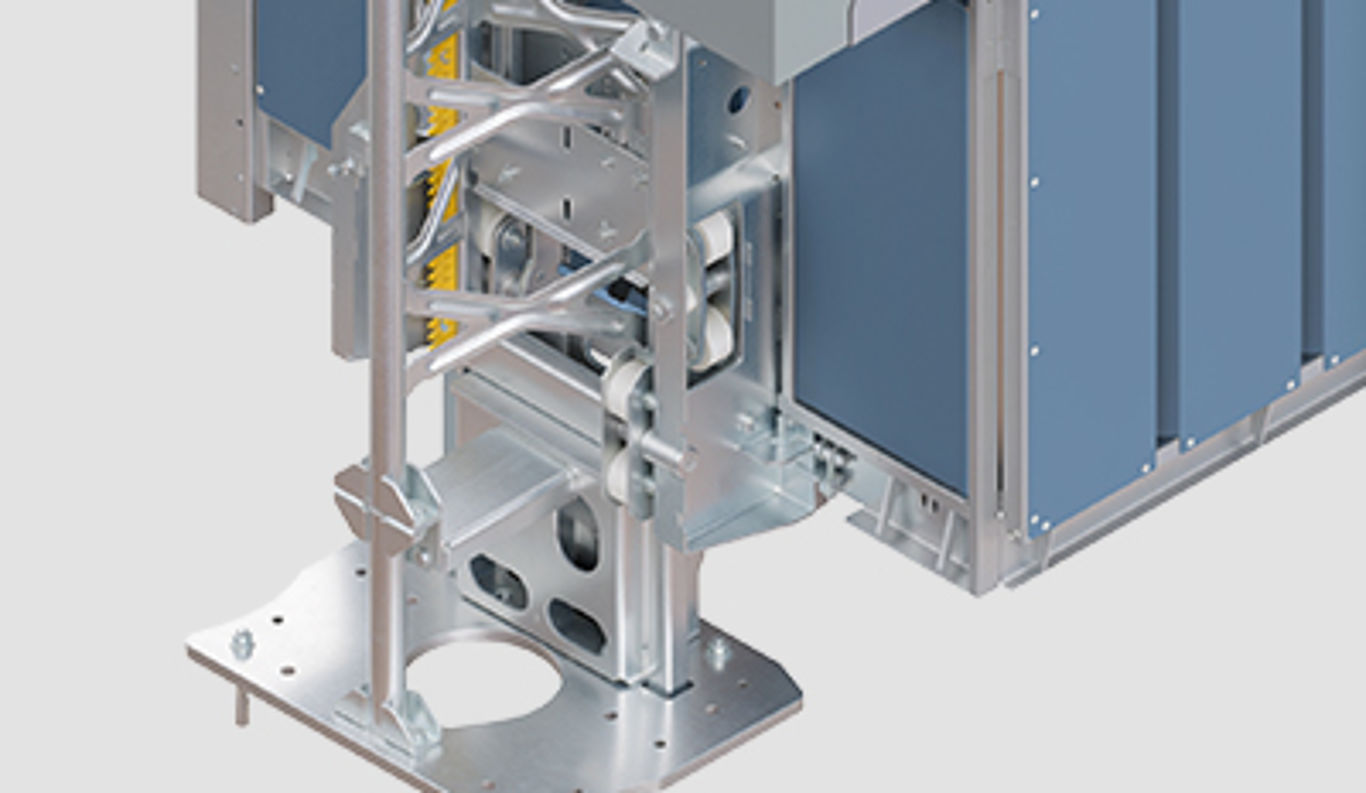

The numerous rollers on the GEDA SHAFT LIFT ensure smooth operation of the hoist.

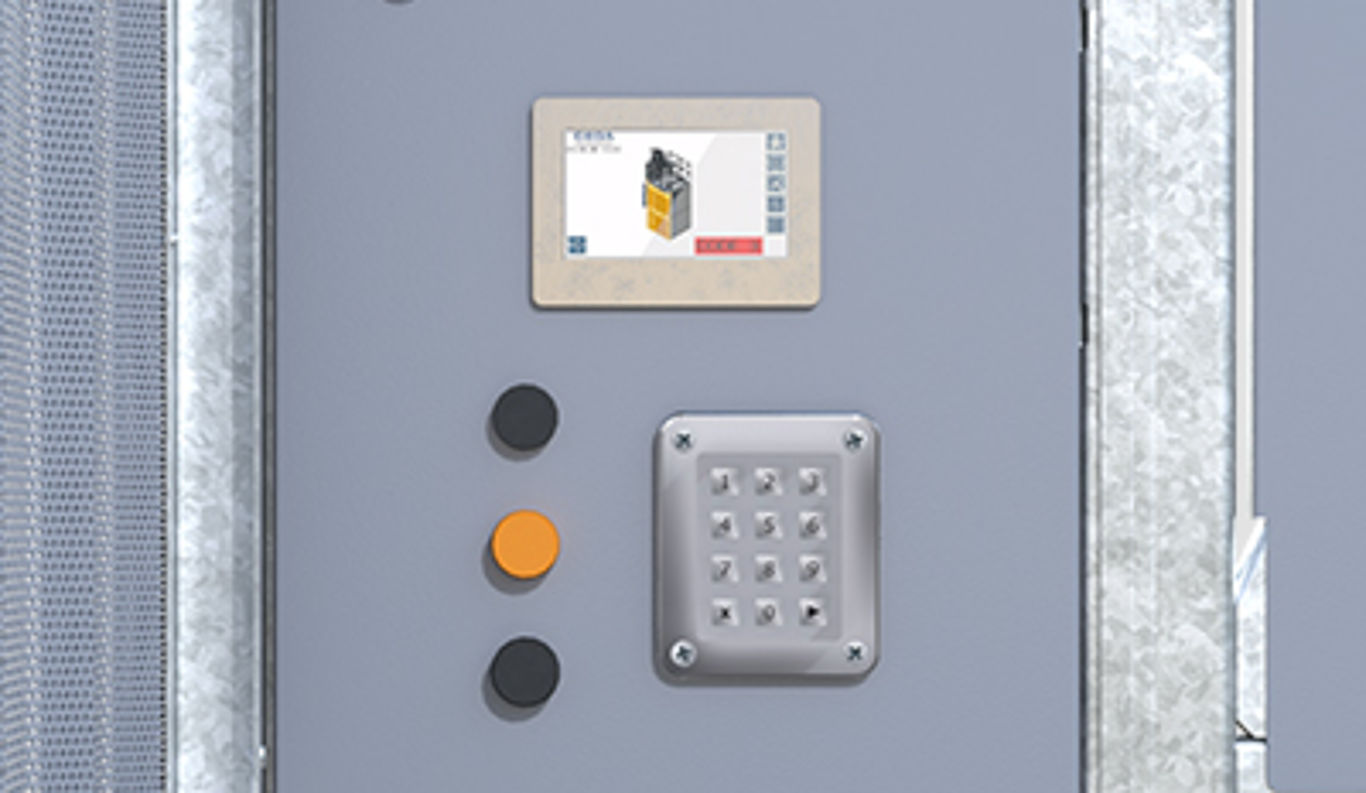

The GEDA SHAFT LIFT has a standard diagnostic system. Minor faults can be quickly identified and fixed. This means the hoist is always ready for use.
The standard lubrication system minimises wear and tear and ensures smooth running.
| Cargo | Persons and material |
| Mast system | GEDA UNI-X-MAST |
| Load capacity (material) | 1300 kg |
| Load capacity (persons) | 13 Persons |
| Lifting height | 150 m |
| Lifting speed | |
| Power supply |
