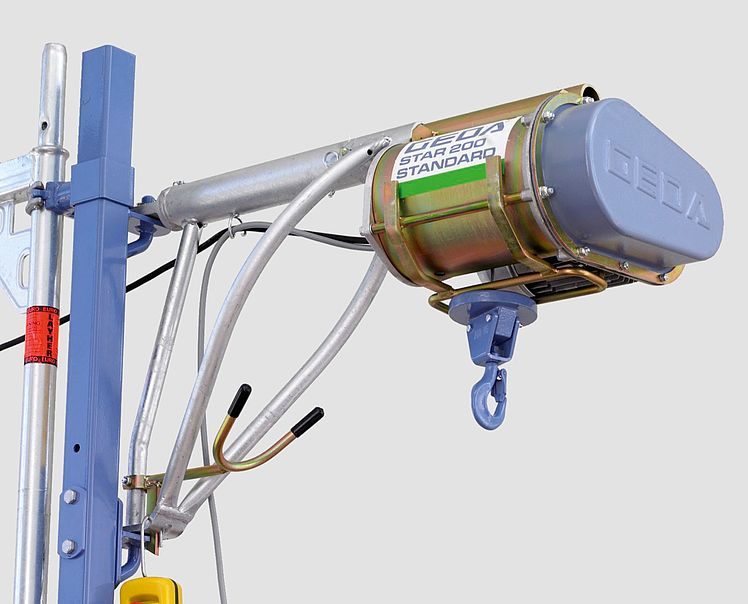

GEDA STAR

Construction workers from all sectors have known and appreciated the benefits of the GEDA Star hoists for decades.

Whether new build projects or renovation work: the versatile rope hoists impress with high load capacities and very easy material transport, even under difficult conditions. The extensive range of different load handling devices such as bucket holders, plate grabbers or rock baskets allow the rope hoists of the GEDA Star series to be ideally adapted to the requirements on site.

One particularly convenient feature is that the compact devices can be installed in any location at the scaffolding, in a window, between stories or on the roof. The electric winch can be separated from the swivel arm, allowing installation by one person.

Compare

last highlight
next highlight
Product highlights
Easy installation

As it is possible to separate the electrical winch from the swivel arm, the hoist can be assembled by one person.

Versatile fixing devices

Whether the scaffold clamp, the free-standing tripod or the floor to ceiling tie – these hoists are quick and easy to use even under tough conditions.

Numerous load carrying devices

Make it easy to transport construction materials, scaffold components and construction tools of all types.



Technical Data Refresh
last detail
next detail
Model GEDA STAR 200 STANDARD GEDA STAR 250 COMFORT
Cargo Material Material
Load capacity (material) 200 kg 250 kg
Lifting height 50 m 50 m
Rope length 51 m 51 m
Lifting speed 22 m/min 28 m/min
Power supply 1 kW / 230 V / 50 Hz / 16 A 1 kW / 230 V / 50 Hz / 16 A
default_grey
Appropriate accessories
last accessoir
next accessoir
Landing level safety gate "Simple" line blue
Landing level safety gate "Simple"
Bucket hanger line blue
Bucket hanger
Bucket hanger line blue
Bucket hanger
Bucket ring line blue
Bucket ring
Tipping container line blue
Tipping container
Tipping container line blue
Tipping container
Mortar skip line blue
Mortar skip
Brick cage line blue
Brick cage
Chain sling line blue
Chain sling
Board lifting frame line blue
Board lifting frame
Delivery cage line blue
Delivery cage
Scaffold clamp line blue
Scaffold clamp
Floor to ceiling tie line blue
Floor to ceiling tie
Tripod line blue
Tripod
Landing level safety gate "ECO S" line blue
Landing level safety gate "ECO S"
Manual control line blue
Manual control
Manual control line blue
Manual control
