GEDA 1200 ZM P

Compare

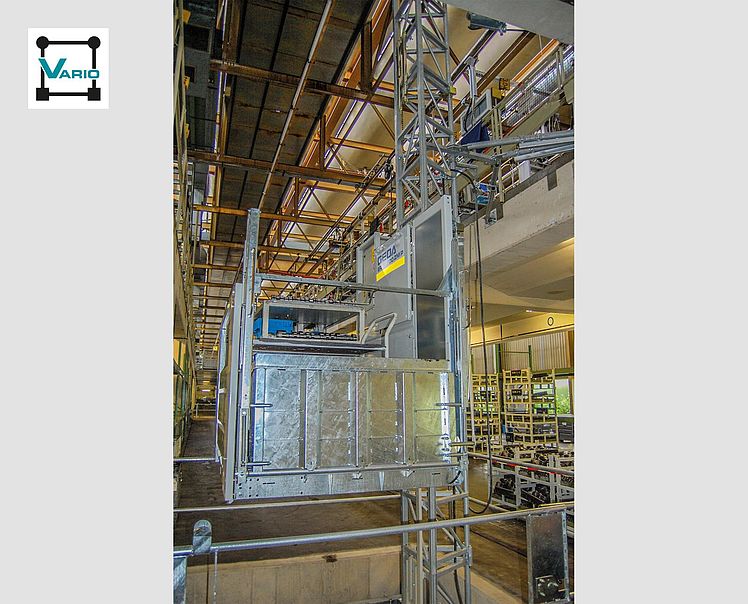

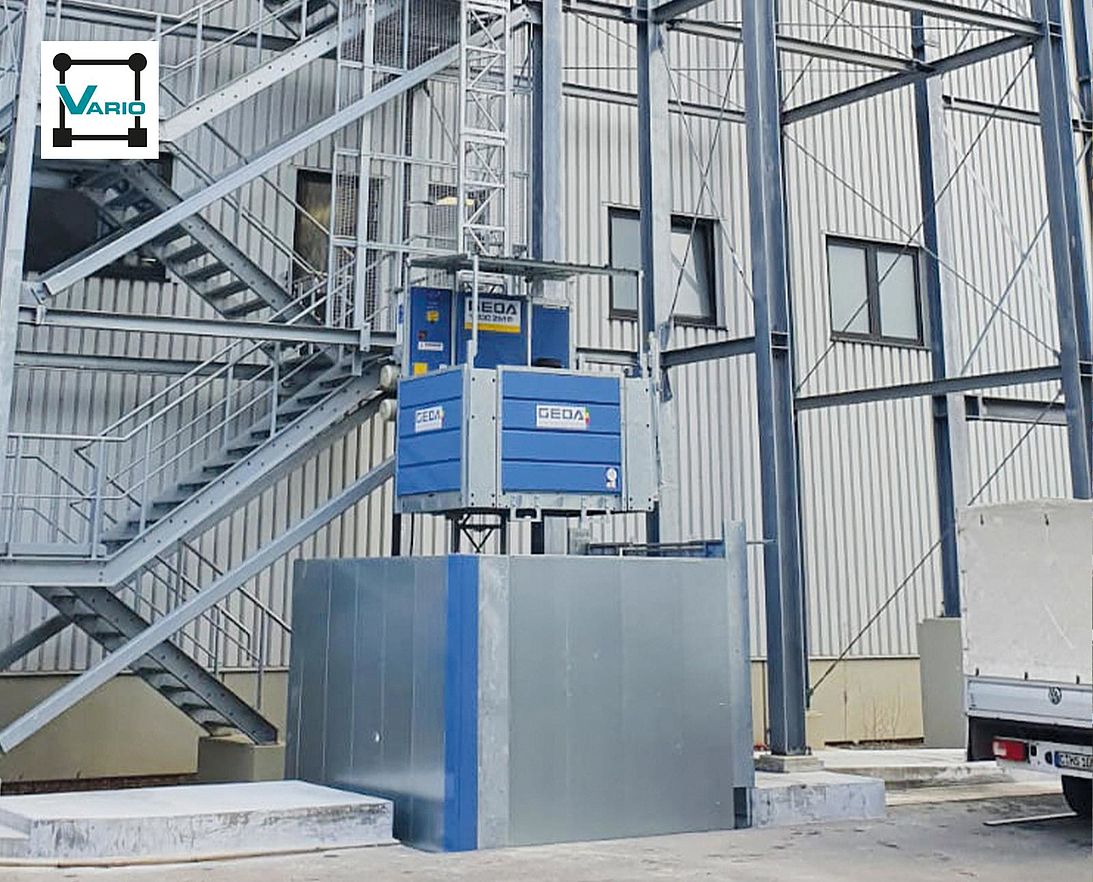

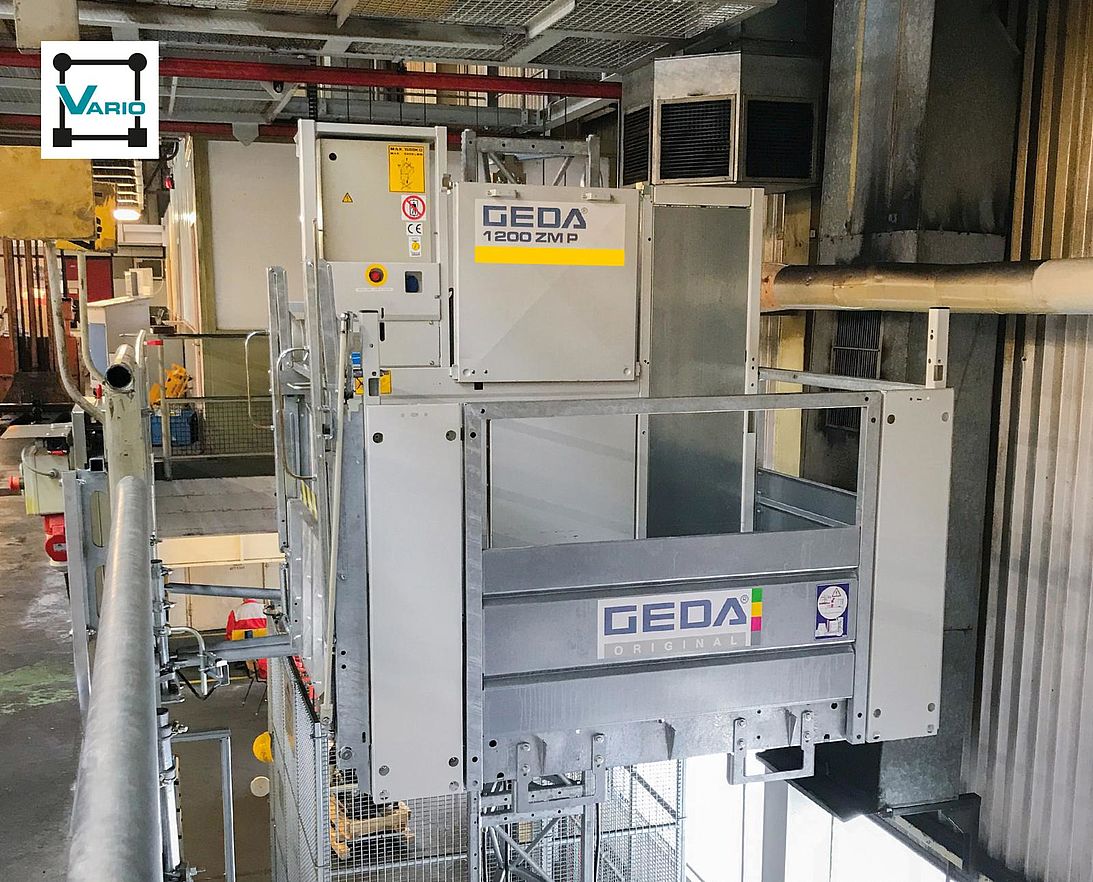

Whenever heavier loads need to be transported, the GEDA 1200 ZM P material hoist is a practical and efficient transportation system.

The GEDA VARIO-MAST system is easy to assemble directly from the platform up to an installation height of 100 m. The easy-to-handle 1.5 metre high steel mast with captive screws and secured nuts can be quickly set up without the assistance of a crane. Despite the high load capacity of 1500 kg the transport platform is guided on only one mast.

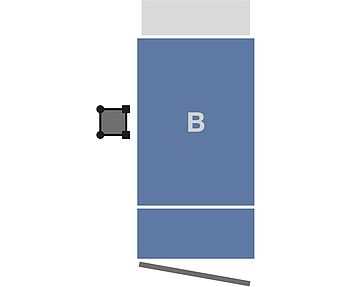

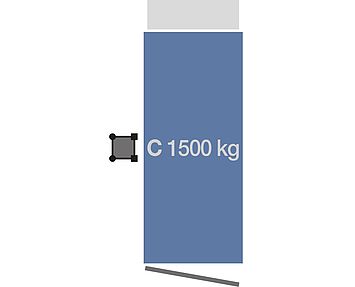

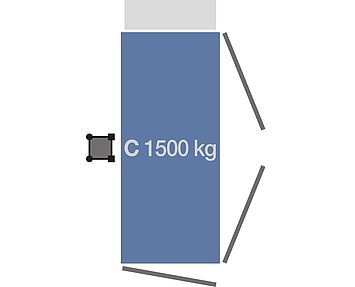

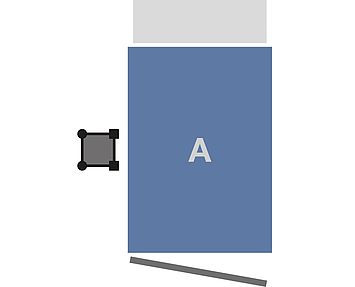

The transportation of bulky goods is no problem due to the spacious and upward opening loading platform. The GEDA 1200 ZM P has three different platform variants and can therefore be easily adapted to on-site conditions.

For a limited number of instructed users, the GEDA 1200 ZM P can be installed on machines and on buildings in non-public areas. A separate TÜV acceptance is not required.




Technical Data Refresh
Cargo Material
Mast system GEDA VARIO-MAST
Load capacity (material) 1500 kg
Lifting height 100 m
Lifting speed 9 m/min / 12 m/min / 24 m/min
Power supply 2 x 3 kW / 6.1 kW / 400 V / 50 Hz / 32 A
default_grey
Appropriate accessories
prev
next
Landing level safety gate "Comfort" line blue
Landing level safety gate "Comfort"
Landing level safety gate "Standard" line blue
Landing level safety gate "Standard"
Set of mast tie (Scaffold) line blue
Set of mast tie (Scaffold)
Floor and wall tie line blue
Floor and wall tie
Cable permanent line blue
Cable permanent

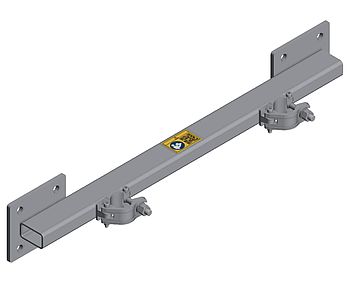

Set of mast tie line blue
Set of mast tie
Roof line blue
Roof
Limit switch activating sheet line blue
Limit switch activating sheet
Trailing cable guide line blue
Trailing cable guide
GEDA VARIO-MAST line blue
GEDA VARIO-MAST
Cable bin 30 m line blue
Cable bin 30 m
Cable bin 50 m line blue
Cable bin 50 m
Cable bin 75 m line blue
Cable bin 75 m
Cable bin 100 m line blue
Cable bin 100 m
Base enclosure line blue
Base enclosure
Anti-smashing-device line blue
Anti-smashing-device

Know-how in use To the References

prev
next

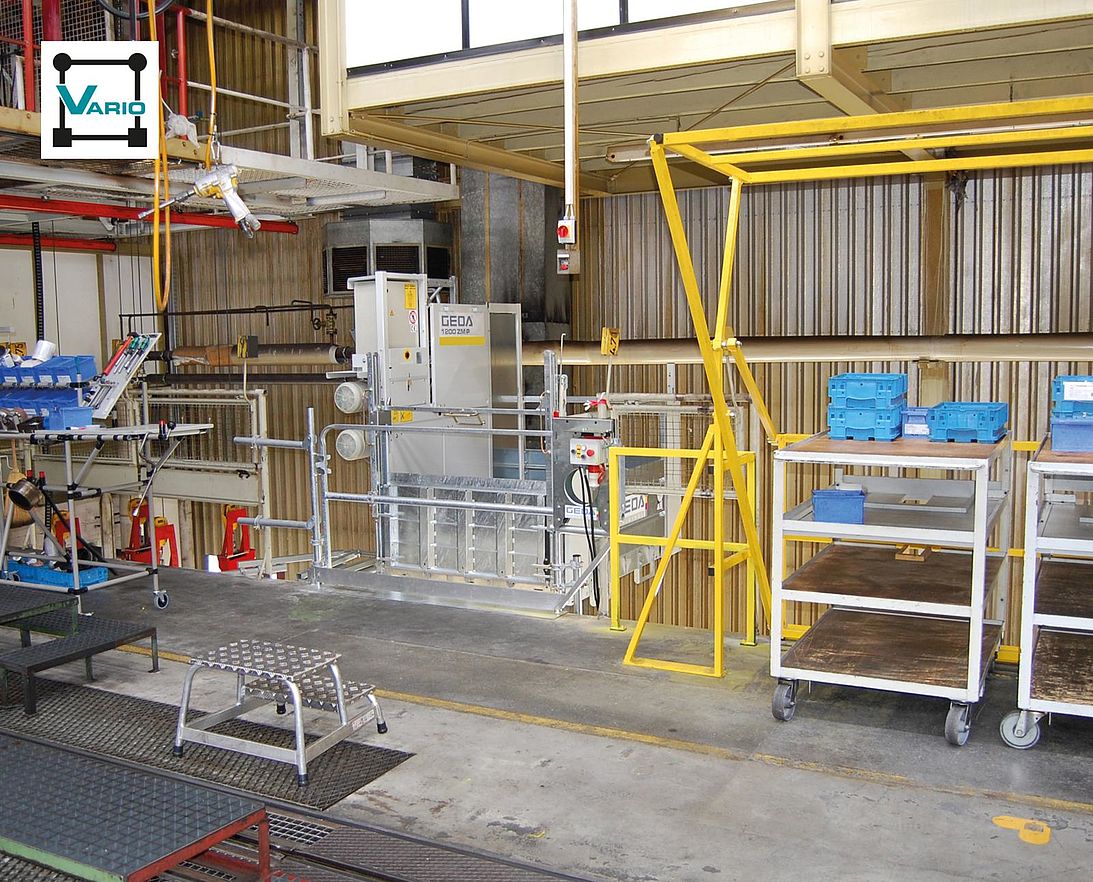

    Factory hall Deutz AG Ulm
