With the rope suspended working platforms from GEDA, you can work on building façades, but also on silos, towers, cooling towers, industrial plants, pits, etc. without a scaffold.
The platform offers enough space for people and materials. You can exactly adjust the working height of the platform to the centimetre, which always grants ergonomic posture.
The hot-dip galvanized outriggers on the roof are easily installed and removed because of their plug connections. The components are very lightweight and can be transported by one person. This facilitates moving the platform.
Angle track section and brackets make it possible to adapt the platform the the different shapes of the buildings.
GEDA rope suspended working platforms are of very high technical standard – the integrated inclination compensating device and the overload safety device allow for safe work!
|Model||GEDA AB 450||GEDA AB 650|
|Cargo||Persons and material||Persons and material|
|Traction force||450 kp||650 kp|
|Lifting speed||8 m/min||8 m/min|
|Power supply||1.4 kW / 400 V / 50 Hz / 16 A||1.4 kW / 400 V / 50 Hz / 16 A|
|Platform length||1 m - 14 m||1 m - 14 m|
|Control voltage||48 VAC||48 VAC|
Know-how in use To the References
|Device||Technical details||Number of machines|
|GEDA PH 2032||
Lifting height: 185 m

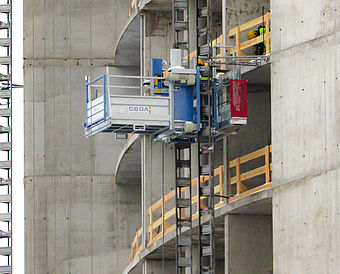

|GEDA AB 650||
Lifting height: 190 m
