GEDA 1500 Z/ZP

Compare

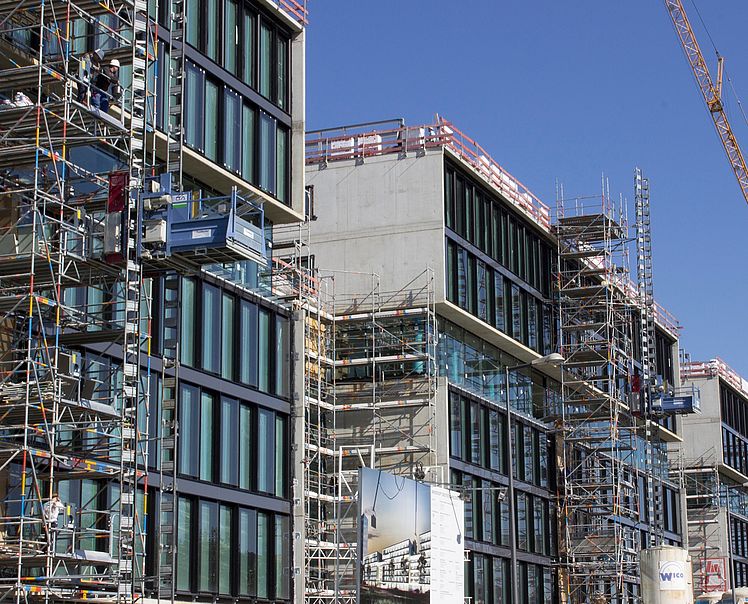

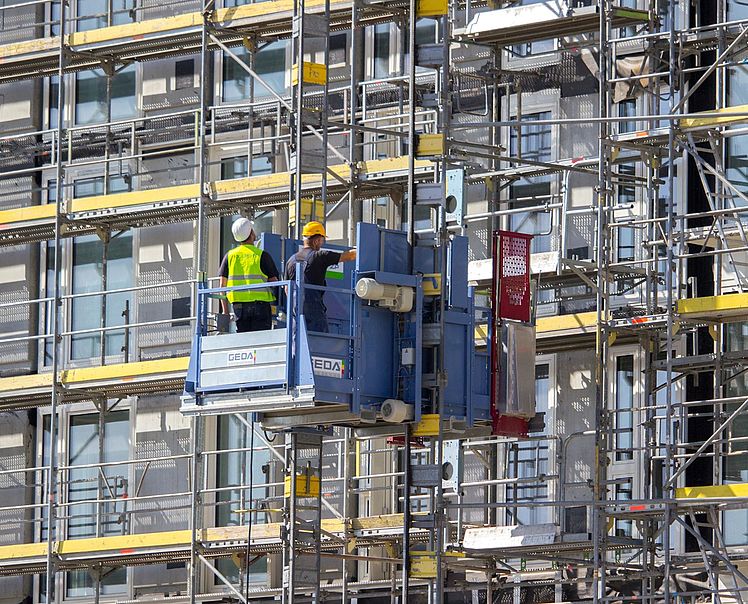

The GEDA 1500 Z/ZP has two separate control systems and can be used either as a material hoist only or as a transport platform for passengers and materials. The transport platform control with a speed of 12 m/min is activated for transporting passengers and materials. For transporting construction materials only, the device is switched to the material hoist mode with a lifting speed of 24 m/min.

One device, numerous possibilities: the double-mast GEDA 1500 Z/ZP transport platform ideally adapts to virtually any conditions on site thanks to the convenient modular system with 14 different platform versions and different load capacities. The large loading platform variants of the GEDA 1500 Z/ZP offer plenty of space – even for transporting particularly heavy and bulky materials.

Despite high load capacities of up to 2000 kg, the proven double mast system ensures a stable and smooth travelling motion.









Logo GEDA Central
GEDA CENTRAL is an intelligent online-platform for digital services for your GEDA hoists
Learn more Register

prev
next
Product highlights
GEDA UNI-X-MAST System

An ingenious system: can be used on all GEDA rack and pinion hoists from 300 kg to 2,200 kg load capacity.

GEDA Corrosion Protection

The new GEDA all-round protection provides protection from corrosion and its consequential damage, maintains the functionality of components and extends their operating life.

Automatic lubrication device standard

The automatic lubrication system reduces maintenance costs.

Diagnostic system

The useful diagnostic system provides quicker and easier identification of errors.

Useful scaffold bracket

A special bracket enables hazard-free transport of longer scaffold elements.

GEDA POWER GREASE

The GEDA POWER GREASE range comprises four lubricants which cover all GEDA machine types, applications and temperature ranges.

MAKE YOUR HOIST SMART

GEDA Transport Platforms are READY for the new GEDA Machine Management! Enter the digital world of GEDA!



Technical Data Refresh
Cargo Persons and material
Mast system GEDA UNI-X-MAST
Load capacity (material) 2000 kg
Load capacity (persons) 7 Persons
Lifting height 100 m
Lifting speed 12 m/min / 24 m/min
Power supply 2 x 3 kW / 6.1 kW / 400 V / 50 Hz / 32 A
