GEDA MULTILIFT P12 P

Compare

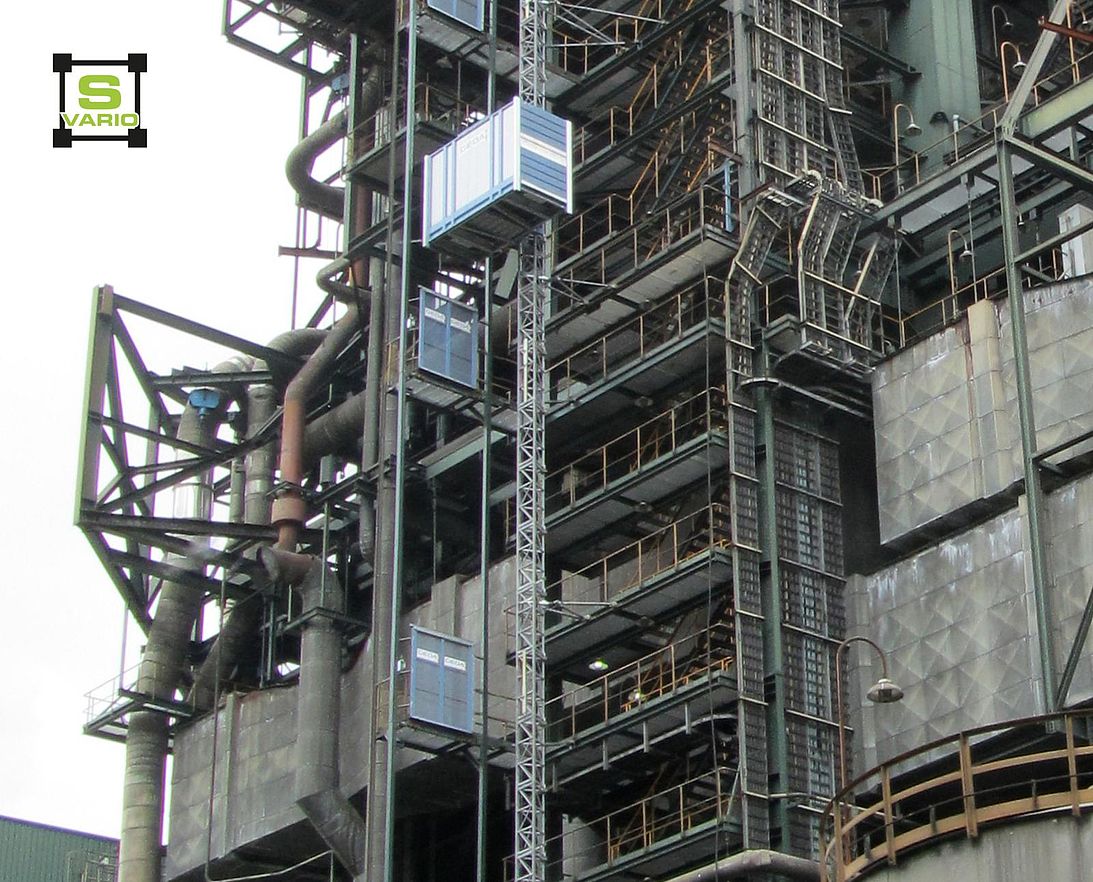

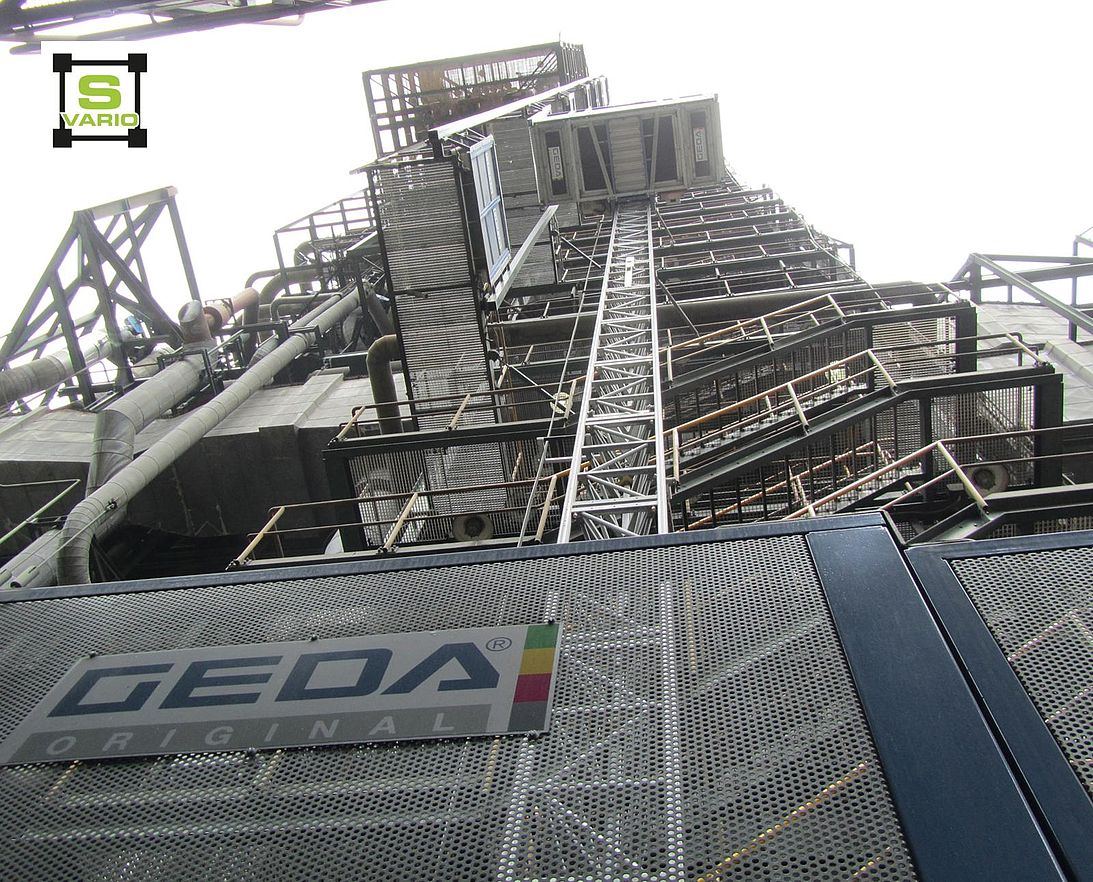

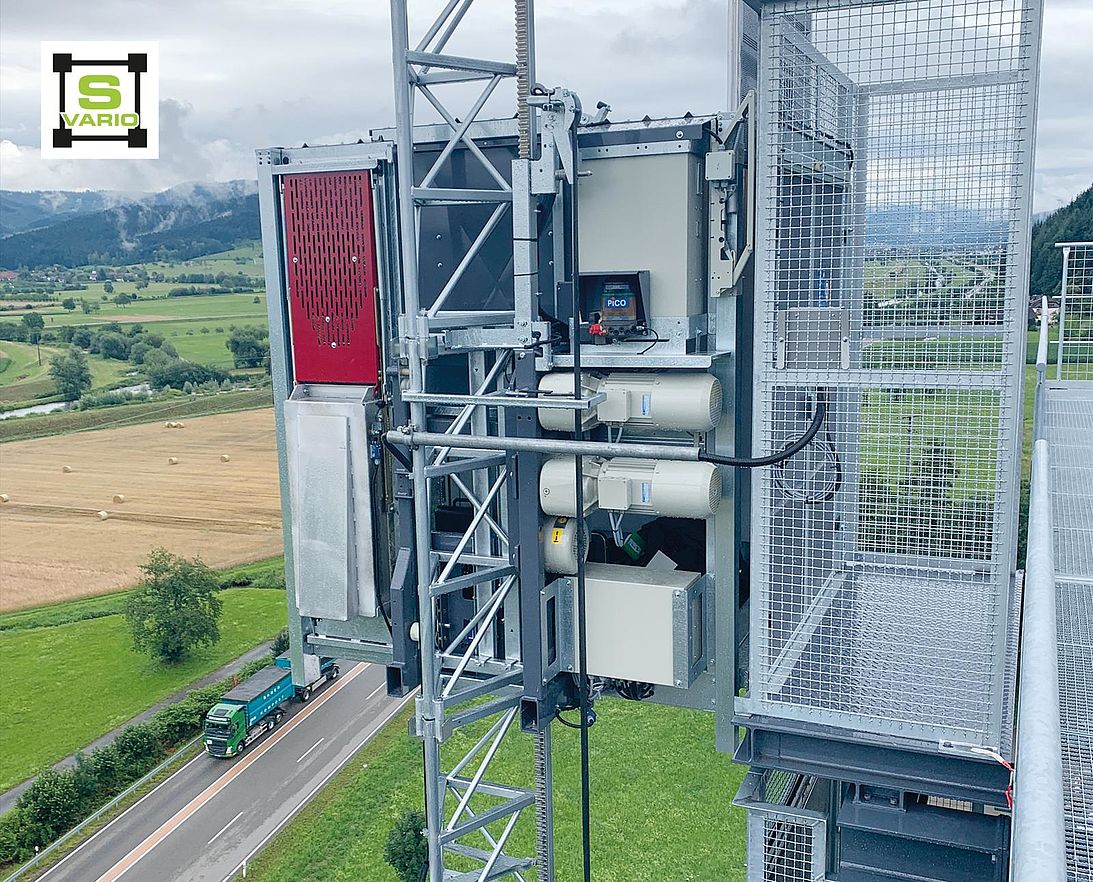

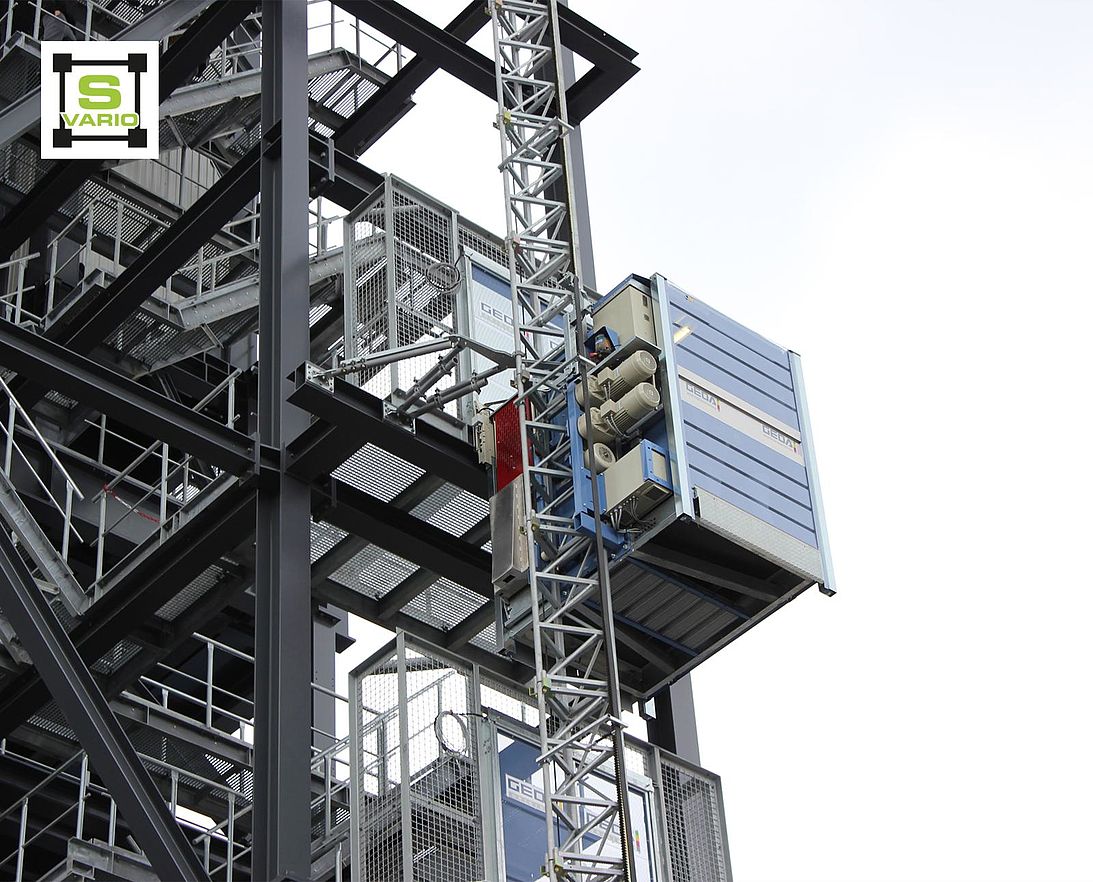

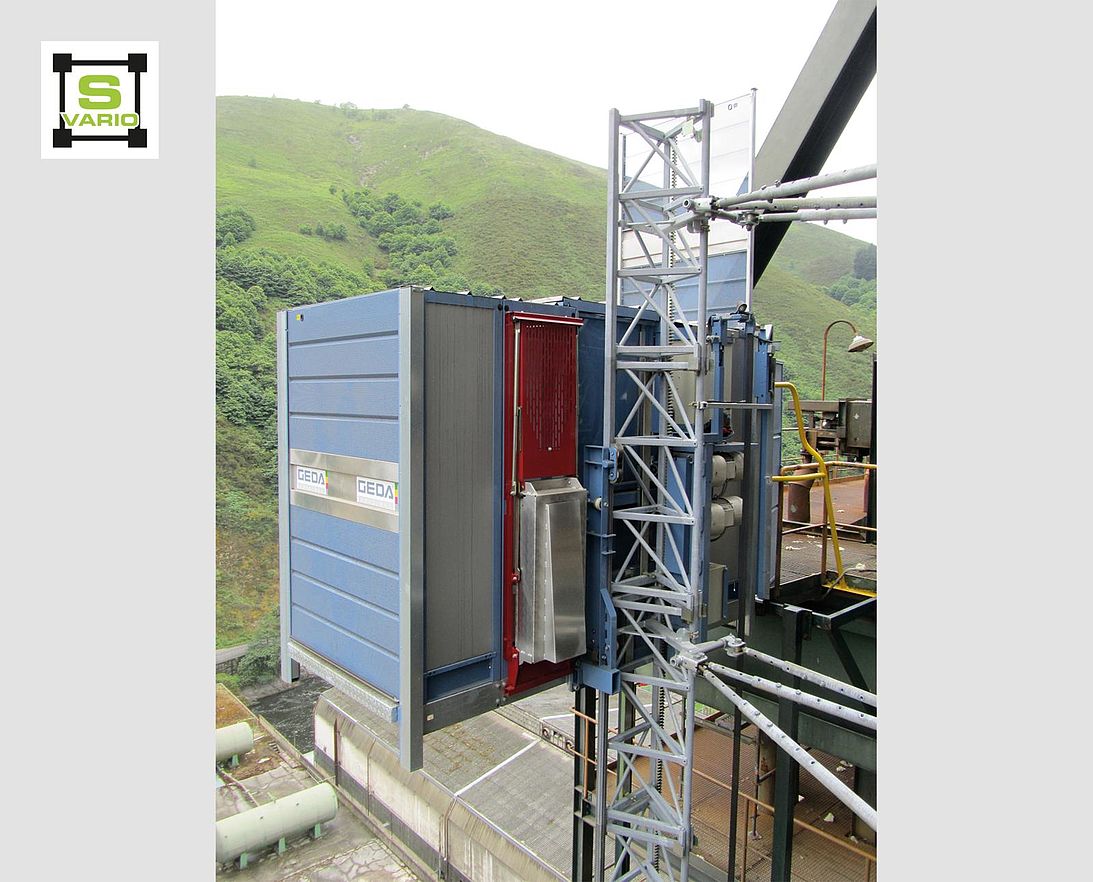

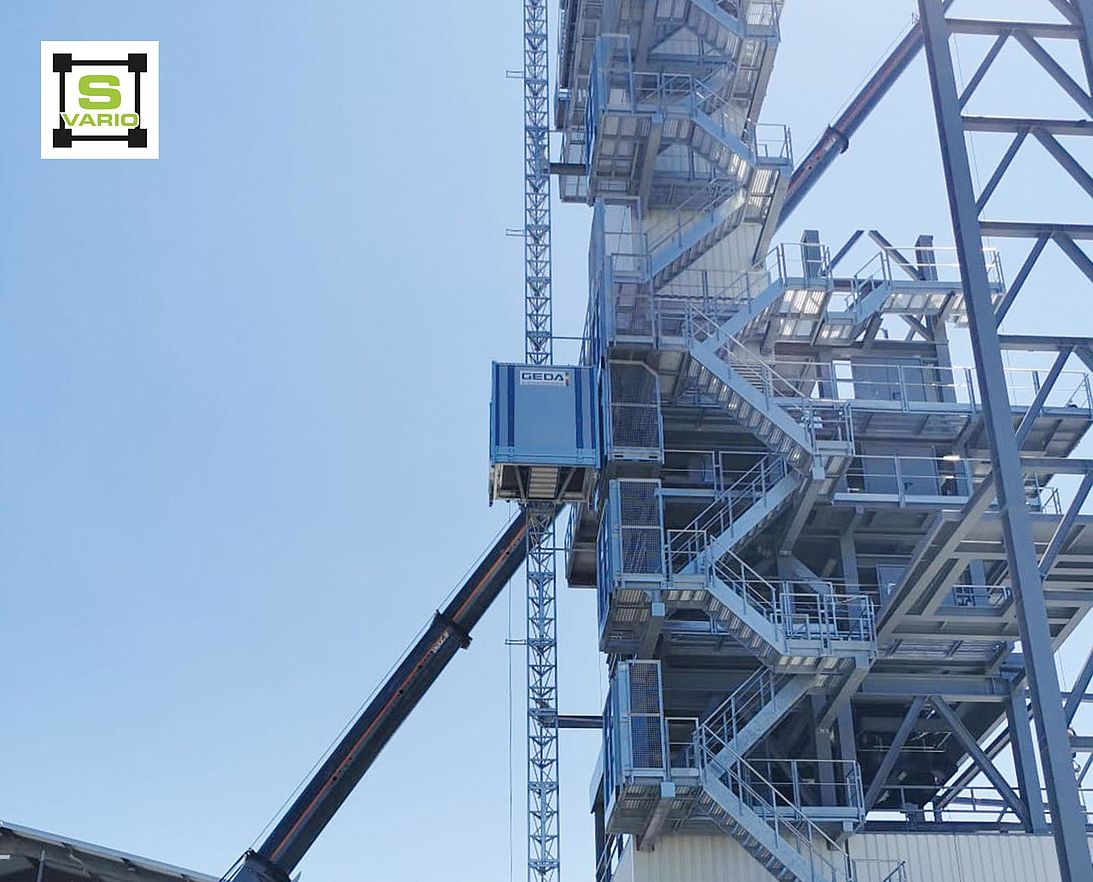

Customised specifically for industrial requirements such as maintenance and repair work on asphalt mixing plants or cement works, the GEDA Multilift P12 P passenger and materials hoist can transport up to 1,500 kg or 12 passengers to a height of 130 m. It therefore combines all the benefits of the proven GEDA Multilift range in a permanently installed hoist solution.

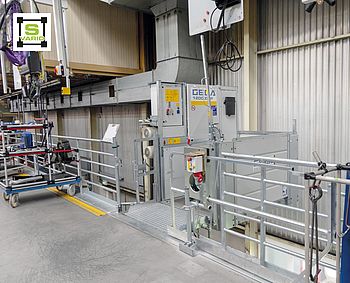

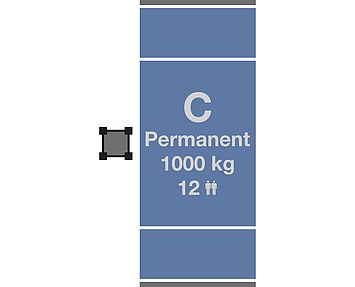

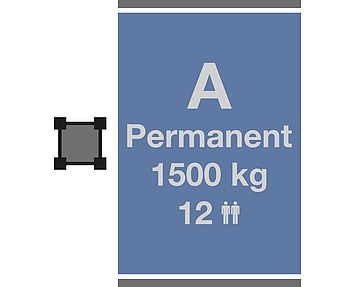

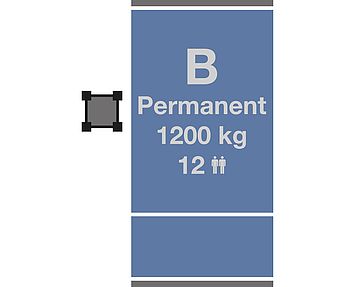

The GEDA Multilift P12 P can be controlled from all loading and unloading points, the car and also the ground station. The three different versions of the platform give it the flexibility to be adapted to the conditions on site.

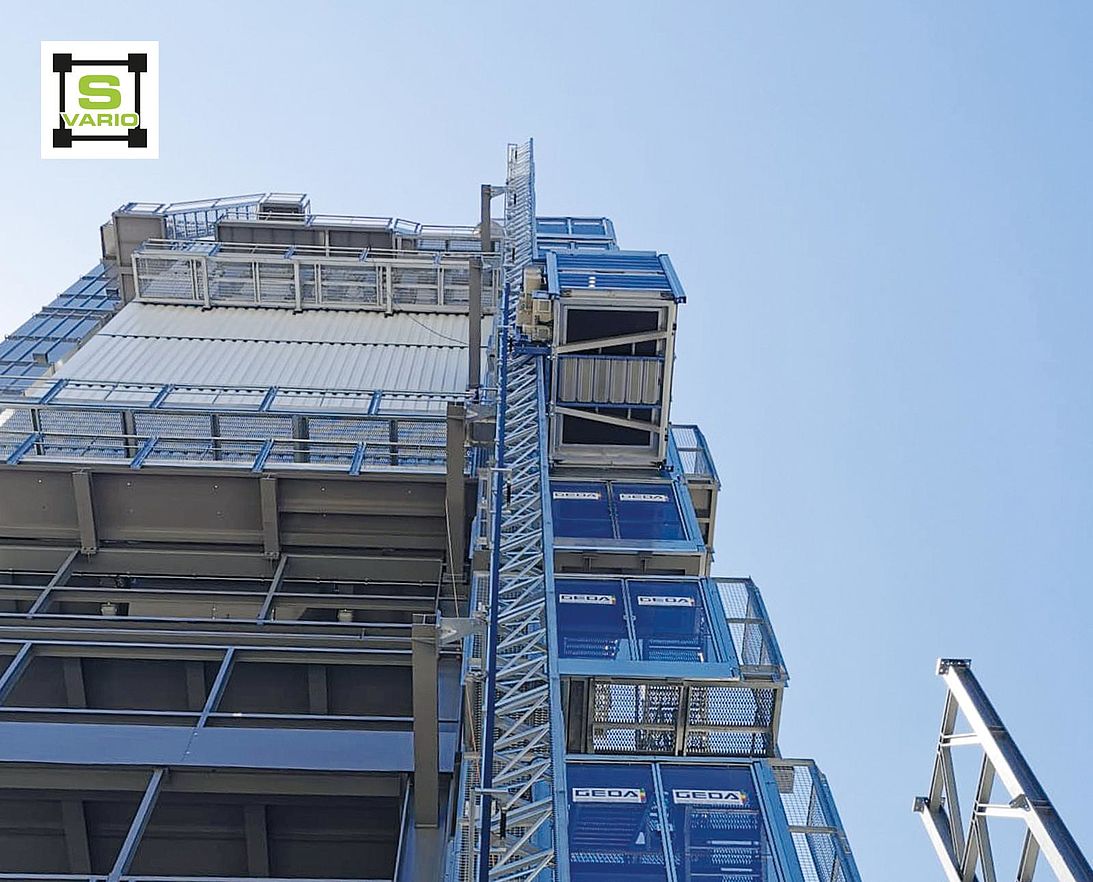

Despite the high load capacity, the GEDA Multilift P12 P is guided by only one mast from the GEDA SVARIO-MAST system which only exerts low anchoring forces on the façade structure.

The automatic lubrication device ensures significantly lower wear and tear on the gear rack and pinion is a standard feature of the GEDA Multilift P12 P. The break-off safety for the flat cable is included in the delivery. If the cable gets caught, a limit switch prevents damage to the trailing cable.


prev
next
Product highlights
Automatic lubrication device standard

The automatic lubrication system reduces maintenance costs.

Tear off securing for flat cable standard

Limit switch to prevent trailing cable rupture.

GEDA POWER GREASE

The GEDA POWER GREASE range comprises four lubricants which cover all GEDA machine types, applications and temperature ranges.



Technical Data Refresh
Cargo Persons and material
Mast system GEDA SVARIO-MAST
Load capacity (material) 1500 kg
Load capacity (persons) 12 Persons
Lifting height 130 m
Lifting speed 40 m/min
Power supply 15 kW / 400 V / 50 Hz / 32 A
default_grey
Appropriate accessories
prev
next
Set of mast ties line blue
Set of mast ties
GEDA POWER GREASE 1000 Standard cartridge line blue
GEDA POWER GREASE 1000 Standard cartridge
Hand winch with support line blue
Hand winch with support
Stop bar line blue
Stop bar
Jack ring for crane line blue
Jack ring for crane

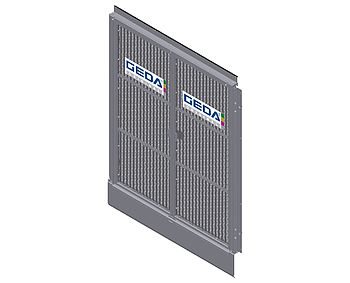

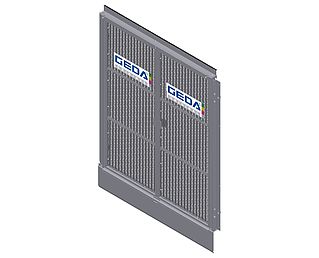

High & closed landing level safety gate (permanent) line blue
High & closed landing level safety gate (permanent)
Floor and wall tie line blue
Floor and wall tie
Trailing cable guide line blue
Trailing cable guide
Set of mast ties line blue
Set of mast ties
GEDA POWER GREASE 1000 Initial lubrication set line blue
GEDA POWER GREASE 1000 Initial lubrication set
GEDA VARIO-MAST line blue
GEDA VARIO-MAST

Know-how in use To the References

prev
next

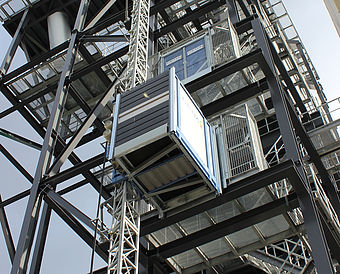

    Asphalt mixing plant Bachhausen
    line orange
    Asphalt mixing plant Bachhausen de

    GEDA MULTILIFT P12 P

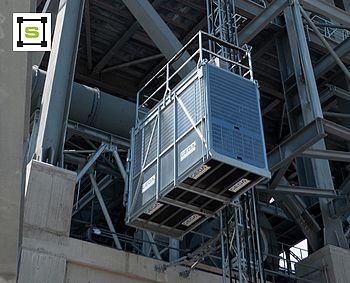

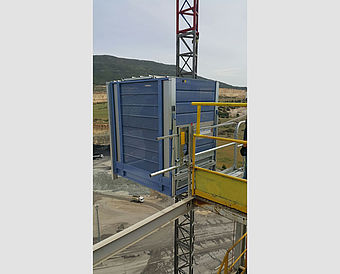

    Cement plant Gaziantep
    line orange
    Cement plant Gaziantep tr

    GEDA MULTILIFT P12 P

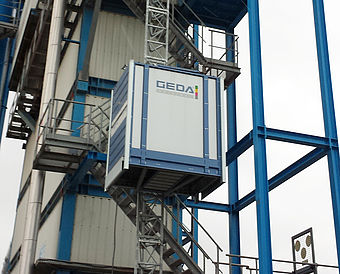

    Asphalt mixing plant Enrobes Alpines Poste
