GEDA MULTILIFT P18

Compare

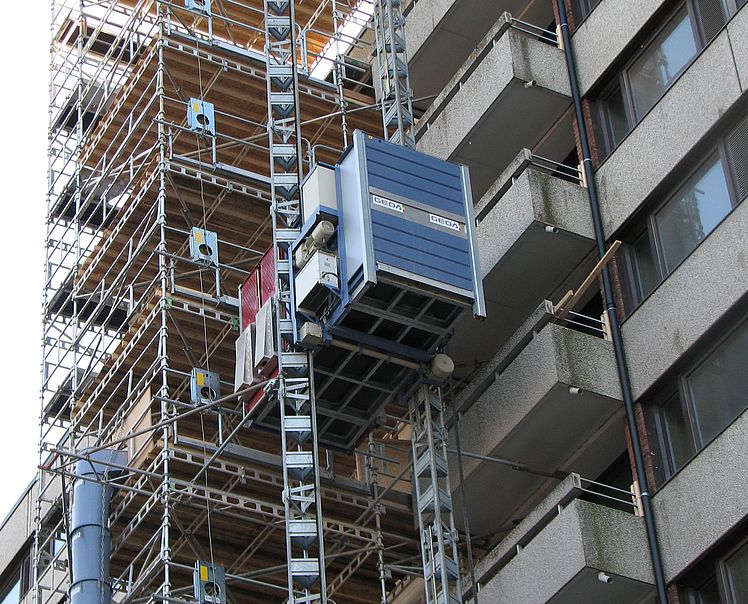

The tried-and-tested know-how of the entire GEDA Multilift range was included in the development of the GEDA Multilift P18. The GEDA Multilift P18 consequently features a completely pre-installed base unit, consisting of the car, enclosure, space-saving flat cable bin and drive. This makes long installation times a thing of the past, and the mast elements can be set up on site immediately – directly from the car.

The GEDA Multilift P18 also has a footprint of only a few square metres. Two different platform variants with different load capacities allow the GEDA Multilift P18 to be flexibly adapted to the requirements on site. The enormous loading volume permits transport even of particularly heavy and bulky goods, such as plasterboard for interior construction work.

The GEDA Multilift P18 has a load capacity of 2200 kg or 25 passengers and a lifting speed of 40 m/min. The two-mast system ensures stable travelling up to a height of 150 m.

GEDA also scores with the innovative flat cable system. The flat cable conveyor ensures that the cable always remains taut in the flat cable bin, even in strong winds, avoiding the dreaded corkscrew effect.


prev
next
Product highlights
Easy mast-installation

Easy installation of the lightweigth mast sections form the car.

Pre-selection

Level pre-selection in the car and at all levels.

GEDA Corrosion Protection

The new GEDA all-round protection provides protection from corrosion and its consequential damage, maintains the functionality of components and extends their operating life.

Automatic lubrication device standard

The automatic lubrication system reduces maintenance costs.

Tear off securing for flat cable standard

Limit switch to prevent trailing cable rupture.



Technical Data Refresh
Cargo Persons and material
Mast system GEDA UNI-X-MAST
Load capacity (material) 2200 kg
Load capacity (persons) 25 Persons
Lifting height 150 m
Lifting speed 40 m/min
Power supply 22.6 kW / 380 V - 480 V / 50 Hz - 60 Hz / 32 A - 63 A
default_grey
Product variants for each application
Appropriate accessories
prev
next
Landing level safety gate "Comfort" line blue
Landing level safety gate "Comfort"
Landing level safety gate "Standard" line blue
Landing level safety gate "Standard"
Set of extension tubes line blue
Set of extension tubes
Landing level safety gate "Standard-Basic" line blue
Landing level safety gate "Standard-Basic"
GEDA UNI-X-MAST line blue
GEDA UNI-X-MAST
Set of mast ties line blue
Set of mast ties
GEDA POWER GREASE 1000 Standard cartridge line blue
GEDA POWER GREASE 1000 Standard cartridge
Stop bar line blue
Stop bar
Jack ring for crane line blue
Jack ring for crane
Floor and wall tie line blue
Floor and wall tie
High & closed landing level safety gate line blue
High & closed landing level safety gate
High & closed landing level safety gate line blue
High & closed landing level safety gate
Trailing cable guide line blue
Trailing cable guide
GEDA POWER GREASE 1000 Initial lubrication set line blue
GEDA POWER GREASE 1000 Initial lubrication set
Landing level safety gate "VARIO" line blue
Landing level safety gate "VARIO"
Landing level safety gate "VARIO +" line blue
Landing level safety gate "VARIO +"
Landing level safety gate "VARIO LITE" line blue
Landing level safety gate "VARIO LITE"
Sheet metal panel line blue
Sheet metal panel
Sheet metal panel line blue
Sheet metal panel

Know-how in use To the References

prev
next
    Port construction
    line green
    Port construction dk

    GEDA MULTILIFT P18

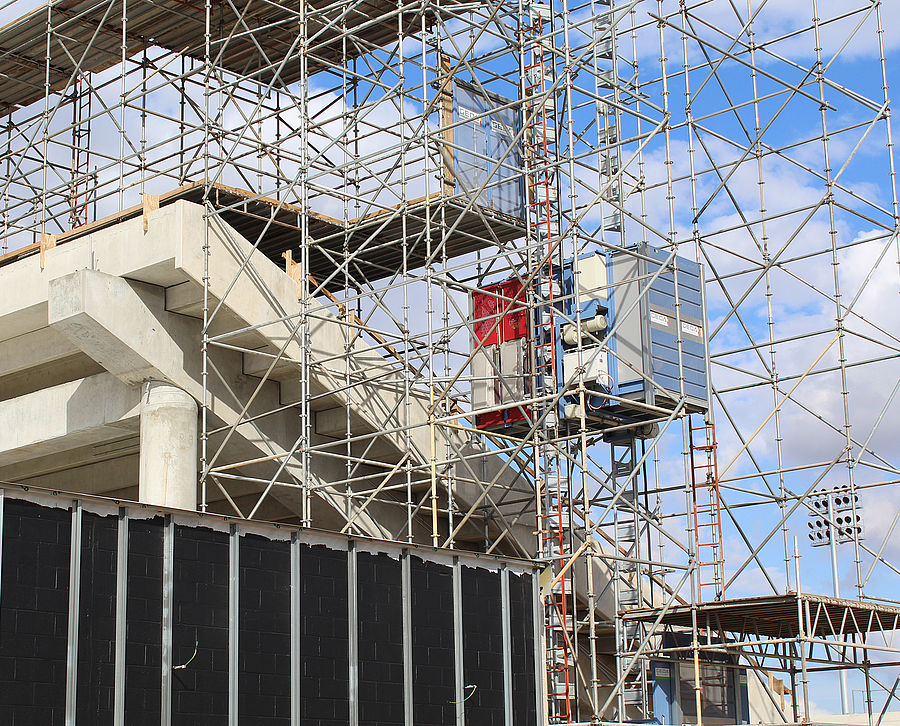

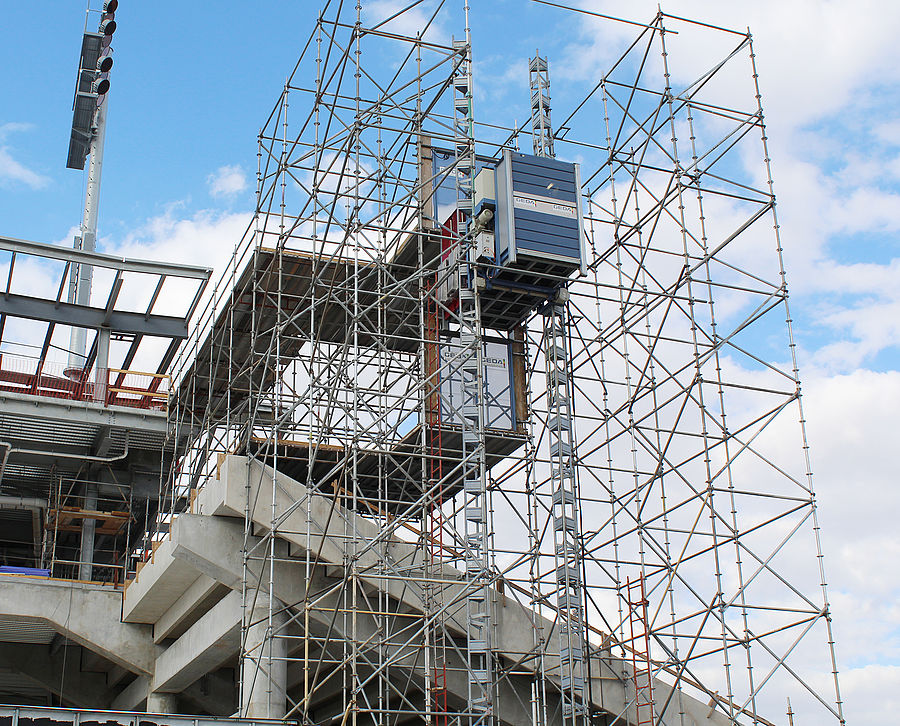

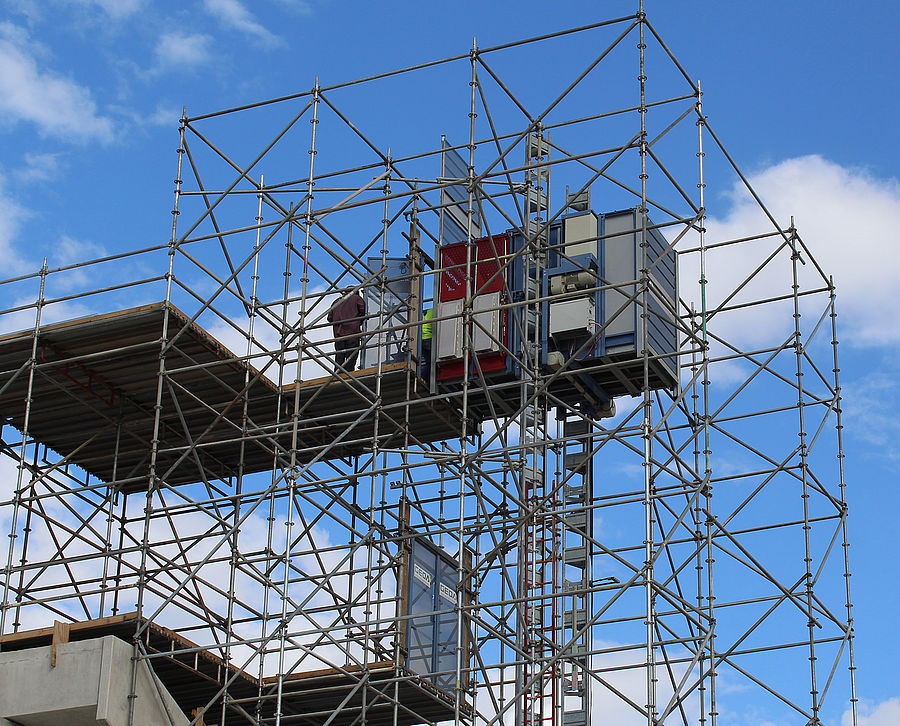

    Football stadium Katy (Texas)
