GEDA 1200 Z/ZP

Compare

The large loading capacity of the GEDA 1200 Z/ZP transport platform allows quick and safe transport even of bulky and heavy construction materials.

With two separate controls, the GEDA 1200 Z/ZP can be used simply as a material hoist with a lifting speed of 24 m/min or as a transport platform for passengers and materials with a lifting speed of 12 m/min.

Various platform modules with different load capacities and sizes offer the right solution for any area of application and any challenge at a construction site.

Despite the high load capacity of up to 1500 kg, the transport platform is guided on only one mast of the proven GEDA VARIO-MAST system. With an adapter mast, the GEDA 1200 Z/ZP can also be operated with the GEDA SVARIO-MAST.


prev
next
Product highlights
GEDA Corrosion Protection

The new GEDA all-round protection provides protection from corrosion and its consequential damage, maintains the functionality of components and extends their operating life.

Automatic lubrication device standard

The automatic lubrication system reduces maintenance costs.

Diagnostic system

The useful diagnostic system provides quicker and easier identification of errors.

Useful scaffold bracket

A special bracket enables hazard-free transport of longer scaffold elements.

Complies with EN 16719

GEDA is already perfectly positioned for implementing the requirements of the new EN 16719 standard, which will from now on apply to transport platforms.

GEDA POWER GREASE

The GEDA POWER GREASE range comprises four lubricants which cover all GEDA machine types, applications and temperature ranges.



Technical Data Refresh
Cargo Persons and material
Mast system GEDA VARIO-MAST / GEDA SVARIO-MAST
Load capacity (material) 1500 kg
Load capacity (persons) 7 Persons
Lifting height 130 m
Lifting speed 12 m/min / 24 m/min
Power supply 2 x 3 kW / 6.1 kW / 400 V / 50 Hz / 32 A
default_grey
Appropriate accessories
prev
next
Landing level safety gate "Comfort" line blue
Landing level safety gate "Comfort"
Electric module line blue
Electric module
Landing level safety gate "Standard" line blue
Landing level safety gate "Standard"
Extension cord line blue
Extension cord
Landing level safety gate "Standard-Basic" line blue
Landing level safety gate "Standard-Basic"
Extension cord 20 m line blue
Extension cord 20 m

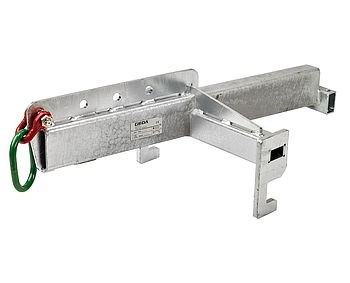

Jack ring for crane line blue
Jack ring for crane

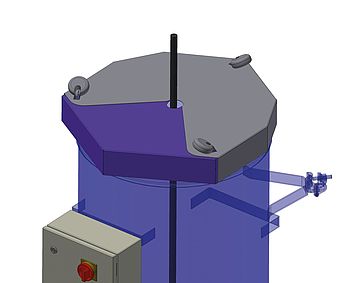

Cable bin cover line blue
Cable bin cover

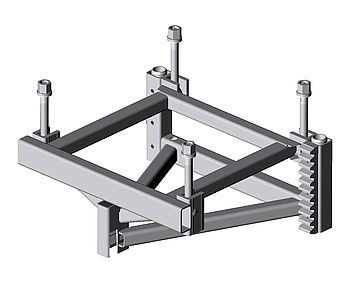

Adapter mast line blue
Adapter mast

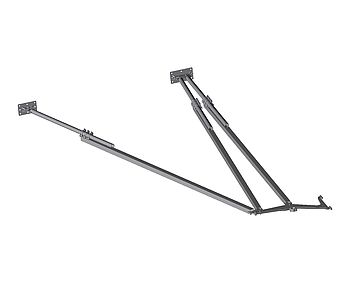

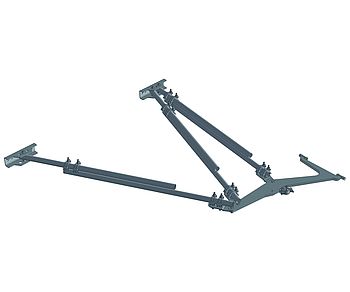

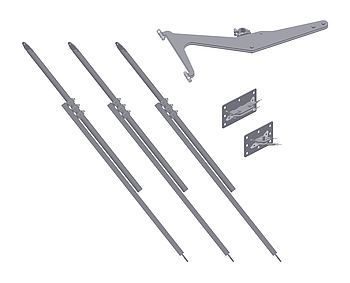

Set of mast ties line blue
Set of mast ties

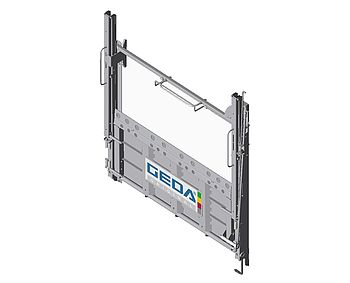

Ramp line blue
Ramp
GEDA POWER GREASE 1000 Standard cartridge line blue
GEDA POWER GREASE 1000 Standard cartridge
Labels "Brake indicator" line blue
Labels "Brake indicator"
Hand winch with support line blue
Hand winch with support
Manual grease gun line blue
Manual grease gun
Refill gun line blue
Refill gun
Low temperature limitation line blue
Low temperature limitation
Jack ring for crane line blue
Jack ring for crane
Floor and wall tie line blue
Floor and wall tie

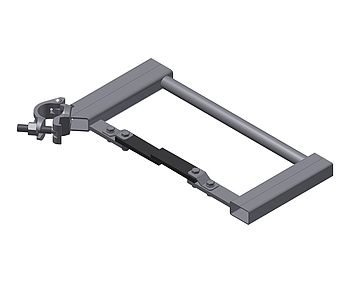

Trailing cable guide line blue
