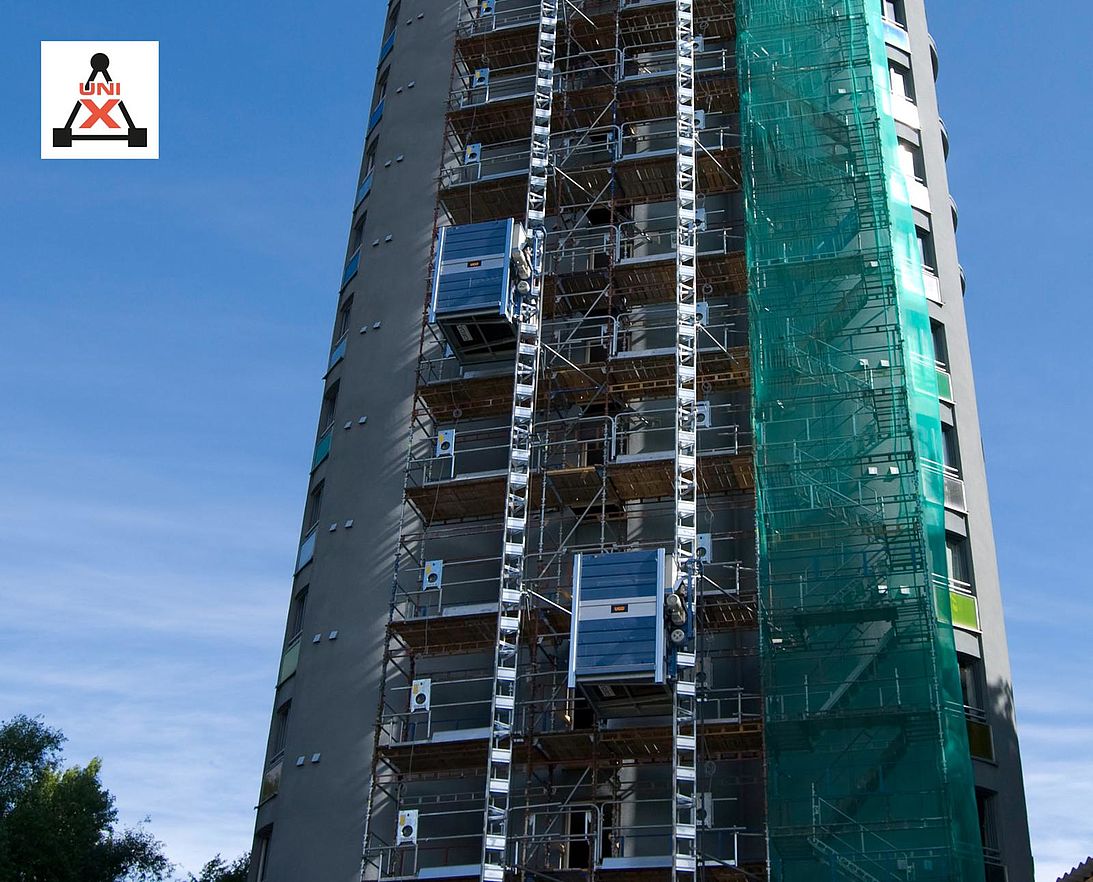

GEDA MULTILIFT P6

Compare

The Multilift Comfort range can be used as enclosed hoist for people and loads all around the world without any restrictions. It has been designed to correspond exactly to the international regulations (e.g. EN 12159).

You may exchange the standard automatic control with the optional, even more user friendly level pre-selection control. For safety reasons the 2.5m high enclosure is electrically and mechanically blocked. This means the door of the enclosure can only be opened when the hoist is in the base unit.

The Multilift Standard range is in no way technically inferior to the Comfort series, but its use depends on the regulations in the respective countries it is used. The hoists are delivered with an electrically surveyed low enclosure. This means that you cannot make the platform leave the base unit or that the platforms stops when a door is opened. In order to eliminate further risks, an underrun protection has been integrated. In case there are bulky goods or people below the unit the limit switch of the underrun protection will be activated and the device will stop immediately.

Assembly is not carried out from the roof. The flap integrated in the roof as well as the assembly guard flap in the interior of the car make it possible to comfortably assemble and dismantle the hoist from the platform. All this can be done fast and safely.









Logo GEDA Central
GEDA CENTRAL is an intelligent online-platform for digital services for your GEDA hoists
Learn more Register

prev
next
Product highlights
GEDA UNI-X-MAST System

An ingenious system: can be used on all GEDA rack and pinion hoists from 300 kg to 2,200 kg load capacity.

GEDA Corrosion Protection

The new GEDA all-round protection provides protection from corrosion and its consequential damage, maintains the functionality of components and extends their operating life.

Automatic lubrication device standard

The automatic lubrication system reduces maintenance costs.

Tear off securing for flat cable standard

Limit switch to prevent trailing cable rupture.

GEDA POWER GREASE

The GEDA POWER GREASE range comprises four lubricants which cover all GEDA machine types, applications and temperature ranges.



Technical Data Refresh
Cargo Persons and material
Mast system GEDA UNI-X-MAST
Load capacity (material) 650 kg
Load capacity (persons) 6 Persons
Lifting height 100 m
Lifting speed 12 m/min / 24 m/min
Power supply 3 kW / 6.1 kW / 400 V / 50 Hz / 16 A
Platform dimension 1.4 m x 1.7 m x 2.1 m
Appropriate accessories
prev
next
Set of extension tubes line blue
Set of extension tubes
Landing level safety gate "Comfort" line blue
Landing level safety gate "Comfort"
Landing level safety gate "Standard" line blue
Landing level safety gate "Standard"
Landing level safety gate "Standard-Basic" line blue
Landing level safety gate "Standard-Basic"
GEDA UNI-X-MAST line blue
GEDA UNI-X-MAST
Set of mast ties line blue
Set of mast ties
GEDA POWER GREASE 1000 Standard cartridge line blue
GEDA POWER GREASE 1000 Standard cartridge
Trailing cable guide line blue
Trailing cable guide
Stop bar line blue
Stop bar
Floor and wall tie line blue
Floor and wall tie
High & closed landing level safety gate line blue
High & closed landing level safety gate
High & closed landing level safety gate line blue
High & closed landing level safety gate
Jack ring for crane line blue
Jack ring for crane
GEDA POWER GREASE 1000 Initial lubrication set line blue
GEDA POWER GREASE 1000 Initial lubrication set
Sheet metal panel line blue
Sheet metal panel
Sheet metal panel line blue
Sheet metal panel
Landing level safety gate "Flexy" line blue
Landing level safety gate "Flexy"

Know-how in use To the References

prev
next

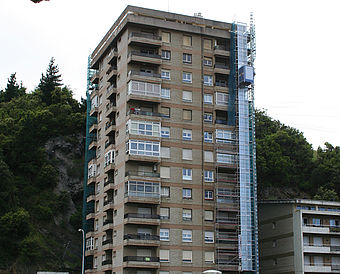

    Casa de apartamentos
    line green
    Casa de apartamentos es

    GEDA MULTILIFT P6

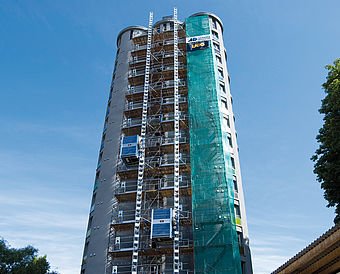

    Dorm "Grünerlokka"
