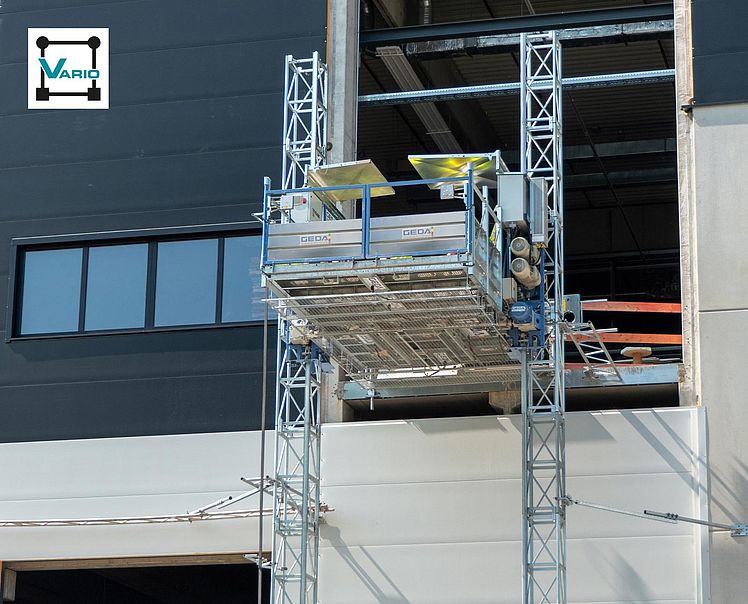

GEDA 3700 Z/ZP

Compare

The GEDA 3700 Z/ZP transport platform fully meets the market requirements for higher load capacities and larger platforms. Four different platform variants with a maximum load capacity of 3700 kg allow the transport platform to be used in a wide range of on-site conditions. As a material hoist with a load capacity of up to 3700 kg or as a transport platform for passengers and materials (max. seven people), the GEDA 3700 Z/ZP is a two-in-one-device.

The transport platform is a strong partner for heavy loads and efficient working and transports loads quickly and safely up to a height of 200 metres, with a speed of 12 m/min in passenger mode and 36 m/min in material mode.

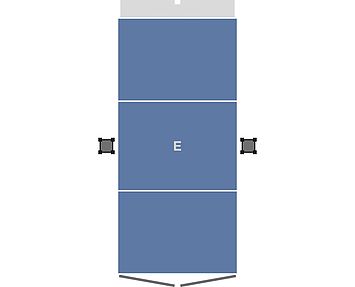

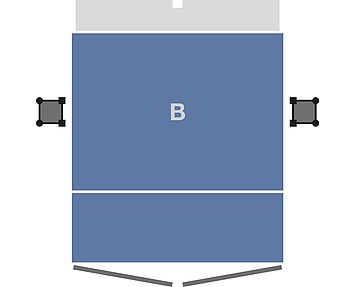

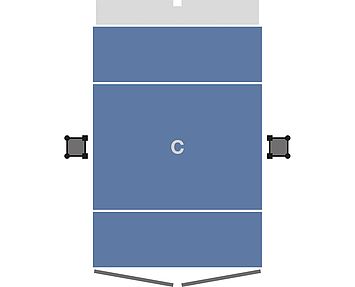

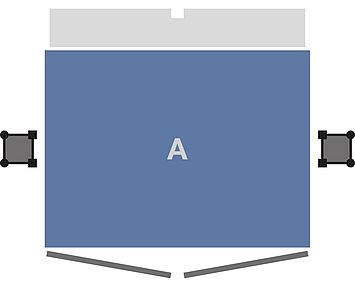

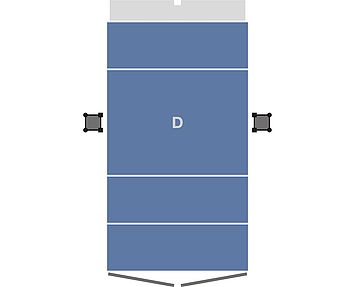

The most important benefit of the GEDA 3700 Z/ZP, however, is the large platform. The four different variants with different load capacities are particularly suitable for transporting very bulky and heavy goods.









Logo GEDA Central
GEDA CENTRAL is an intelligent online-platform for digital services for your GEDA hoists
Learn more Register

prev
next
Product highlights
GEDA Corrosion Protection

The new GEDA all-round protection provides protection from corrosion and its consequential damage, maintains the functionality of components and extends their operating life.

Automatic lubrication device standard

The automatic lubrication system reduces maintenance costs.

Tear off securing for flat cable standard

Limit switch to prevent trailing cable rupture.

Useful scaffold bracket

A special bracket enables hazard-free transport of longer scaffold elements.

Complies with EN 16719

GEDA is already perfectly positioned for implementing the requirements of the new EN 16719 standard, which will from now on apply to transport platforms.

GEDA POWER GREASE

The GEDA POWER GREASE range comprises four lubricants which cover all GEDA machine types, applications and temperature ranges.



Technical Data Refresh
Cargo Persons and material
Mast system GEDA VARIO-MAST / GEDA SVARIO-MAST
Load capacity (material) 3700 kg
Load capacity (persons) 7 Persons
Lifting height 200 m
Lifting speed 12 m/min / 36 m/min
Power supply 28 kW / 400 V / 50 Hz / 63 A
default_grey
Appropriate accessories
prev
next
Set of fixing brackets for individual transport frame line blue
Set of fixing brackets for individual transport frame

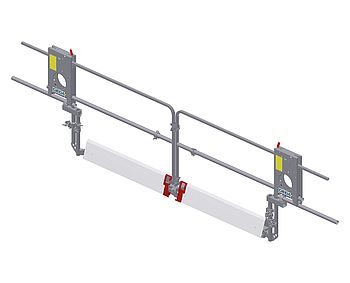

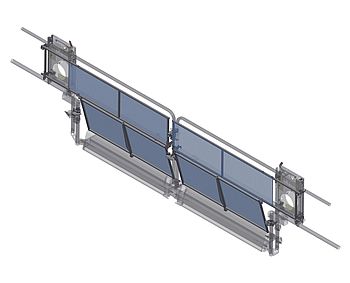

Landing level safety gate "Comfort Maxi" line blue
Landing level safety gate "Comfort Maxi"
Hand winch with support line blue
Hand winch with support
Floor and wall tie line blue
Floor and wall tie
GEDA VARIO-MAST line blue
GEDA VARIO-MAST
Electric module line blue
Electric module

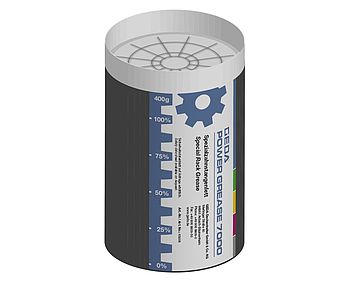

GEDA POWER GREASE 7000 Special cartridge line blue
GEDA POWER GREASE 7000 Special cartridge
GEDA POWER GREASE 7000 Initial lubrication set line blue
GEDA POWER GREASE 7000 Initial lubrication set
GEDA POWER GREASE ARCTIC Initial lubrication set line blue
GEDA POWER GREASE ARCTIC Initial lubrication set
GEDA POWER GREASE ARCTIC Special cartridge line blue
GEDA POWER GREASE ARCTIC Special cartridge
Sheet metal panel line blue
Sheet metal panel
Roof line blue
Roof
Anti-smashing-device line blue
Anti-smashing-device

Know-how in use To the References

prev
next

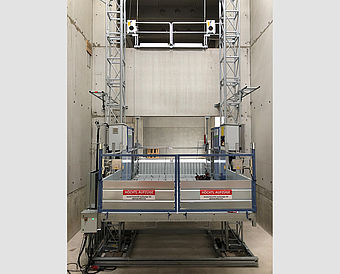

    Car manufacturer plant
    line green
    Car manufacturer plant de

    GEDA 3700 Z/ZP

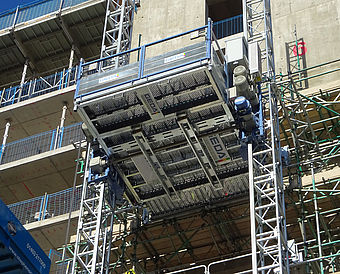

    Appartement and office building Leeds
