8 Products for: Transport platforms for persons and material

GEDA Transport Platform for Personnel and Materials – Your Professional Allrounder

In contrary to conventional material lifts with which the transportation of persons is strictly prohibited, GEDA transport platforms for personnel and materials allow people to be transported to the upper levels of a scaffolding. For this use, the operating mode must be switched to “transport platform”. The lifting speed is then reduced, and a safe transportation of personnel is guaranteed.

The GEDA transport platform can be installed temporarily or permanently. To ensure the right installation for your construction site, do not hesitate to contact our service staff for more information.













Select view:galerie Gallery view    list List view
Temporary Installations
GEDA 300 Z/ZP

Two in one: construction hoist with 500 kg loading capacity [...]

GEDA 500 Z/ZP

Two units in one: a building hoist with a load bearing capac [...]

GEDA 1200 Z/ZP

The single mast transport platform GEDA 1200 Z/ZP represents [...]

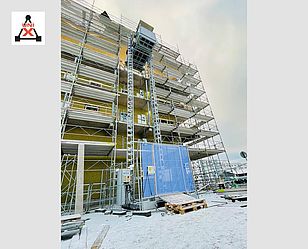

GEDA 1500 Z/ZP

The transport platform GEDA 1500 Z/ZP unites two different m [...]

GEDA 3700 Z/ZP

The tried-and-tested GEDA know-how has been incorporated int [...]

Permanent Installations

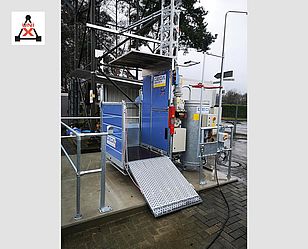

GEDA 300 ZP P

The GEDA 300 ZP P, GEDA 500 ZP P and the 1500 ZP P have turn [...]

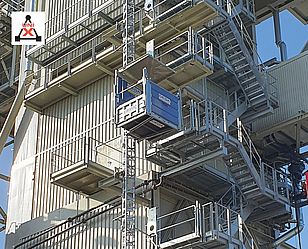

GEDA 500 ZP P

The GEDA 300 ZP P, GEDA 500 ZP P and the 1500 ZP P have turn [...]

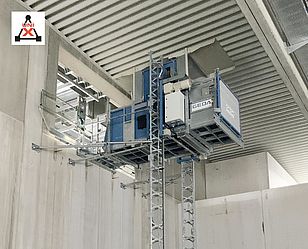

GEDA 1500 ZP P

The GEDA 300 ZP P, GEDA 500 ZP P and the 1500 ZP P have turn [...]

GEDA Transport Platform: Temporary Installations for Permanent Flexibility

For a flexible use at construction sites, GEDA temporary installations are the perfect solution. Due to innovative mounting systems, the transport platforms for personnel and materials can easily be assembled and enable various applications.

The GEDA 300 Z/ZP is ideal for installing it at sites with extreme space limitations. The personnel and material lift offers a platform dimension of 1,35 m x 0,95 m. This installation is perfect for small passing sections and driveways. The GEDA 500 Z/ZP provides the GEDA UNI-MAST system. Its advantage is an assembly directly from the transport platform up to a height of 100 m. Without using a crane, the 1,5 m mast segments can be secured with captive screws and locking nuts.

An alternative to the known and proven transport platforms with the UNI-MAST system is the GEDA 1200 Z/ZP. This model is equipped with the GEDA VARIO-MAST systems and enables a lifting height of up to 150 m. Various platform models with different carrying capacities and dimensions offer the perfect solution for every application.

Transport Platform for Heavy Loads and Personnel

The GEDA transport platform 1500 Z/ZP offers the same system. Besides a load bearing capacity of 800 kg the transport platform allows seven more people on the platform. If the transport platform is only used as a material lift, a carrying capacity of up to 2000 kg is possible.

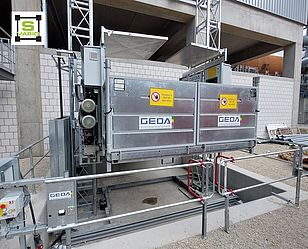

Another transport platform which was designed for extreme load bearing capacities is the GEDA 3700 Z/ZP. With a platform dimension of 5 m x 2,90 m and a maximum carrying capacity of 3700 kg or seven people (depending on the platform model), this transport platform completely fulfills the demands of higher carrying capacities!

Permanent Installations for Transport Platforms

If installations like silos or gravel plants need regular inspections and maintenance work, GEDA’s permanent installations are the perfect solution. The GEDA 300 ZP P, 500 ZP P and 1500 ZP P have proven as the best professionals for vertical lifting. With a carrying capacity of 300 kg up to 2000 kg, these lifts are best for transporting both personnel and heavy and bulky material. If permanent installations already exist, the transport platforms for personnel and material can be upgraded effortlessly and guarantee low downtimes of the plants.

If you need further assistance, do not hesitate to contact our service staff to inform you about the possible mounting and installation systems for transport platforms for personnel and materials.
